Caprice V8-350 5.7L VIN P MFI
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Diagrams
>>
Connector Views
Connector Views

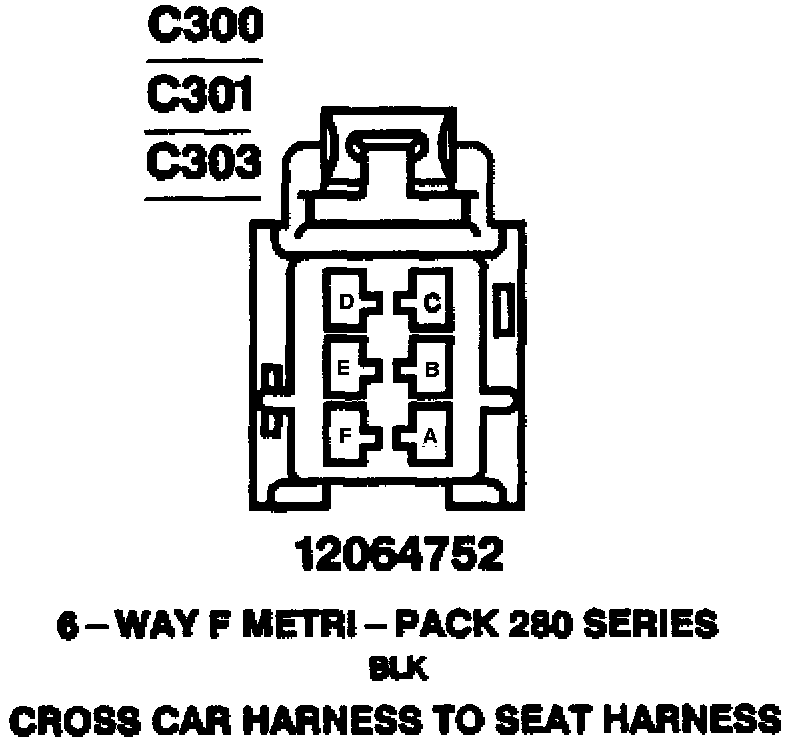

C300, C301 & C303: Cross Car Harness To Seat Harness:

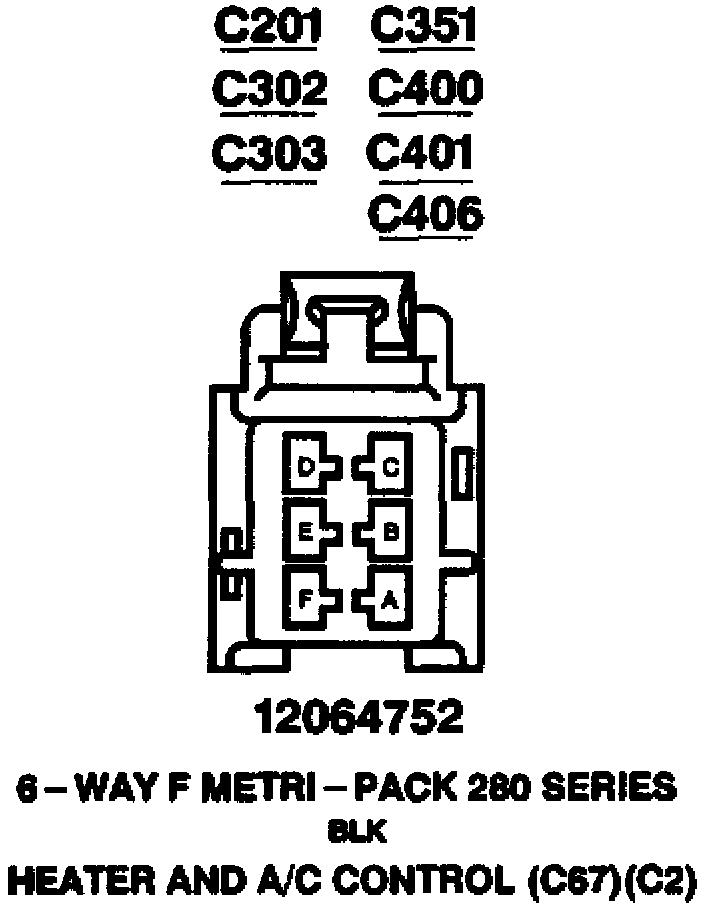

C201, C302, C303, C351, C400, C401 & C406: Heater & A/C Control (C67) (C2):
