Froward Lamps Harness

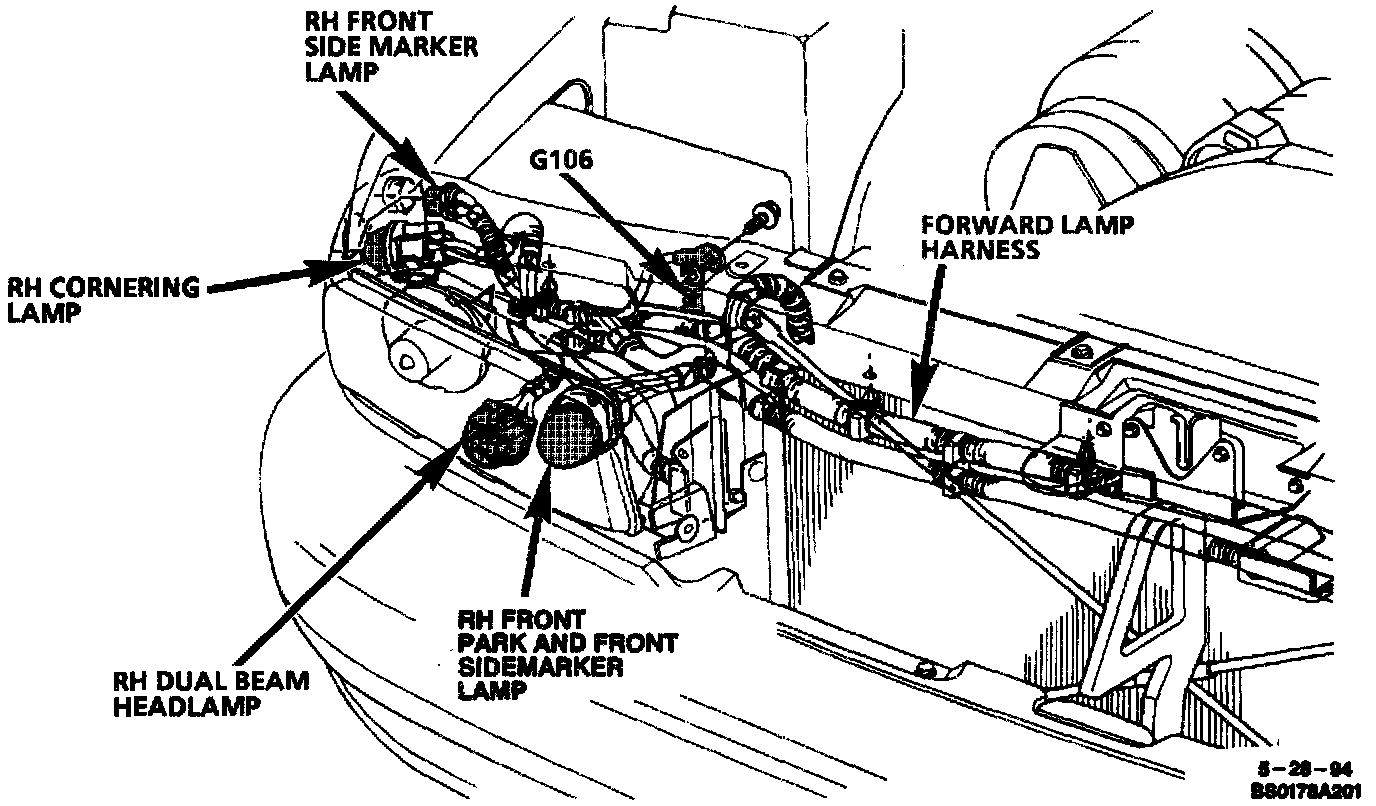

RH Forward Engine Compartment:

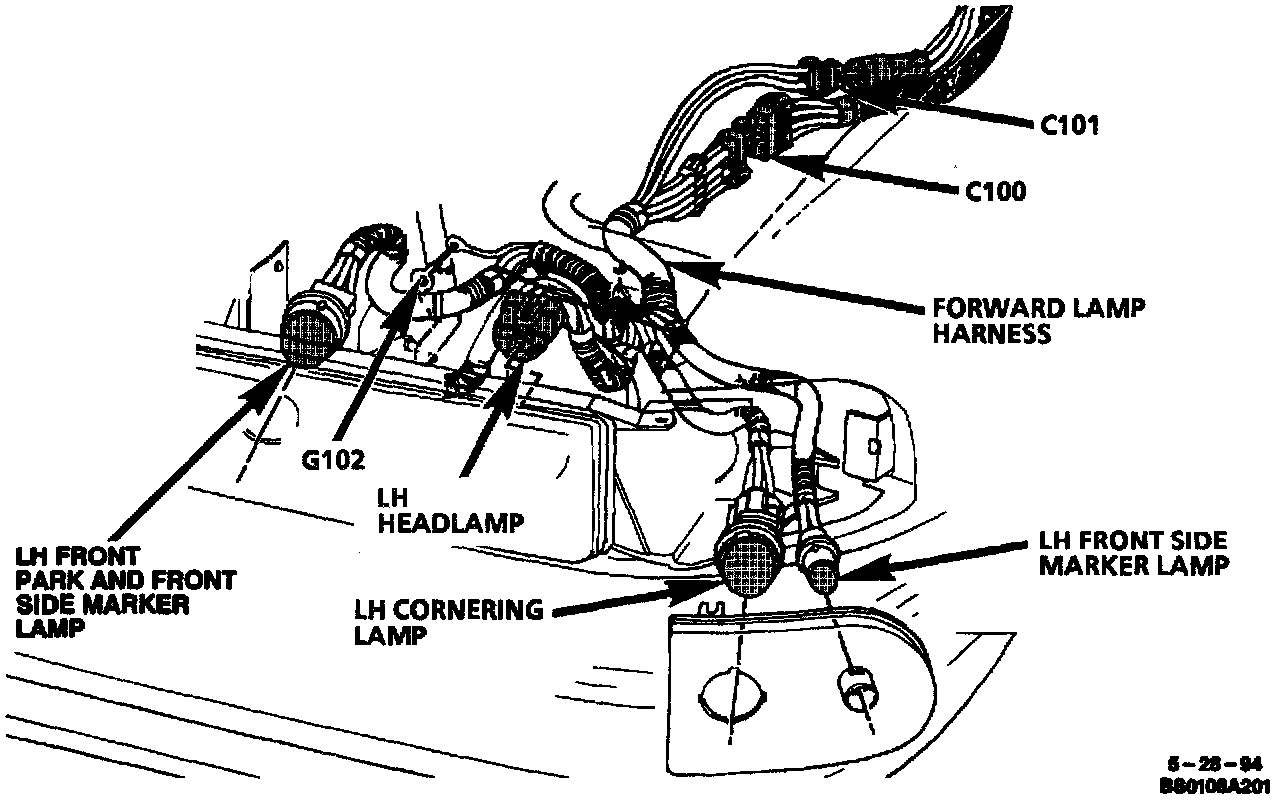

LH Forward Lamp Wiring:




Engine Compartment:




Front Of Radiator:
