Emission Controls, PWR Steering, Oil Lev, Passkey, & VSS Input

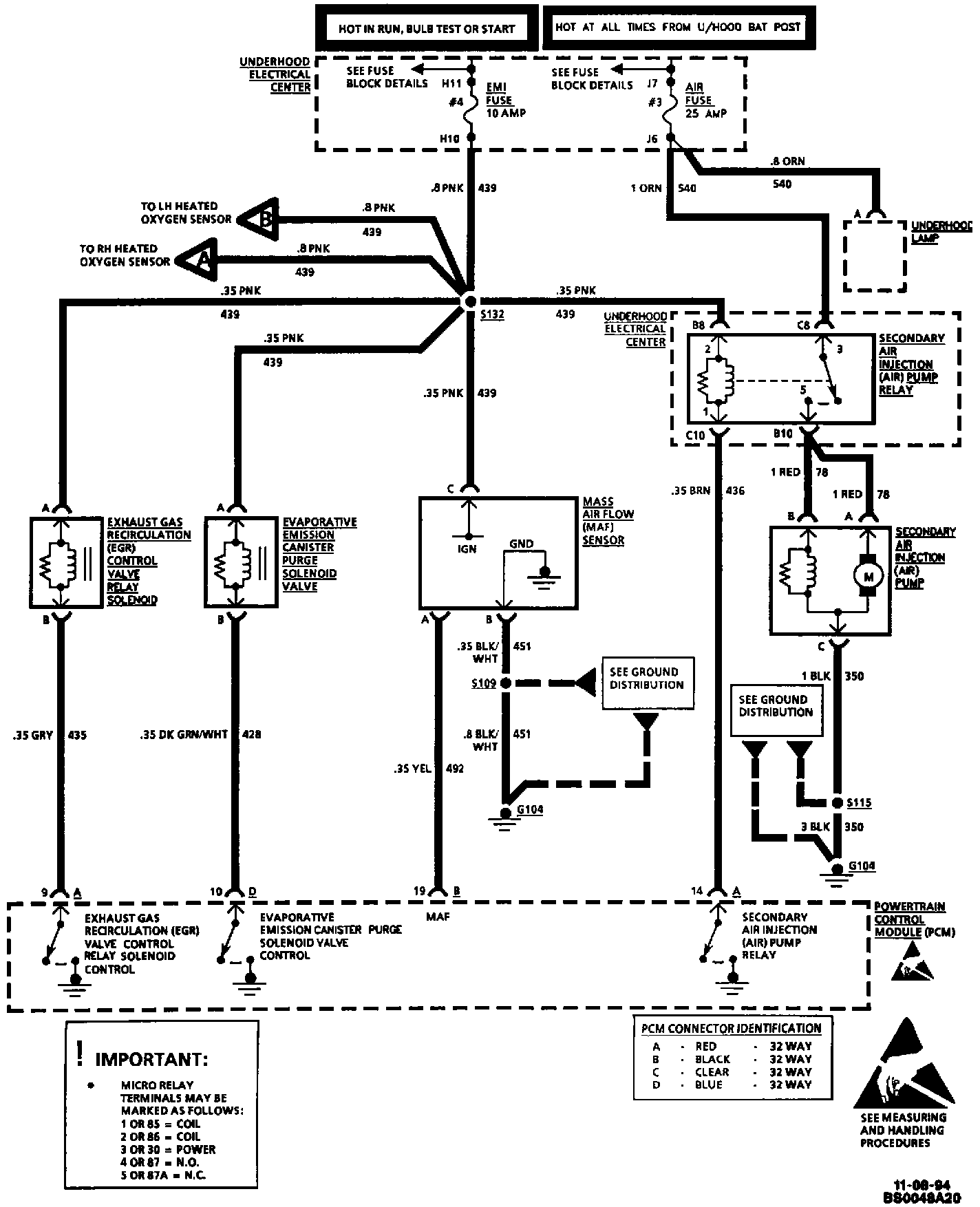

Emission Controls:

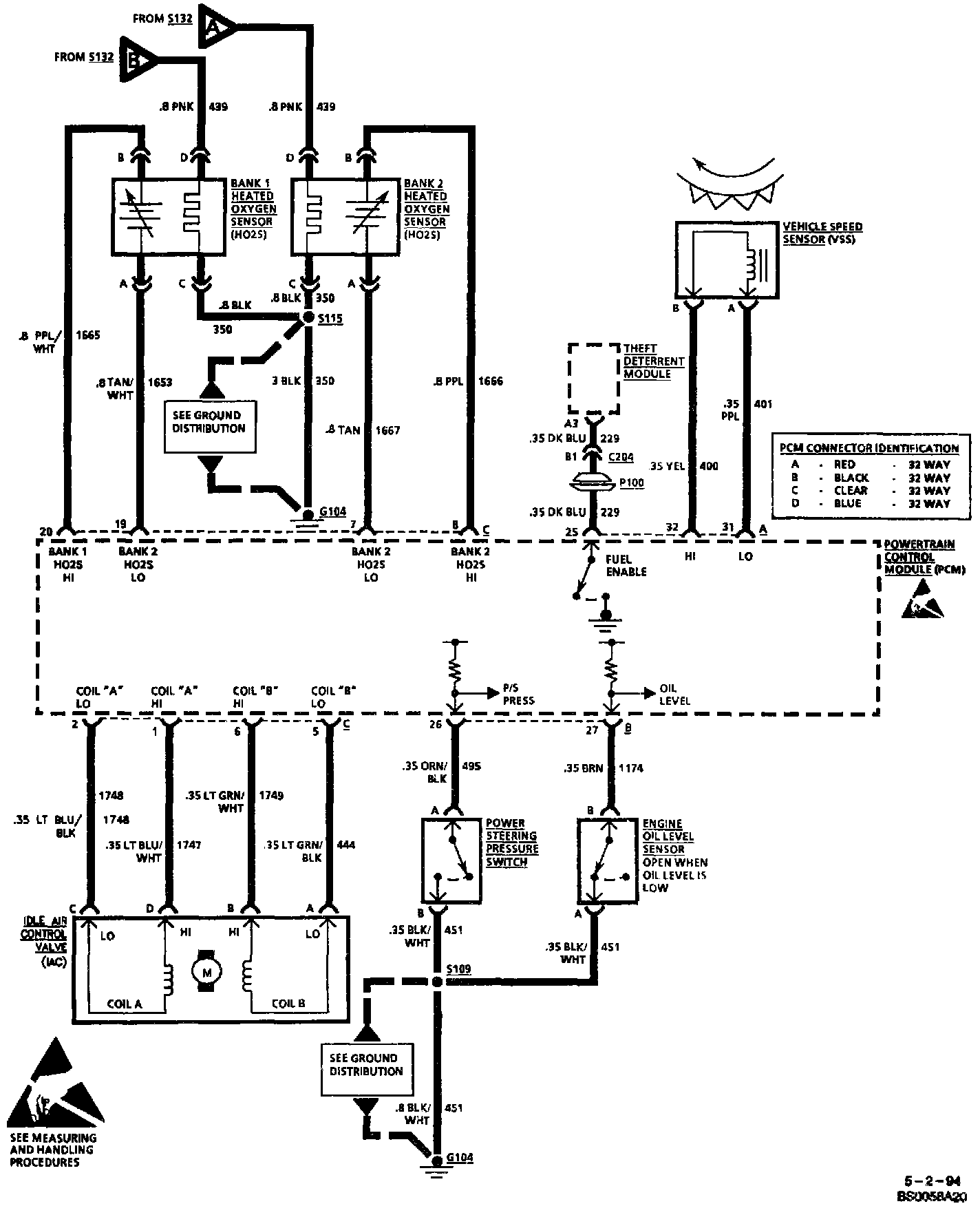

Emission Controls, Power Steering, Oil Level, Passkey And VSS Input:

This diagram is one part of the Complete set of Powertrain Wiring Diagrams located under Powertrain Management. Refer to this area if you need the accompanying diagram. Electrical Diagrams
