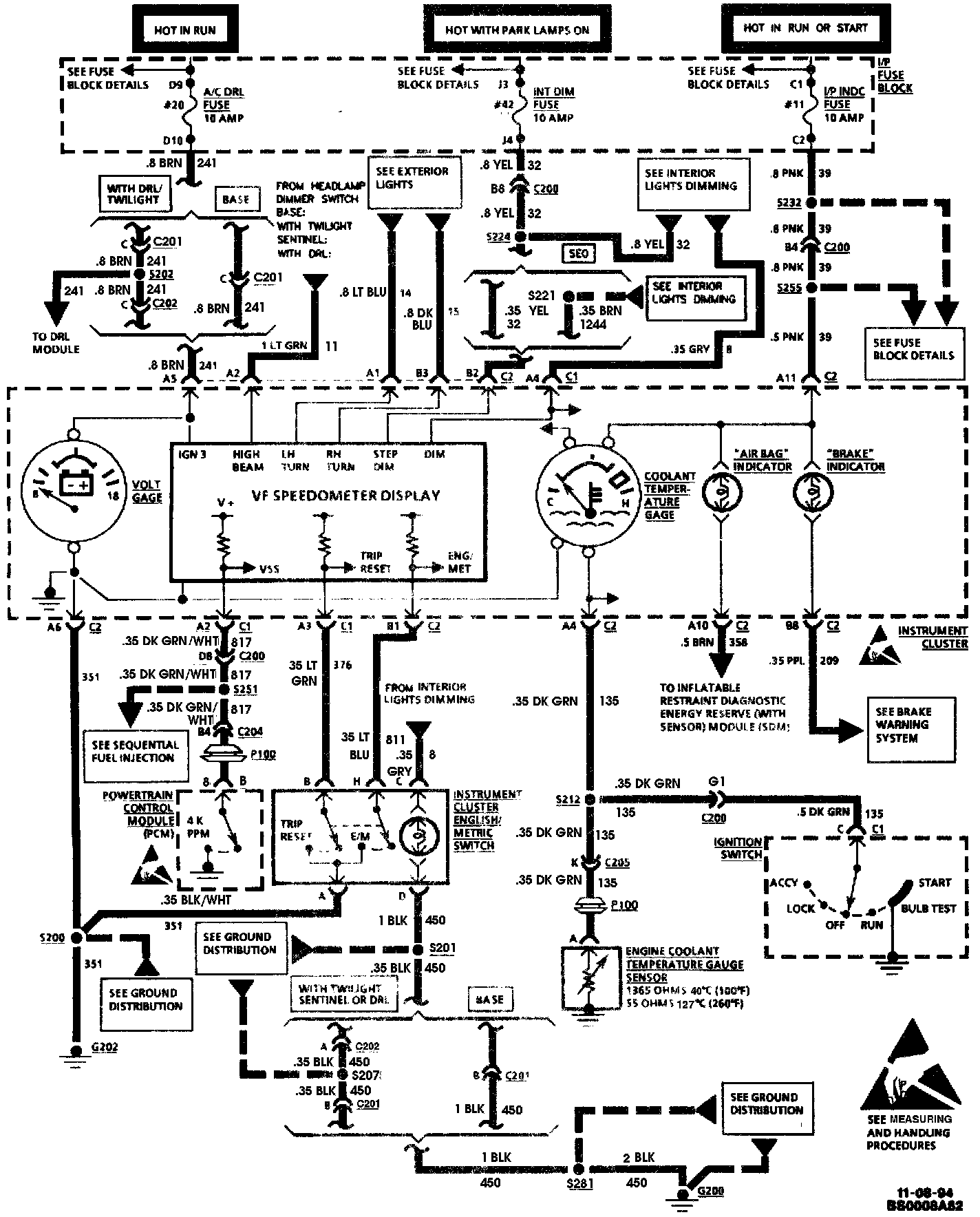

Digital Cluster

Instrument Cluster: Digital:



Instrument Cluster: Digital:



Instrument Cluster: Digital:
