Permanent Magnet Generator
Permanent Magnet Generator

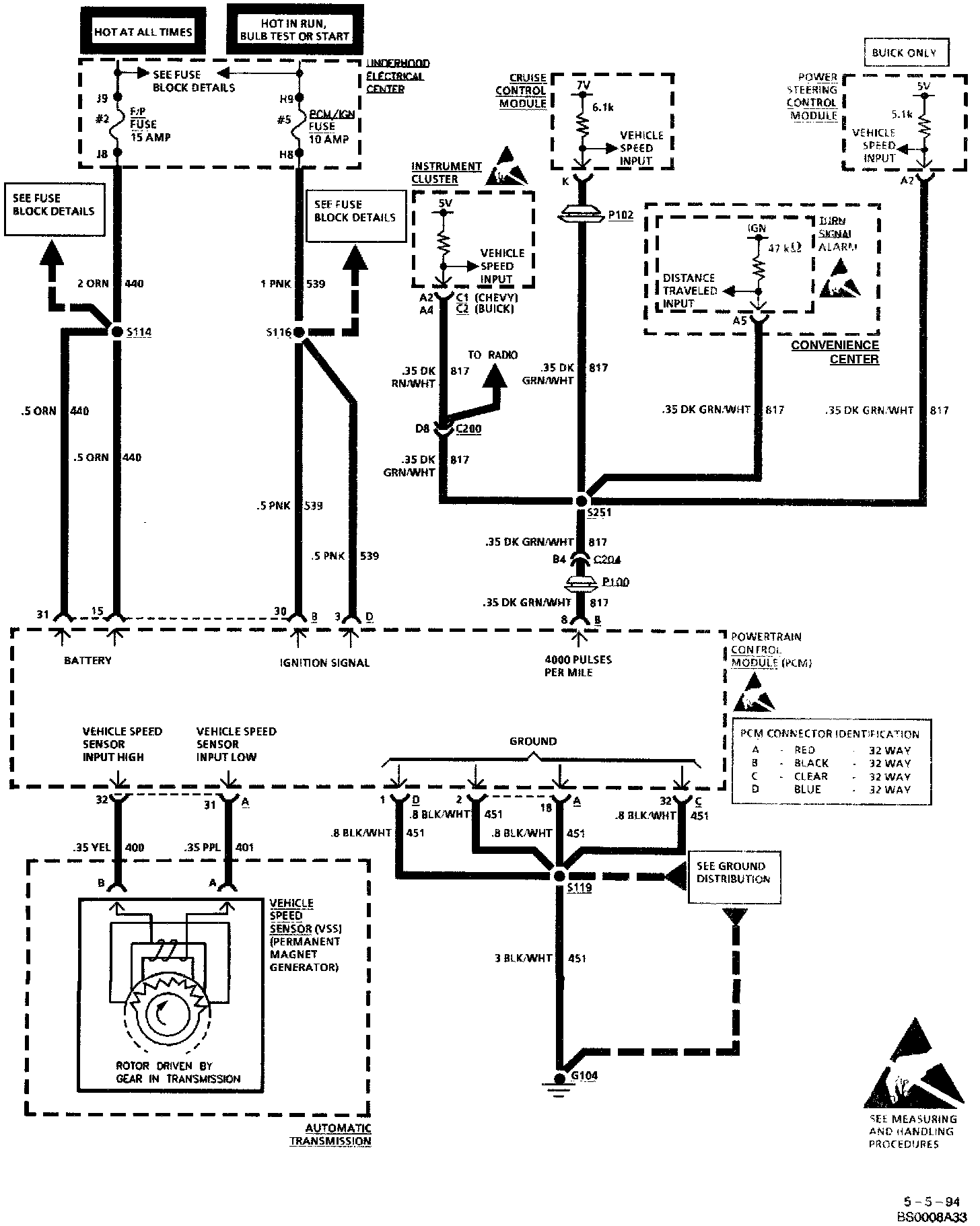

Vehicle Speed Sensor: Permanent Magnet Generator:
