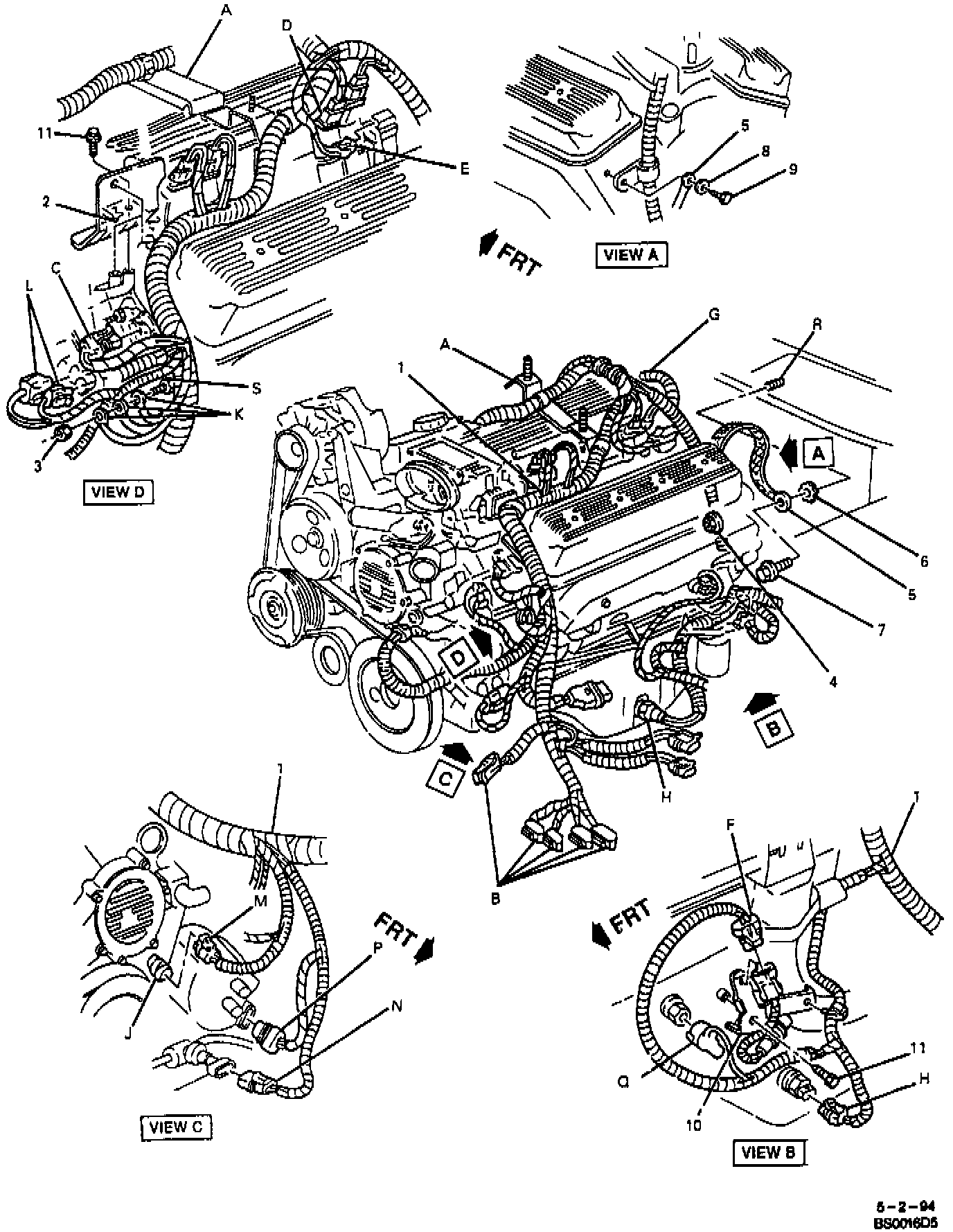

Left Side View

Left Side Engine Wiring Harness:

A. BRACKET, AIR RESONATOR
B. CONNECTOR, POWERTRAIN CONTROL MODULE
C. CONNECTOR, IGNITION MODULE ELECTRICAL
D. CONNECTOR, INJECTOR ELECTRICAL
E. CONNECTOR, EXHAUST GAS RECIRCULATION SOLENOID VALVE ELECTRICAL
F. CONNECTOR, OXYGEN SENSOR ELECTRICAL
G. CONNECTOR, OIL PRESSURE SENSOR ELECTRICAL
H. CONNECTOR, OIL LEVEL SENSOR ELECTRICAL
J. CONNECTOR, ENGINE COOLANT TEMPERATURE SENSOR ELECTRICAL
K. LEAD, GROUND
L. CONNECTOR, IGNITION COIL ELECTRICAL
M. CONNECTOR, ENGINE COOLANT TEMPERATURE SENSOR ELECTRICAL
N. CONNECTOR, POWER STEERING CUTOUT SWITCH
P. CONNECTOR, SECONDARY AIR INJECTION AIR PUMP
Q. CONNECTOR, KNOCK SENSOR ELECTRICAL
R. STUD
S. TERMINAL, GROUND

1. HARNESS, ENGINE WIRING
2. BRACKET, ENGINE WIRING HARNESS SHIELD
3. NUT, ENGINE WIRING HARNESS GROUND
4. NUT, ENGINE GROUND STRAP
5. STRAP, ENGINE GROUND
6. WASHER, ENGINE GROUND STRAP
7. BOLT / SCREW, 3ODY FRONT WIRING HARNESS GROUND
8. WASHER, ENGINE WIRING HARNESS CLIP
9. BOLT / SCREW, ENGINE WIRING HARNESS CLIP
10. 3RACKET, ENGINE WIRING HARNESS
11. BOLT / SCREW. ENGINE WIRING HARNESS BRACKET
