2-3 Shift Solenoid

1 - 2 / 2 -3 Shift Solenoid:

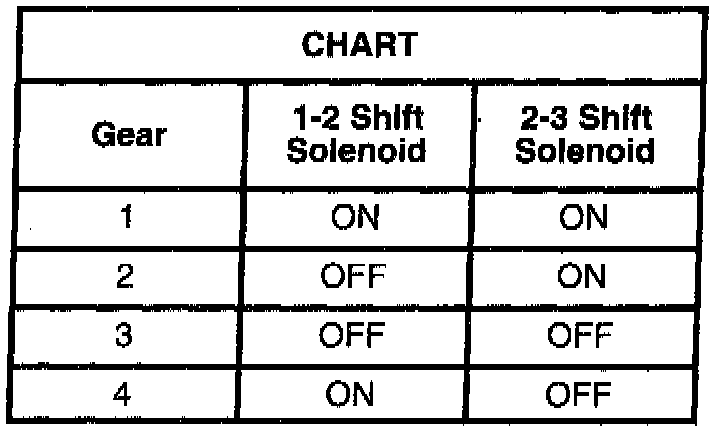

Solenoid Chart:

This electrical device is used to control fluid flow acting on the 2-3 shift valves. The solenoid is a normally open exhaust valve that is used with the 1-2 shift solenoid to allow four different shifting combinations. The solenoid is attached to the control valve body within the transmission.
