Chart 3 Med SPD(S) Inop, LO & Hi SPD(S) Operates Normally
Chart 3 Med SPD(S) Inop, LO & Hi SPD(S) Operates Normally

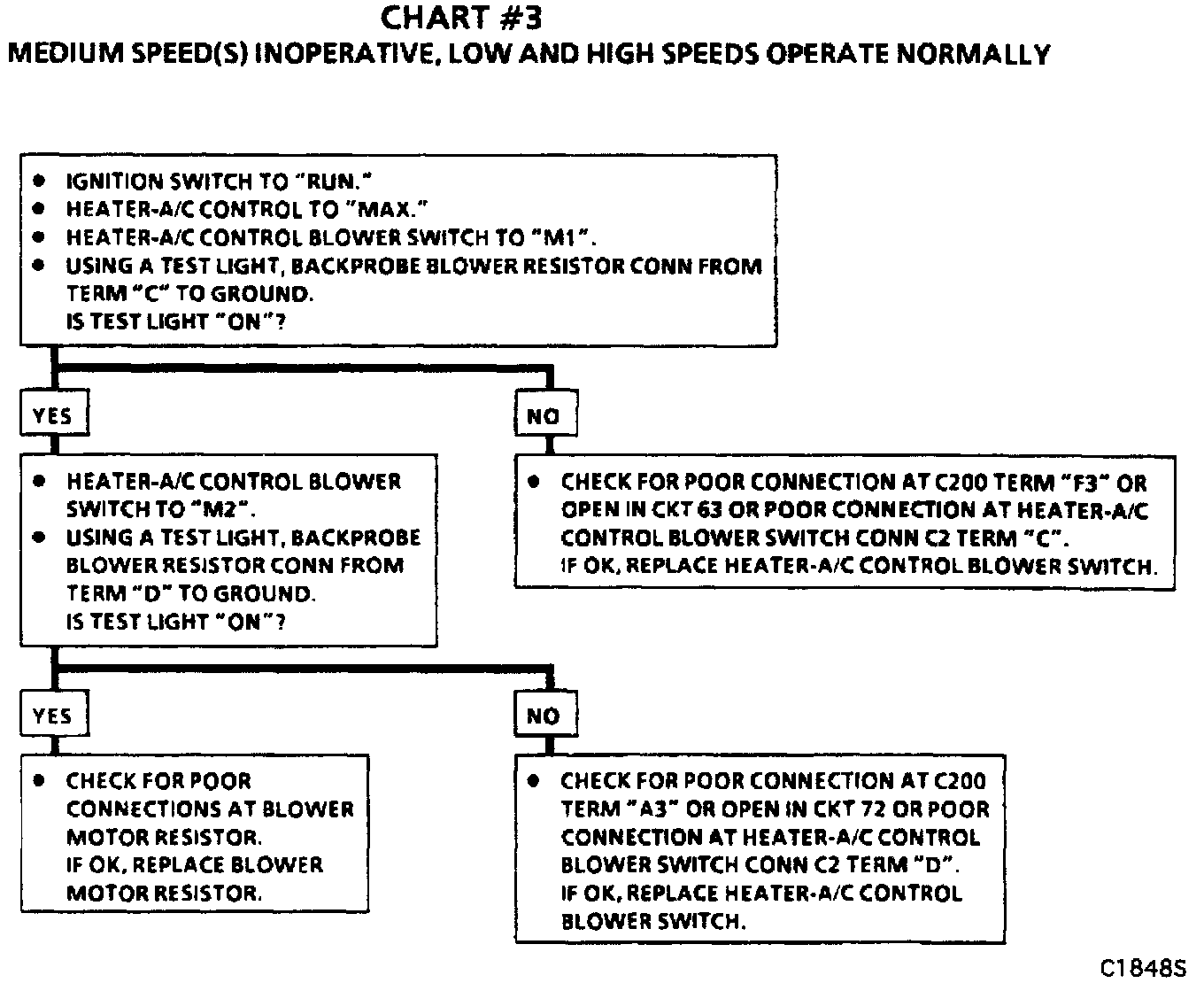

Chart #3 Medium Speed(s) Inoperative, LO And HI Speeds Operate Normally:
