Home >> Chevrolet >> 1995 >> Caprice Wagon V8-350 5.7L VIN P MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Center Mounted Brake Lamp

Center Mounted Brake Lamp

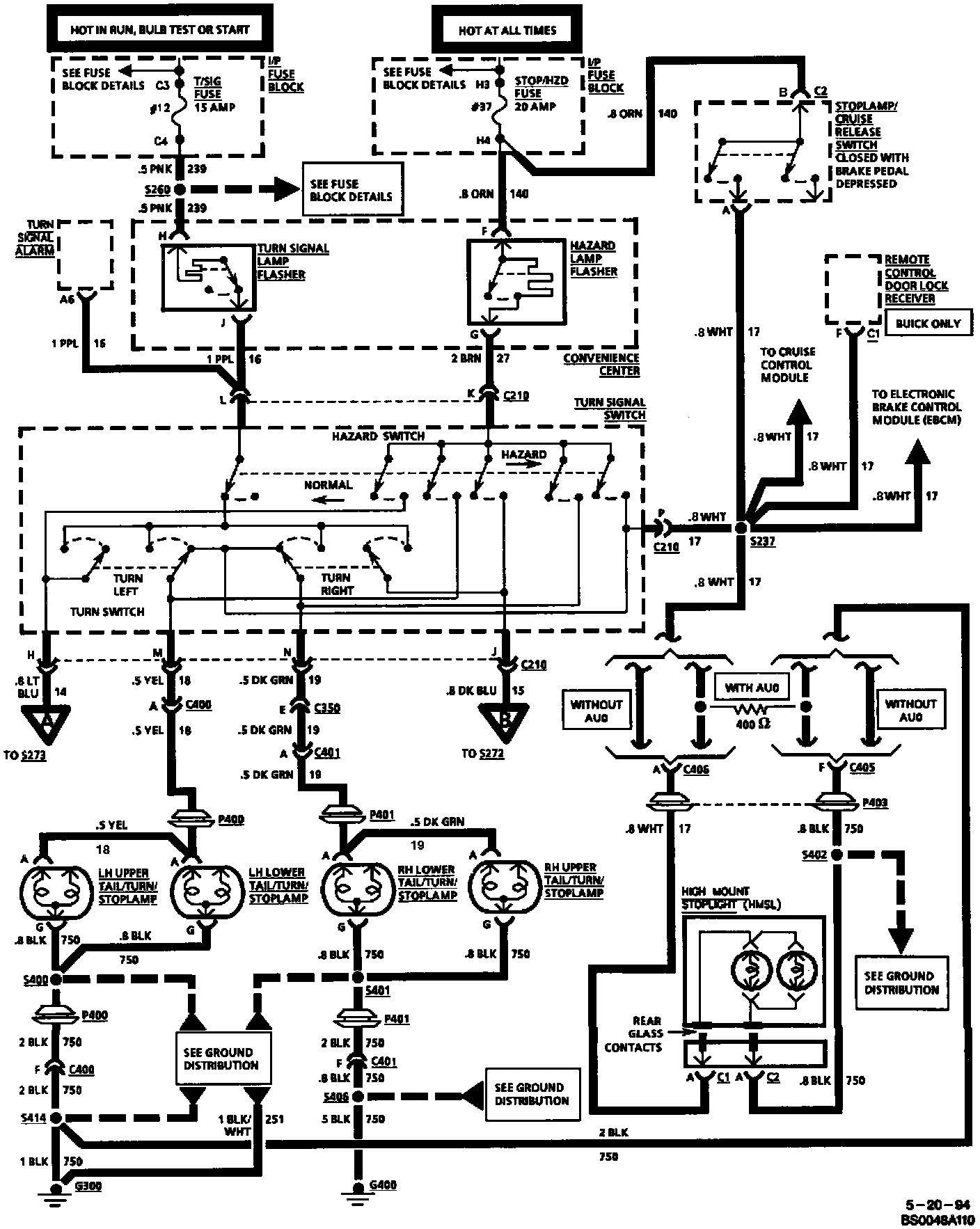

Turn/Stop/Hazard/High Mount Stop:



Turn/Stop/Hazard/High Mounted Stop/Front Marker/Park/License:
