Engine Data Sensors - Manual Transaxle

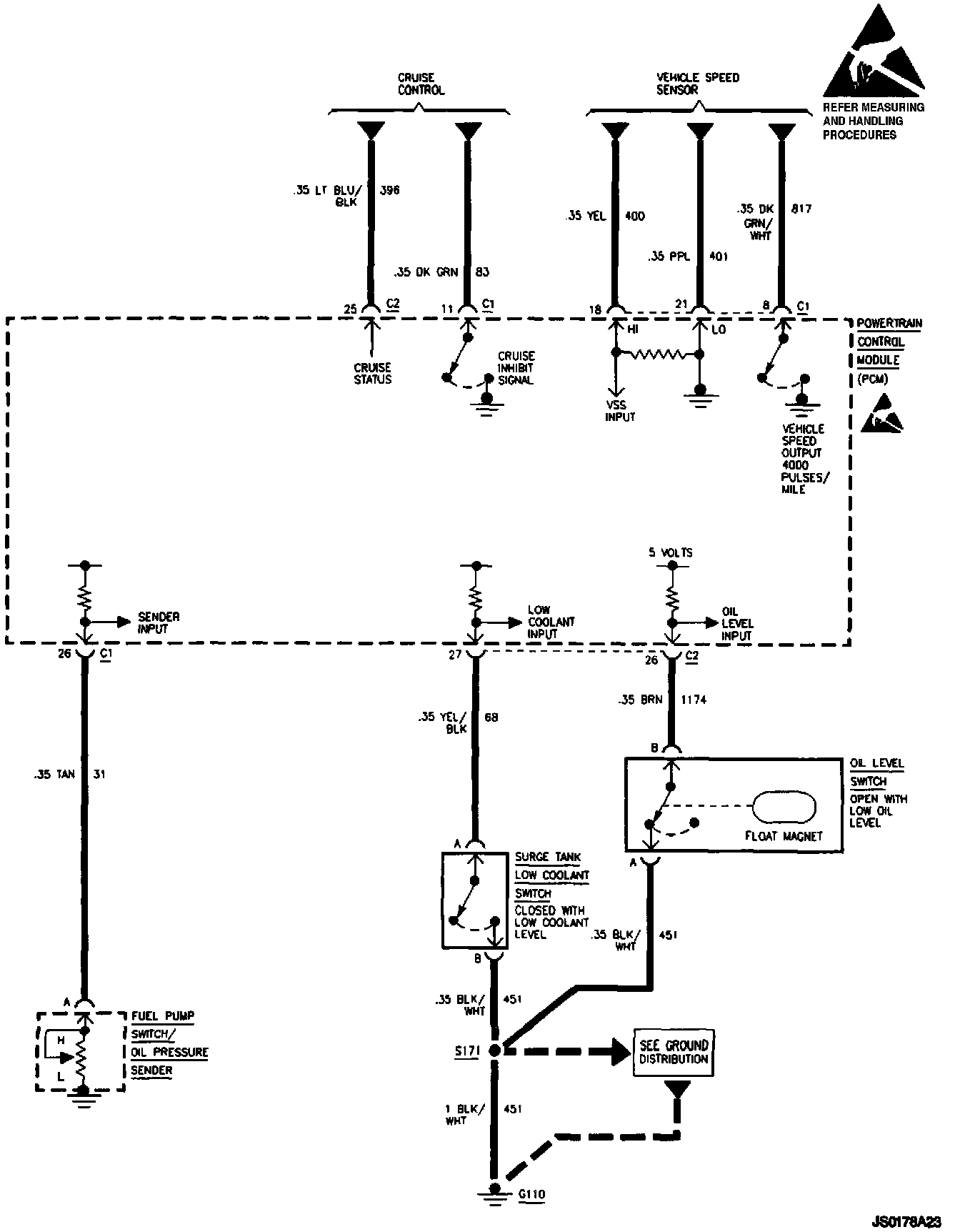

Engine Data Sensors: Manual Transaxle (Part 1 Of 3):

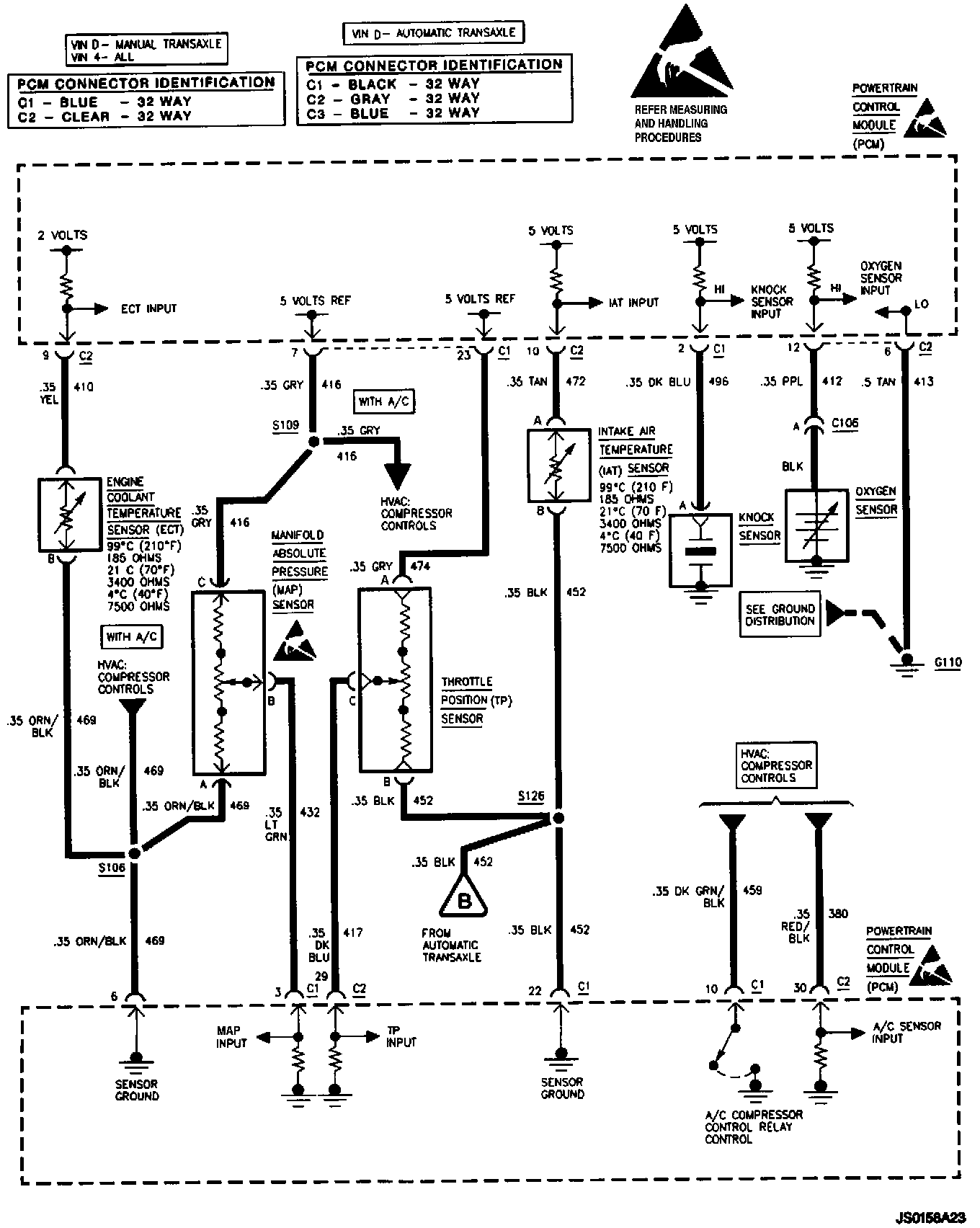

Engine Data Sensors: Manual Transaxle (Part 2 Of 3):

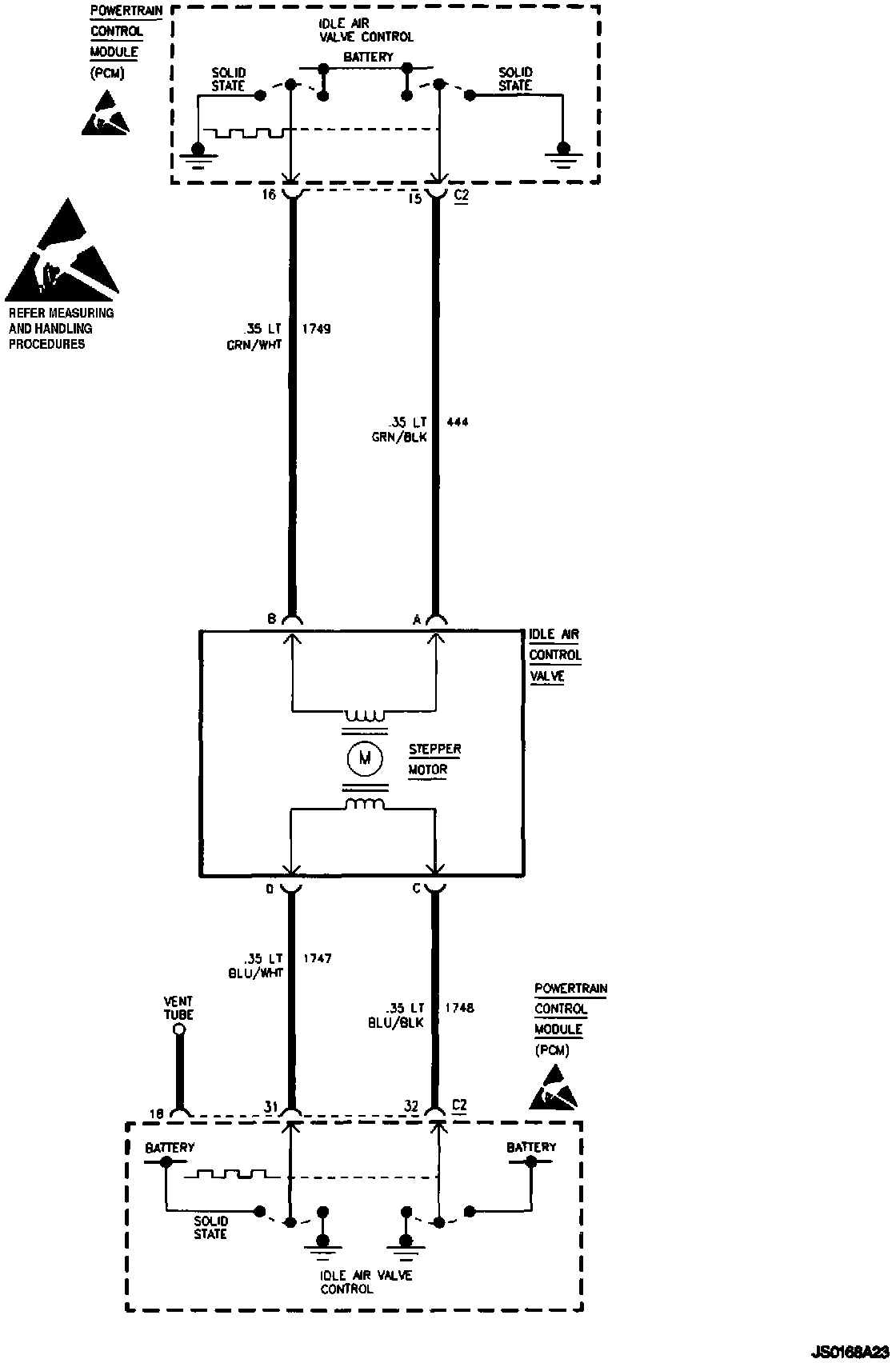

Engine Data Sensors: Manual Transaxle (Part 3 Of 3):

This diagram is one part of the Complete set of Powertrain Wiring Diagram located under Powertrain Management. Refer to this area if you need the accompanying diagram. Electrical Diagrams
