Fastener Tightening Specifications - Engine

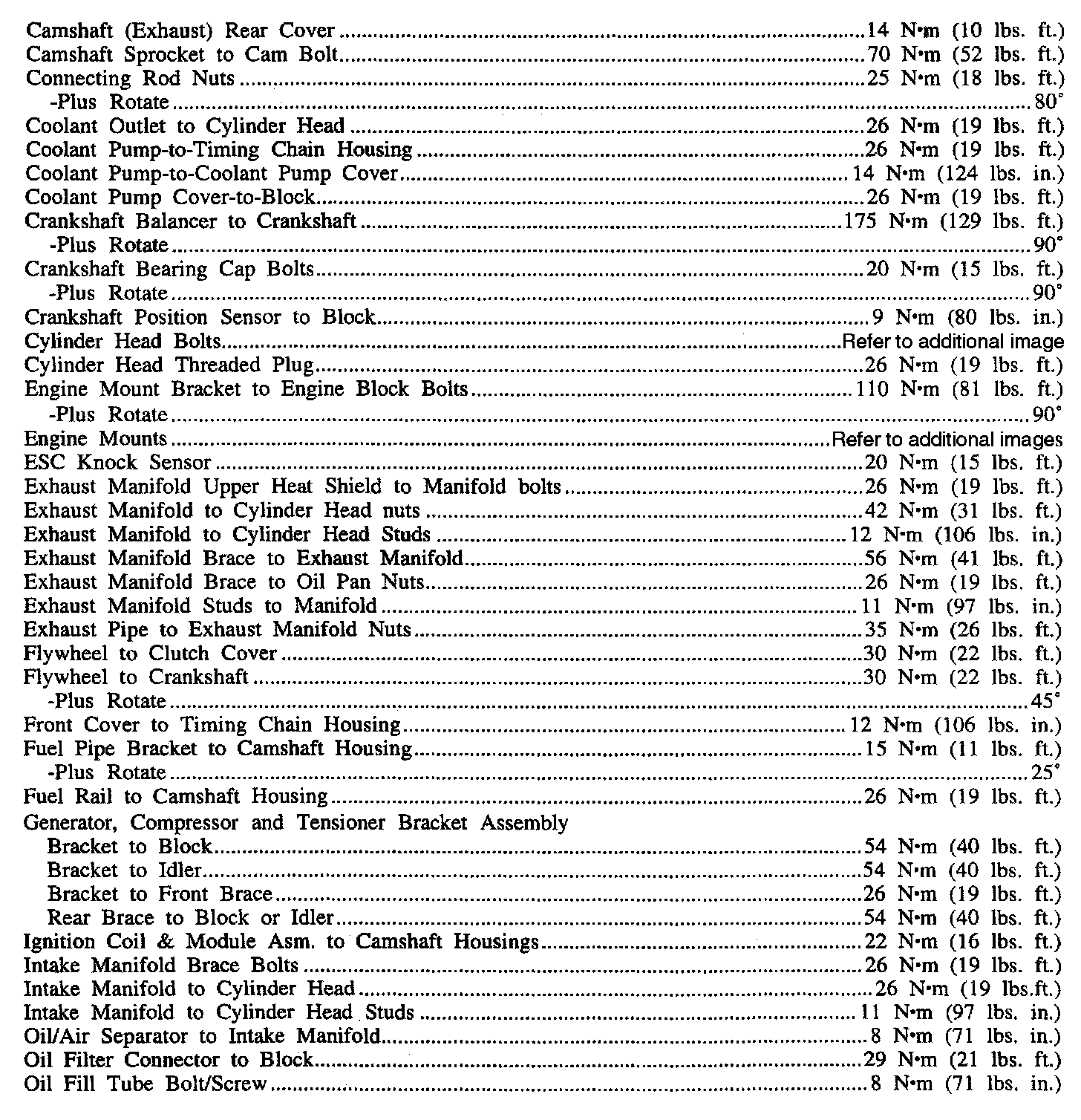

Torque Specifications (1 Of 2):

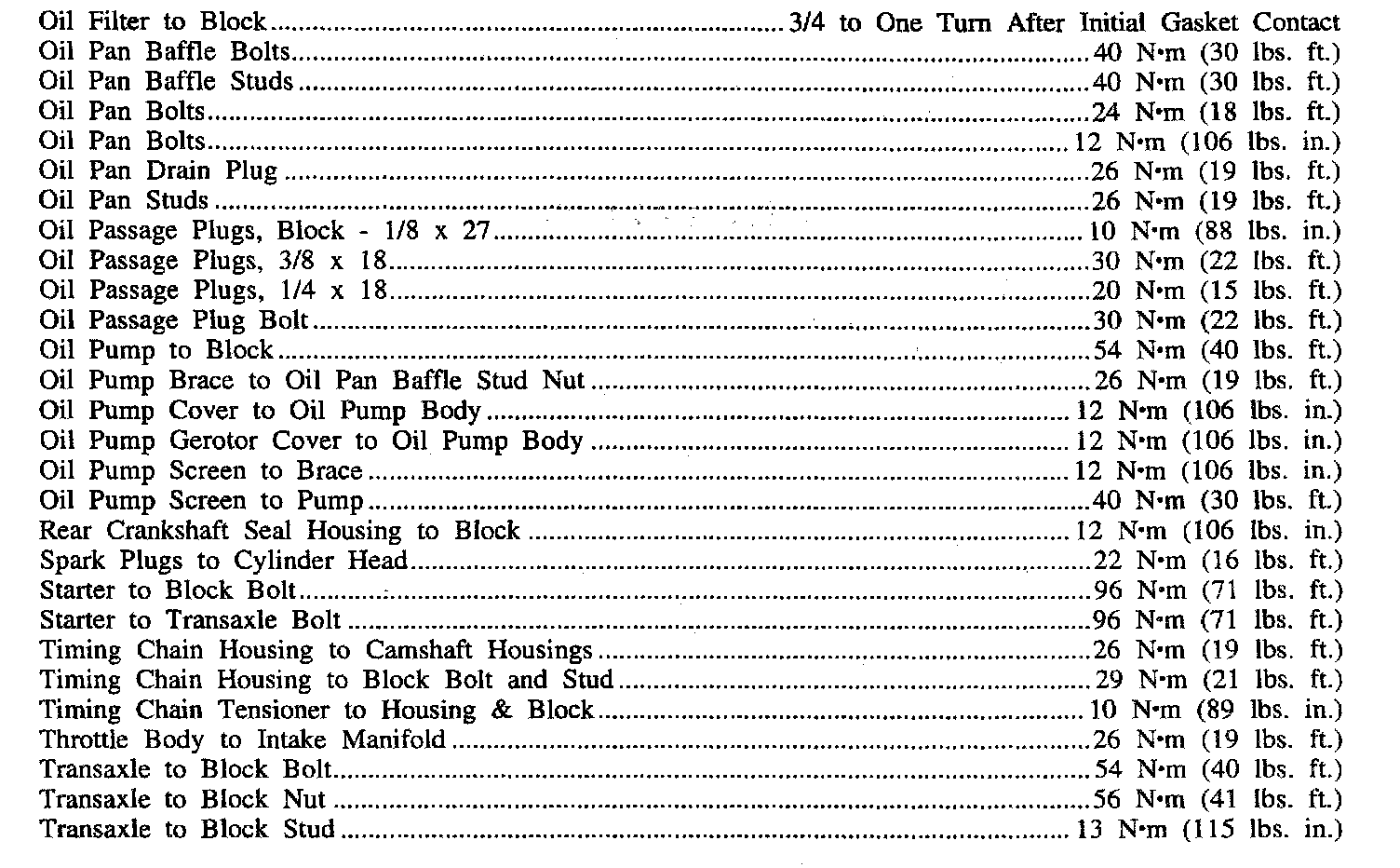

Torque Specifications (2 Of 2):
