4T40-E Automatic Transaxle

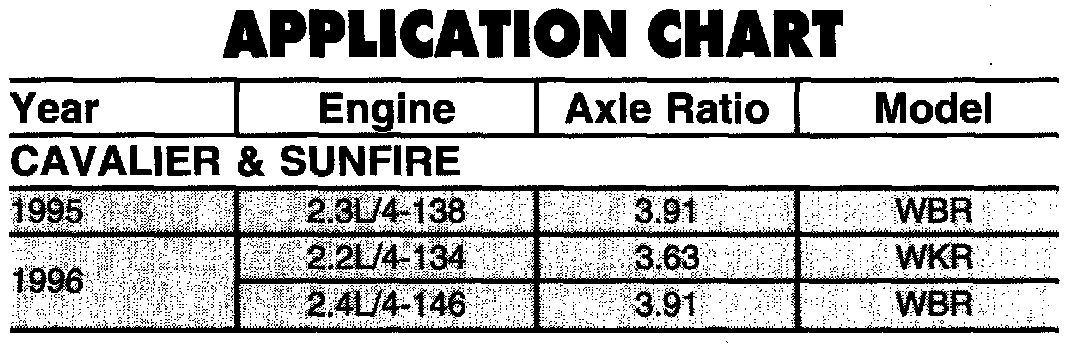

Application Chart

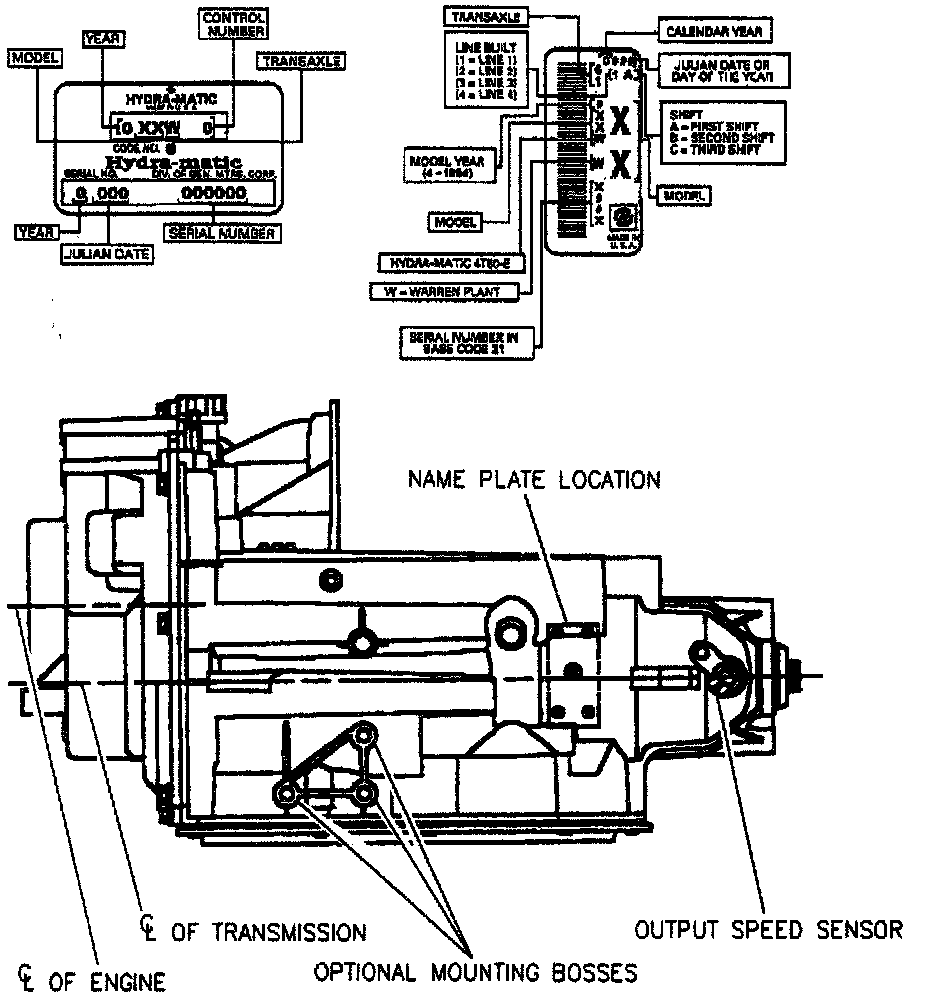

The transaxle identification tag is located on the rear righthand side of the transaxle housing.
