Turn Signal Switch
Turn Signal Switch
Turn/Hazard - Headlight Switch Assembly:

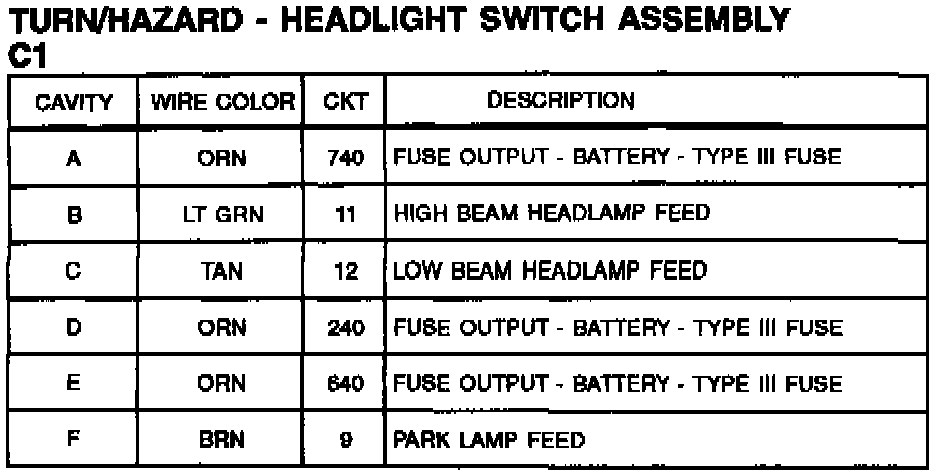

Turn/Hazard - Headlight Switch Assembly: C1:

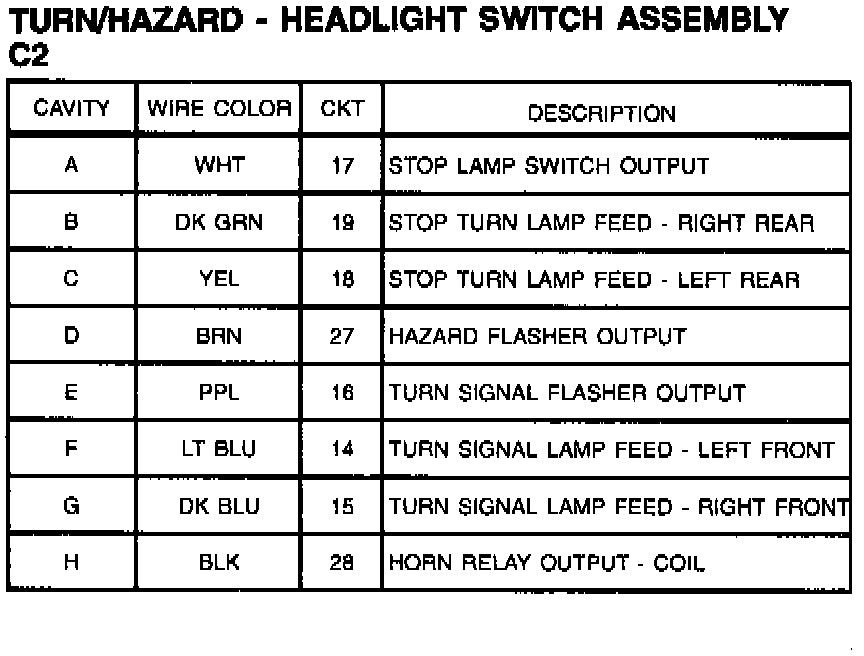

Turn/Hazard - Headlight Switch Assembly: C2:
