Audible Warning Device

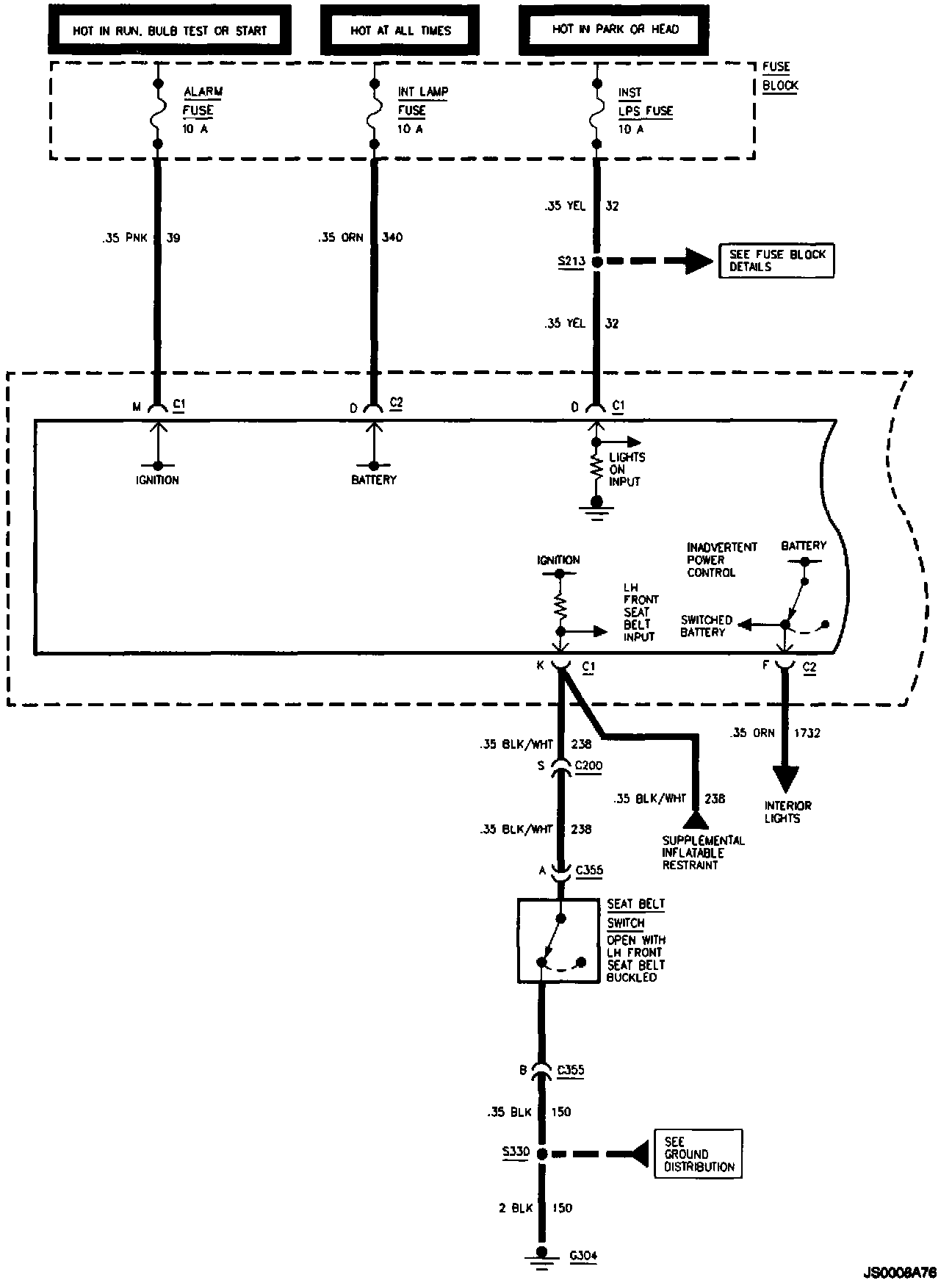

Audible Warnings Chime: Lights-ON/Ignition/Fasten Belts (Part 1 Of 3):

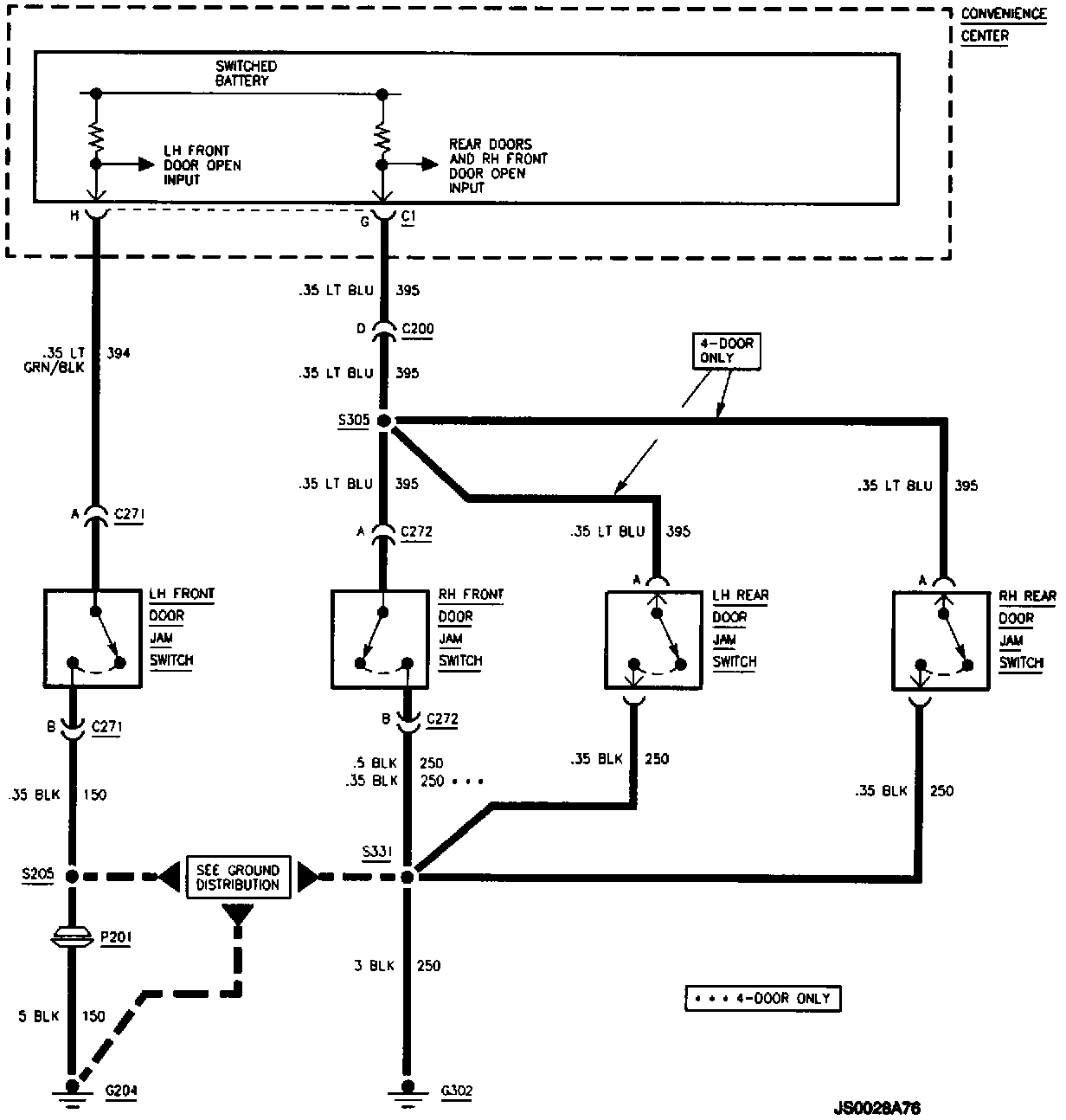

Audible Warnings Chime: Lights-ON/Ignition/Fasten Belts (Part 2 Of 3):



Audible Warnings Chime: Lights-ON/Ignition/Fasten Belts (Part 3 Of 3):
