Instrument Panel Endcap Replacement

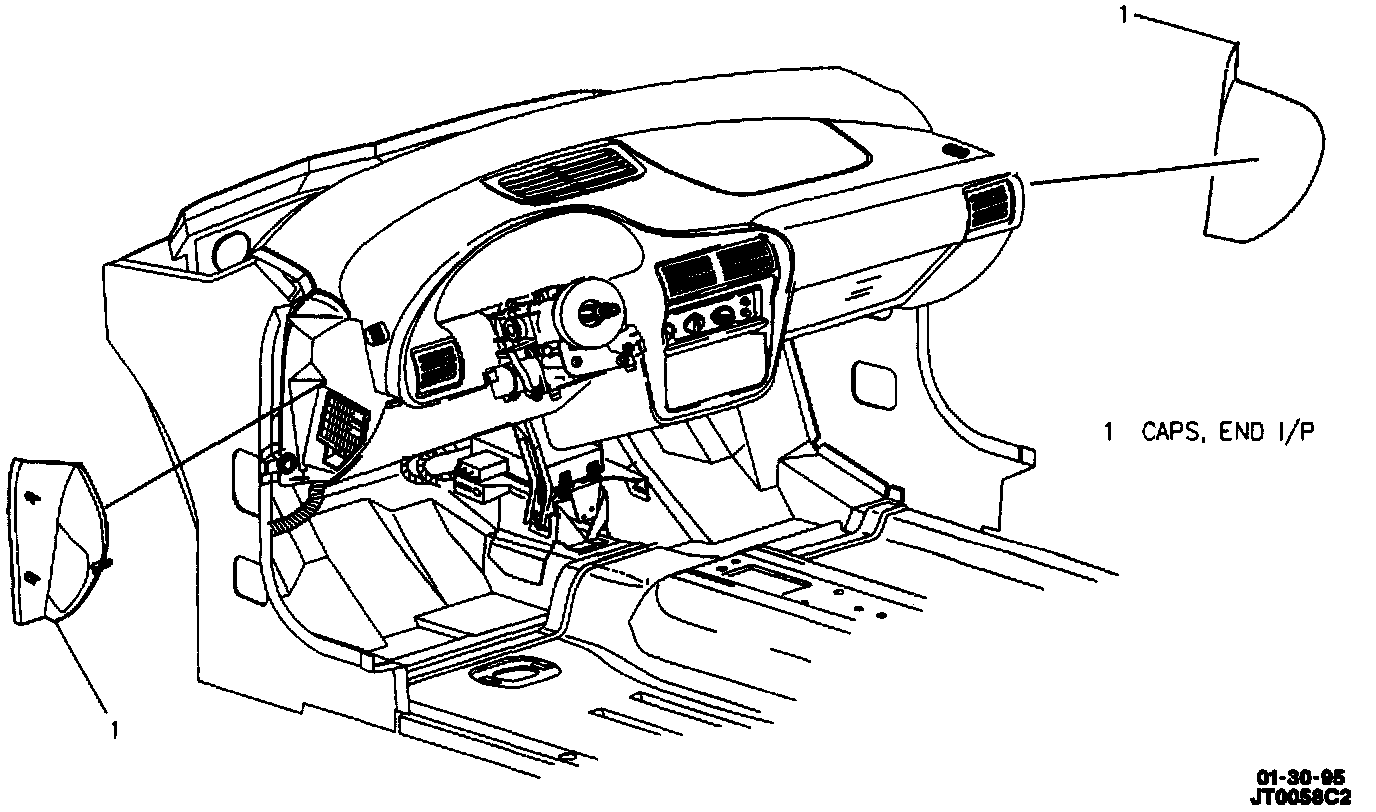

INSTRUMENT PANEL END CAP

Description:

REMOVE OR DISCONNECT
1. Insert a non-marring tool behind cover and gently pry outward.
2. End cap from I/P.

INSTALL OR CONNECT
1. Align tabs to retaining grommets.
2. Gently press into place.
