Instrument Panel Trim Pad Replacement

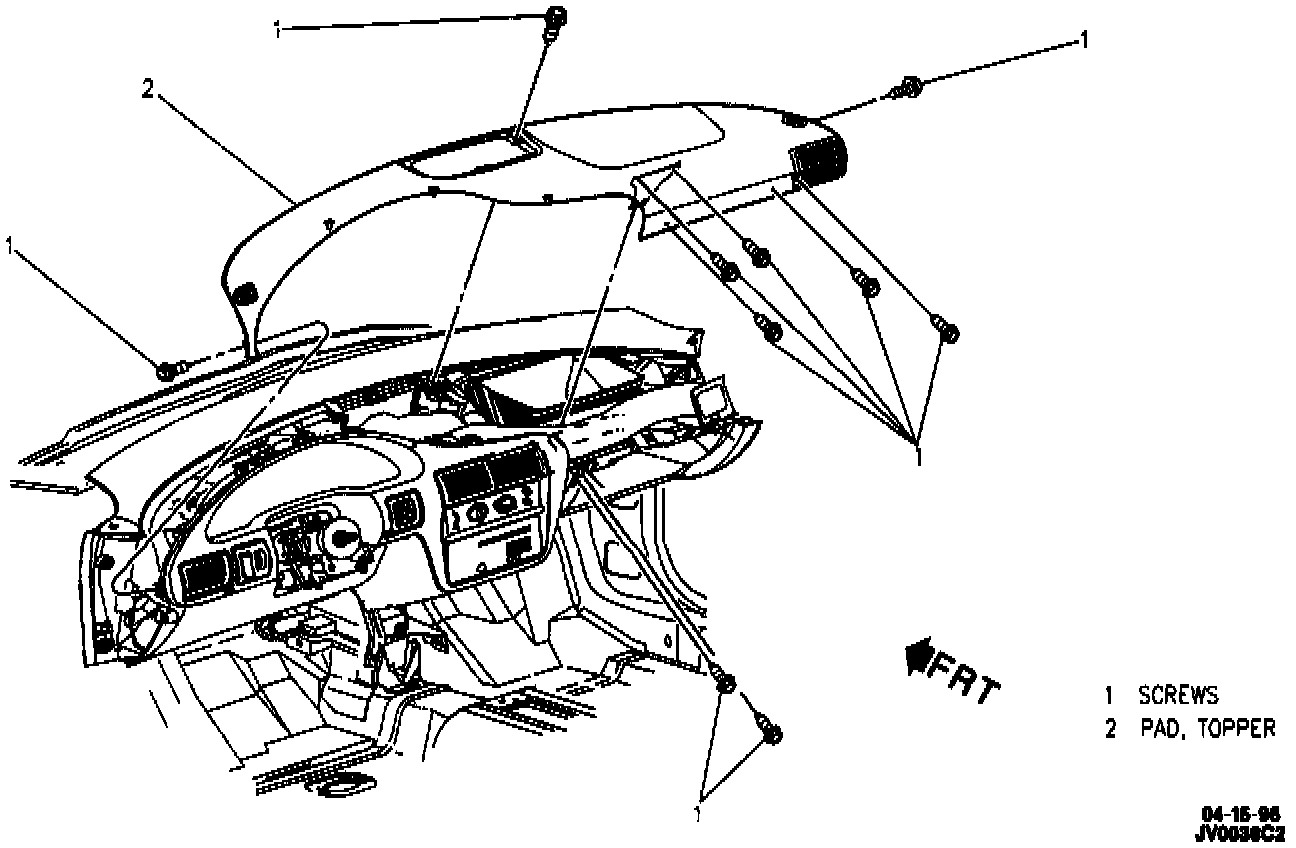

INSTRUMENT PANEL TRIM PAD

Description:

REMOVE OR DISCONNECT
1. Disable SIR system.
2. Defroster grille.
3. End caps.
4. Screws from under end caps.
5. Open I/P compartment.
6. Screw.
7. Pad from I/P.

INSTALL OR CONNECT
1. Pad to I/P.
2. Screws to I/P.
3. End Cap Screws.
4. End caps.
5. Defroster grille.
6. Enable SIR system.
