Data Sensors

Engine Data Sensors:

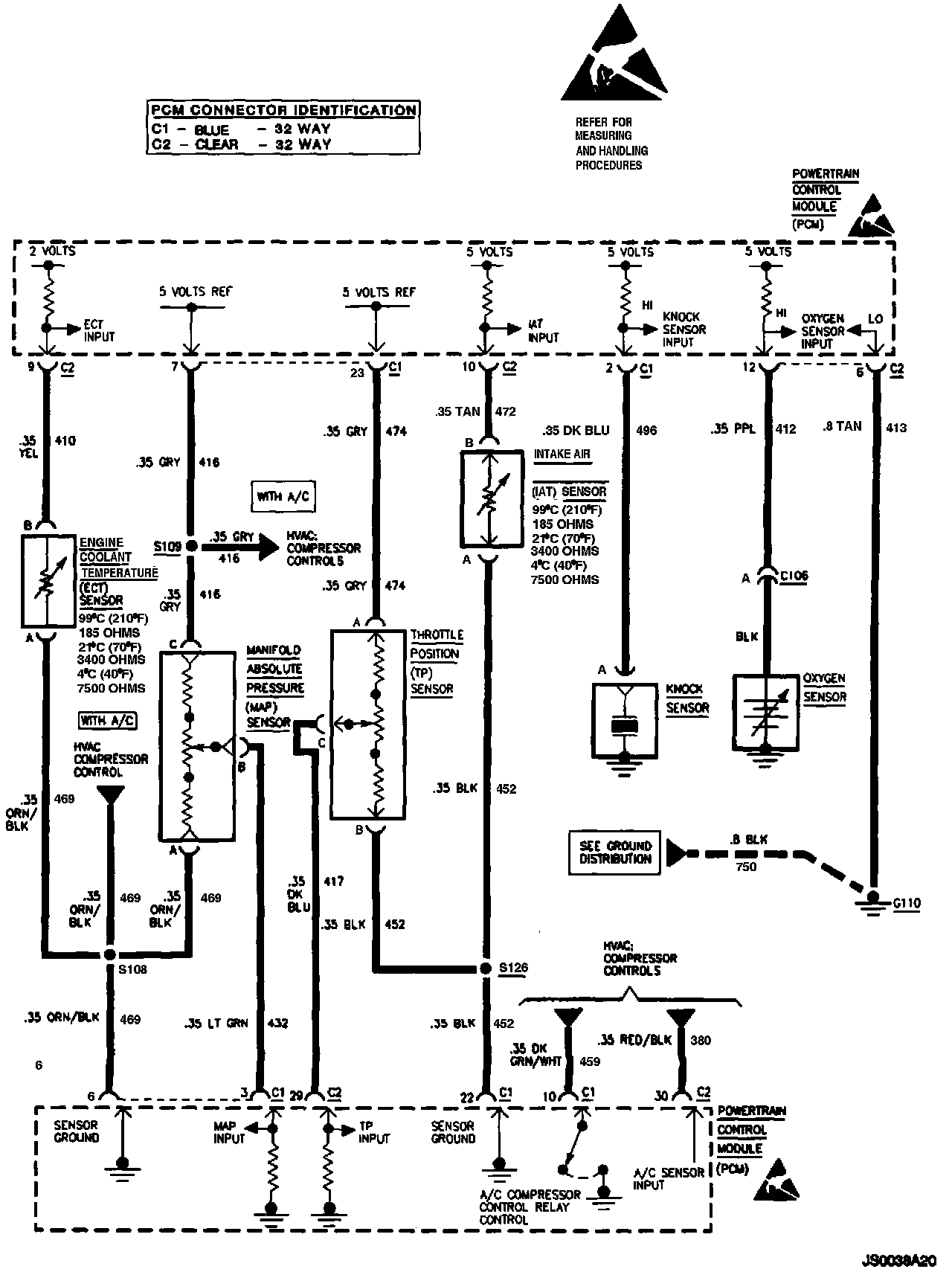

Engine Data Sensor And Torque Converter Clutch (Part 1 Of 2):

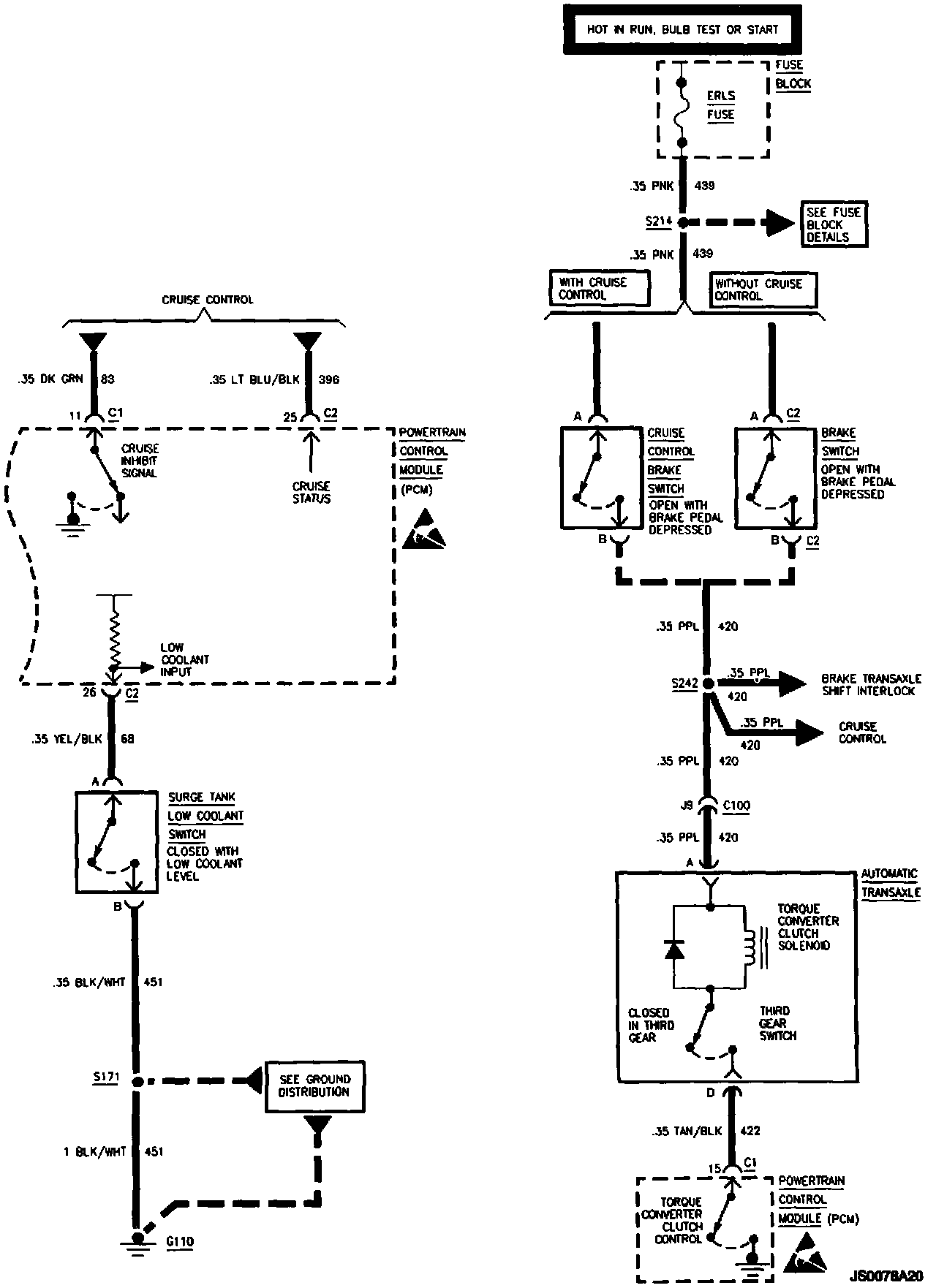

Engine Data Sensor And Torque Converter Clutch (Part 2 Of 2):
