Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1995
>>
Corsica L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Sensors
>>
Intake Air Temperature (IAT) Sensor

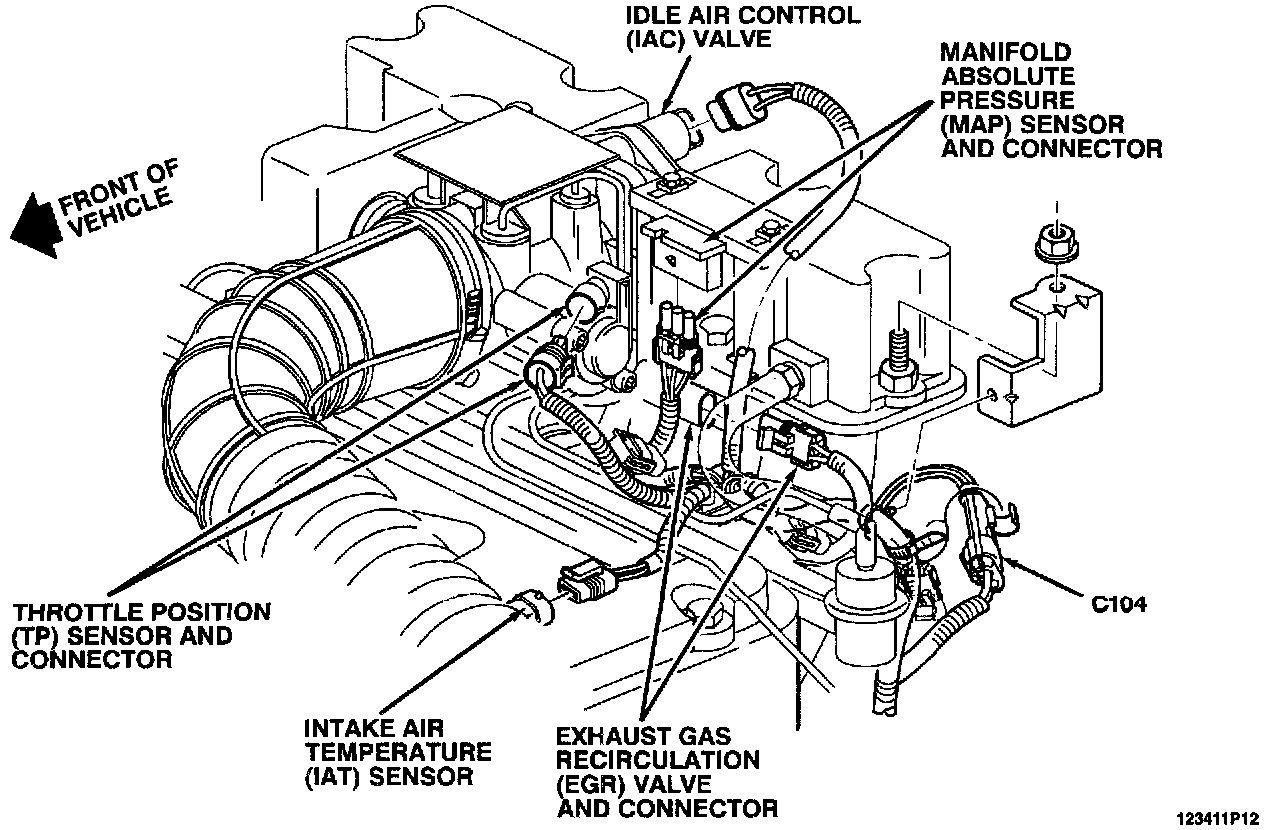

Intake Air Temperature (IAT) Sensor
Top Of Engine, Rear Of Engine Compartment:
