System Diagram

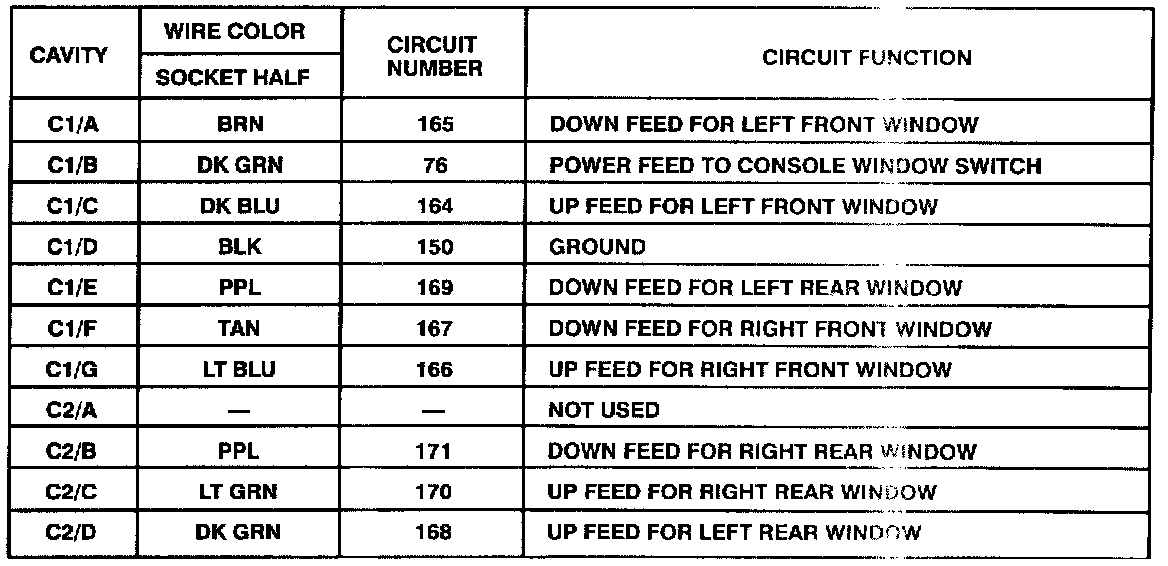

Console Window Switch:

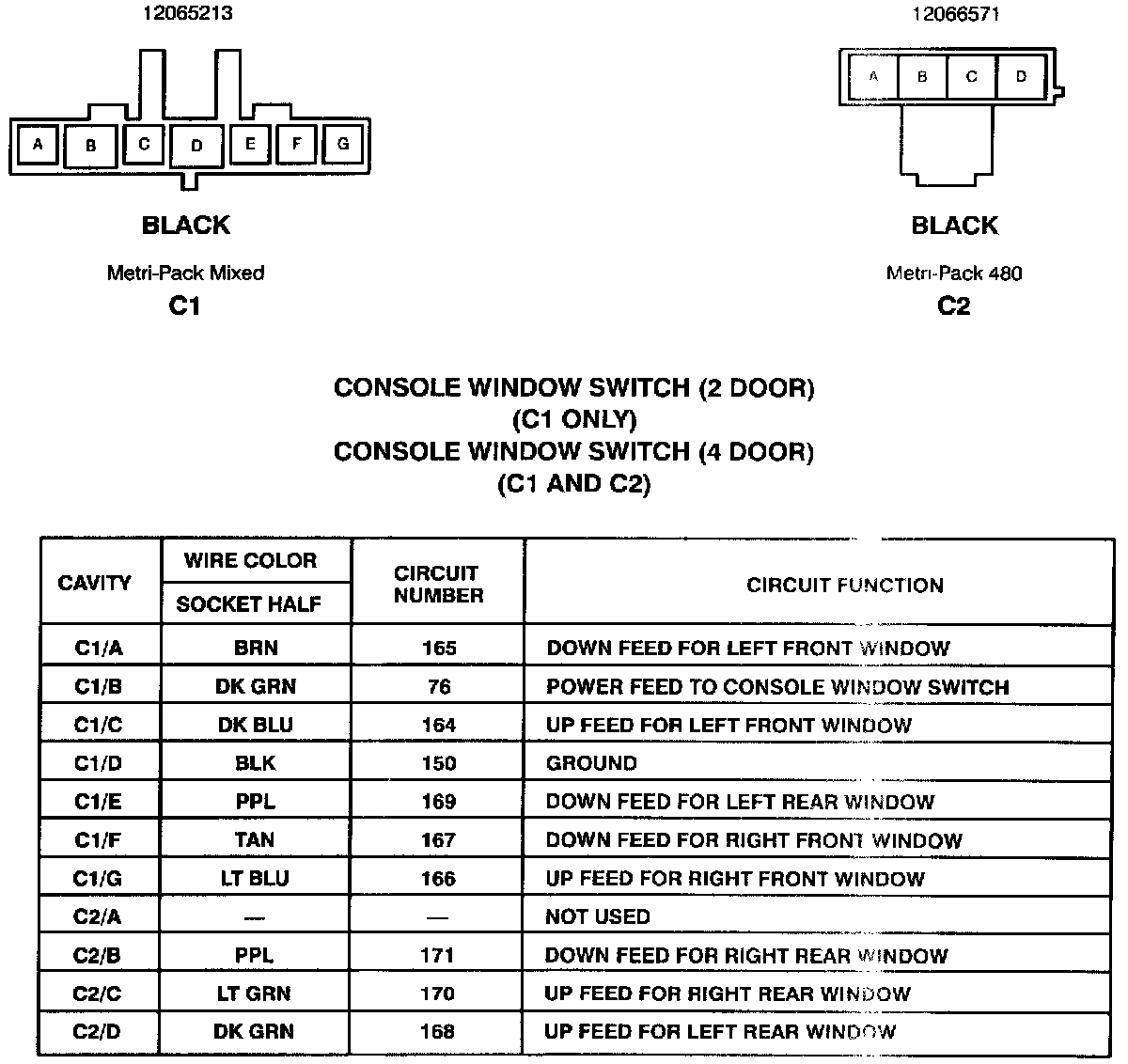

Console Window Switch (2 And 4 Door):



LH Rear Window Switch:
