Dash Panel Service

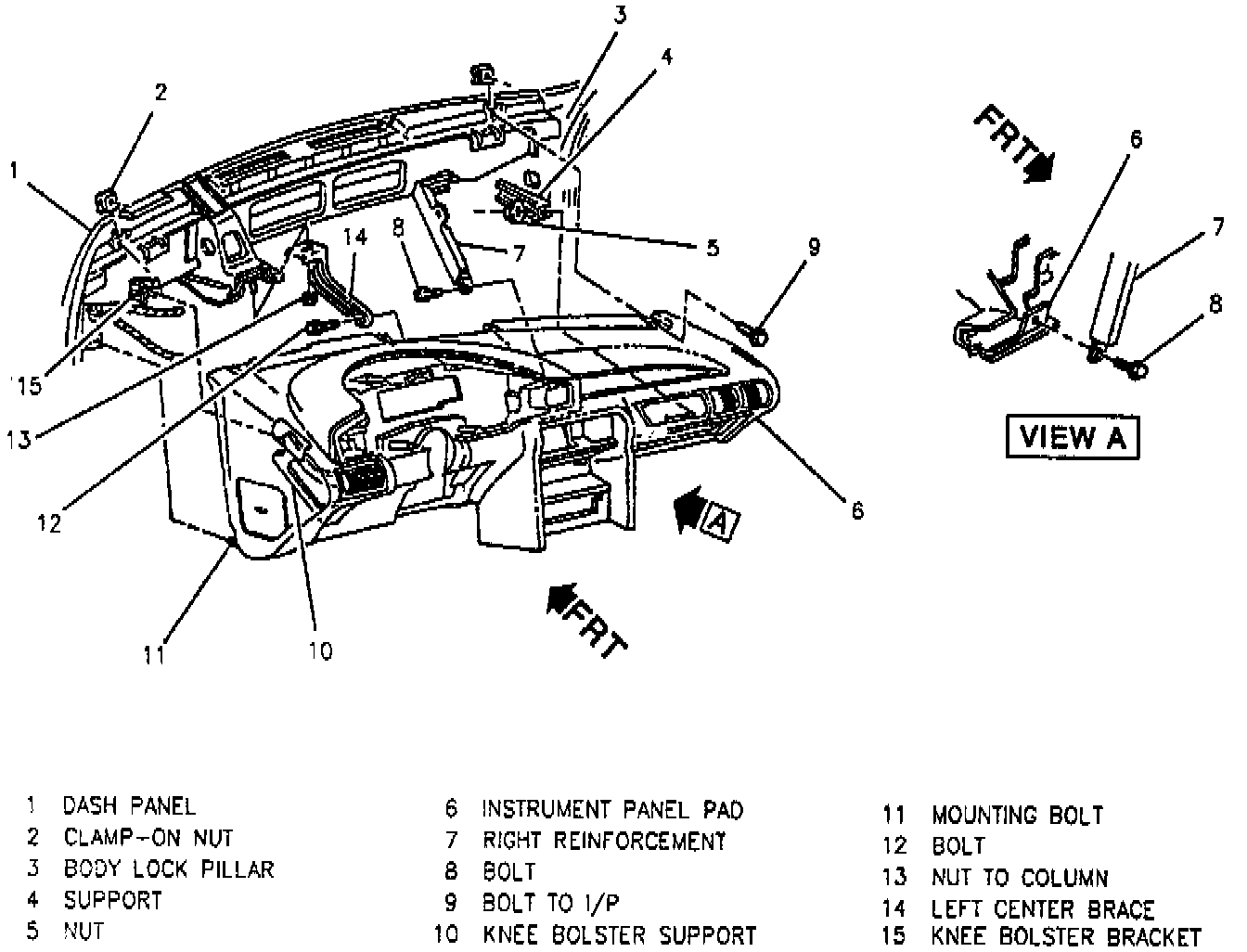

Fig. 42 Instrument Panel Assembly:
1. Disconnect battery ground cable.
2. Remove sound insulators and left speaker panel.
3. Disconnect electrical connectors.
4. Remove knee bolster, Fig. 42, and bulkhead.
5. Disconnect electrical connectors to brake switches and clutch pedal switches.
6. Remove heater and A/C control, then the radio.
7. Remove defroster grille, then screws to cowl through defroster duct.
8. Remove lower left nut, left support screw, and instrument panel compartment.
9. Disconnect electrical connectors: DERM, body harness and arming sensor. Refer to Air Bag. Service and Repair
10. Remove right support screw and lower right nut.
11. Lower steering column, then disconnect electrical connections.
12. Remove instrument panel from cowl.
13. Reverse procedure to install.
