Home >> Chevrolet >> 1995 >> Corvette V8-350 5.7L DOHC VIN J MFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Central Control Module >> Pinout Description

Pinout Description

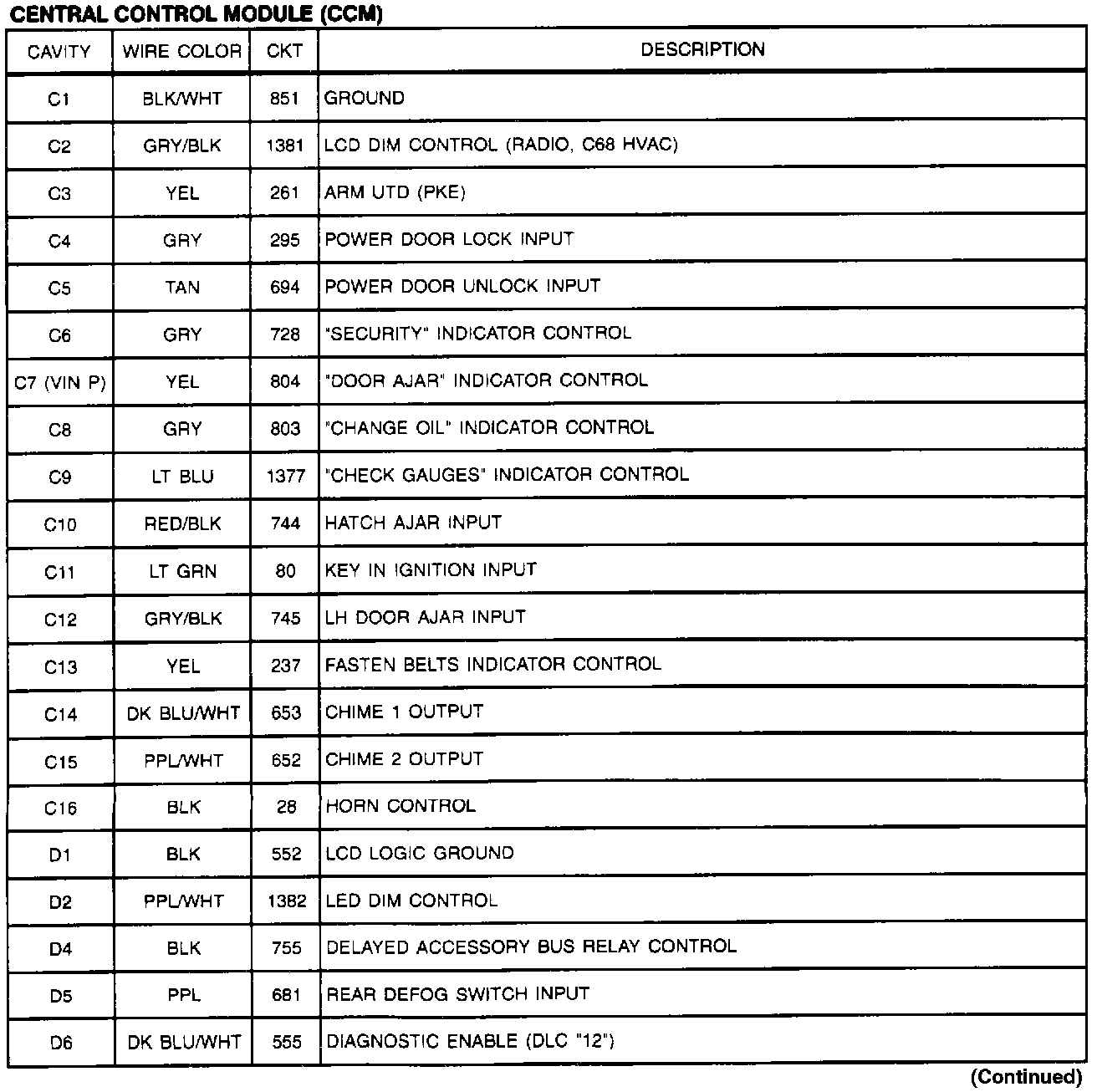

Central Control Module: C1 (Part 1 Of 2):

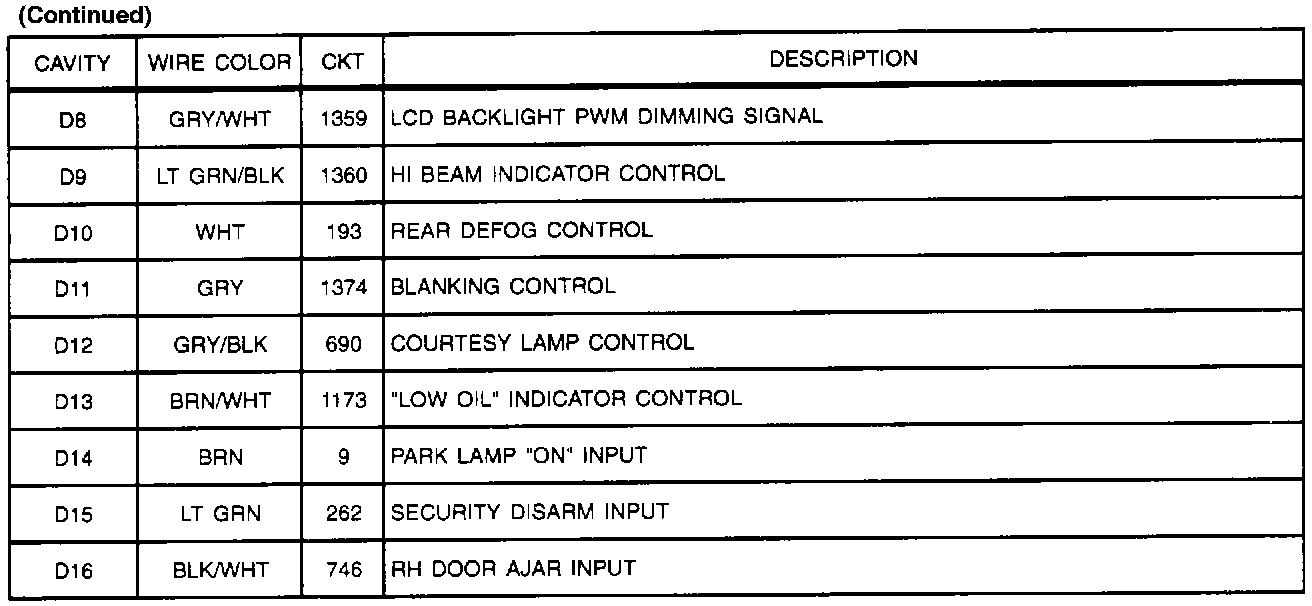

Central Control Module: C1 (Part 2 Of 2):

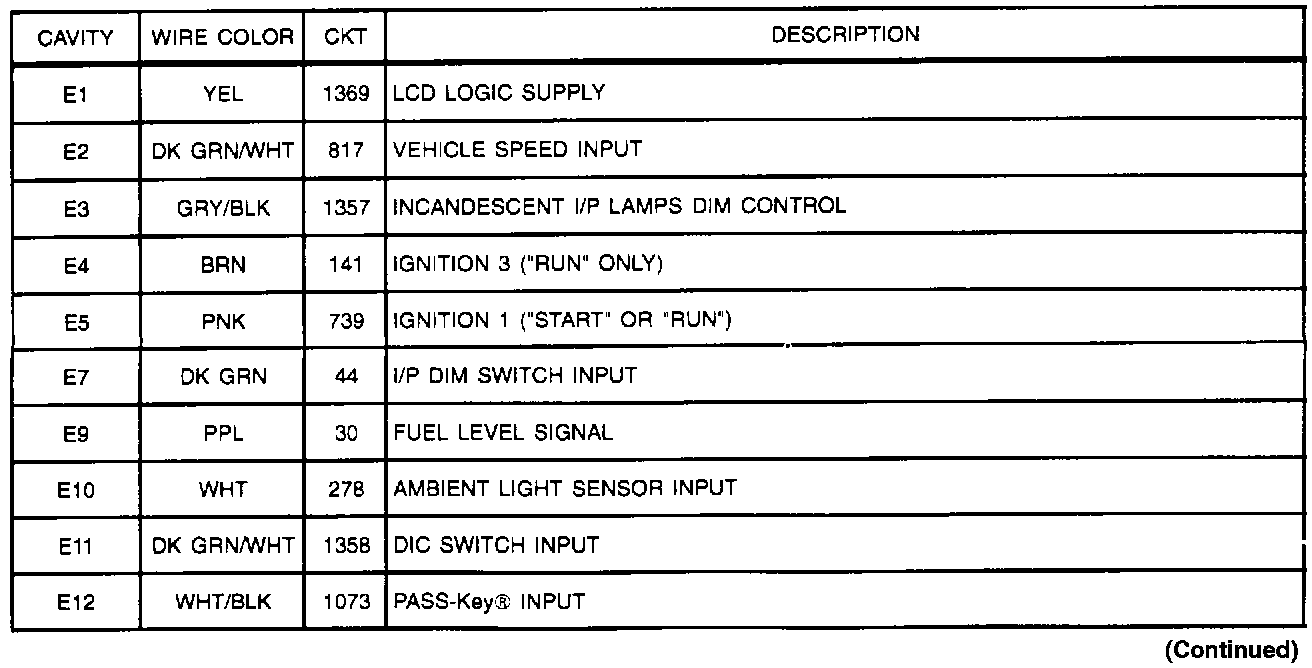

Central Control Module: C2 (Part 1 Of 2):




Central Control Module: C2 (Part 2 Of 2):
