Home >> Chevrolet >> 1995 >> Corvette V8-350 5.7L DOHC VIN J MFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> B

B

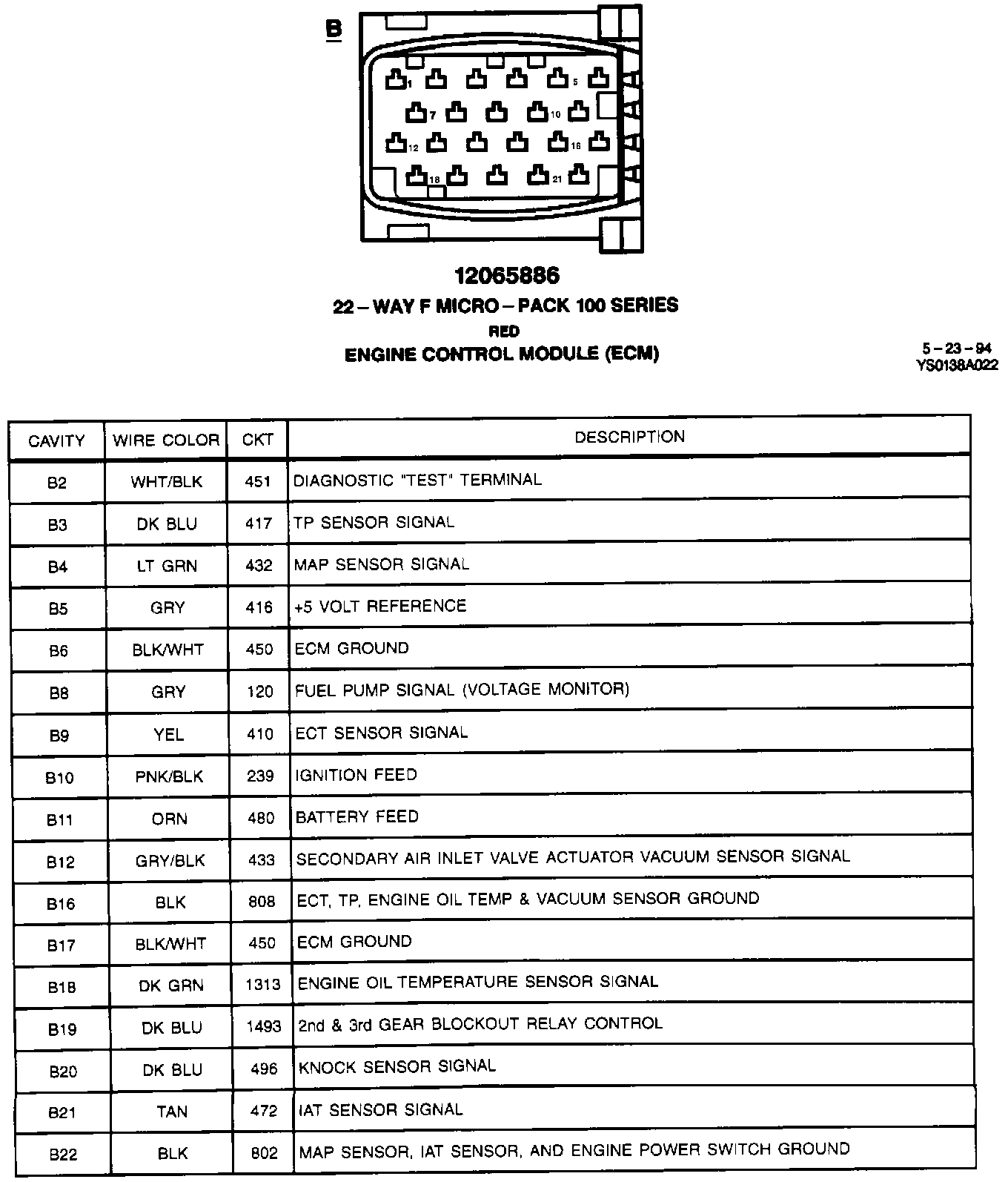

Engine Control Module (ECM): B:
