Oil Temperature Sensor/Switch, Engine
Oil Temperature Sensor/Switch, Engine

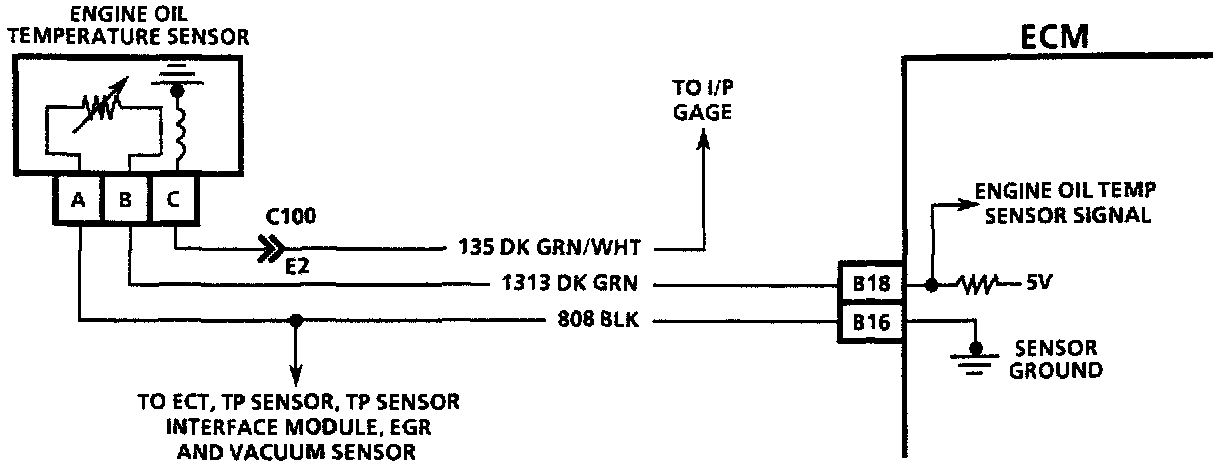

Engine Oil Temp Sensor Circuit:
