- Power Distribution Schematics
- Power Distribution Schematics

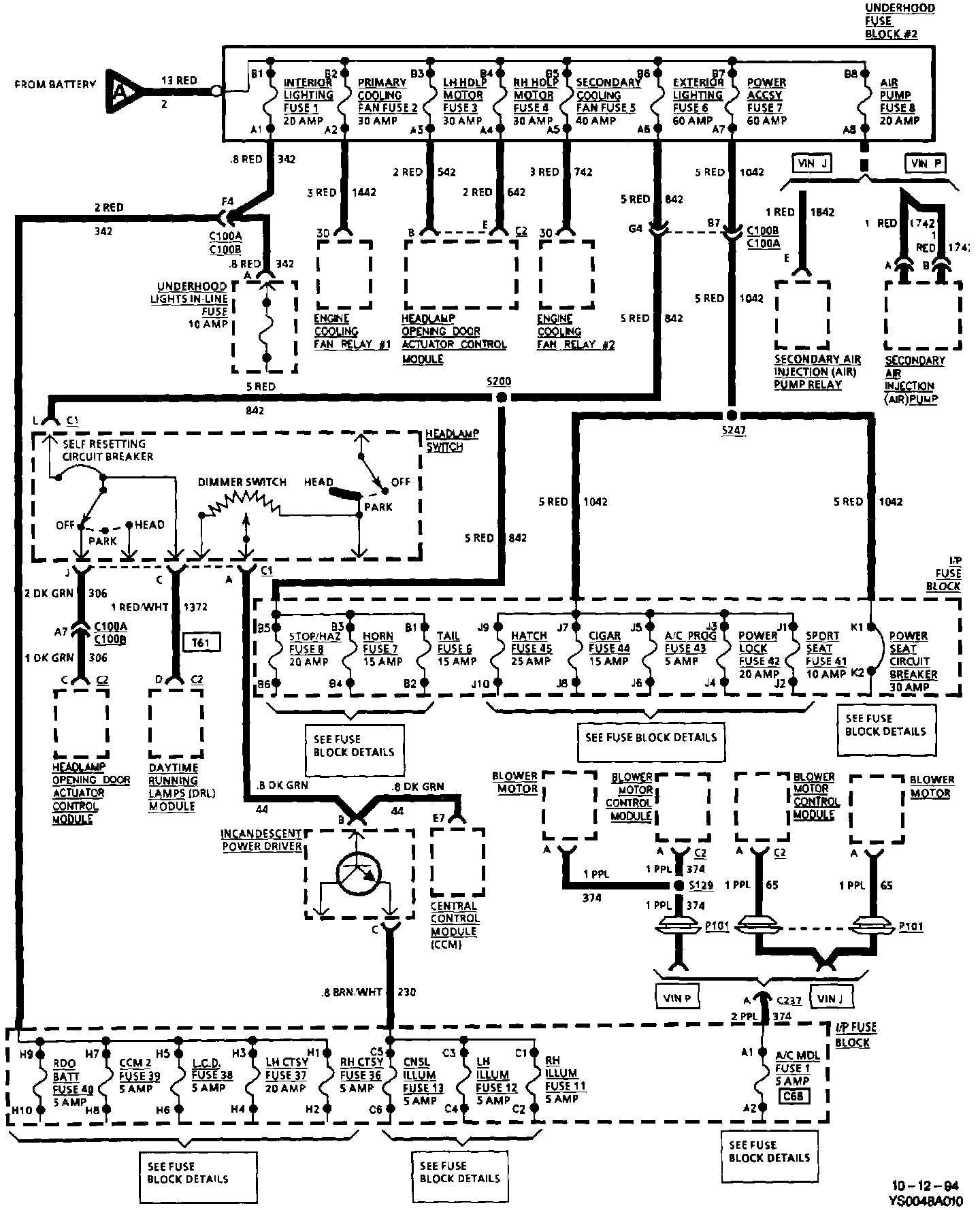

Power Distribution (Part 1 Of 3):

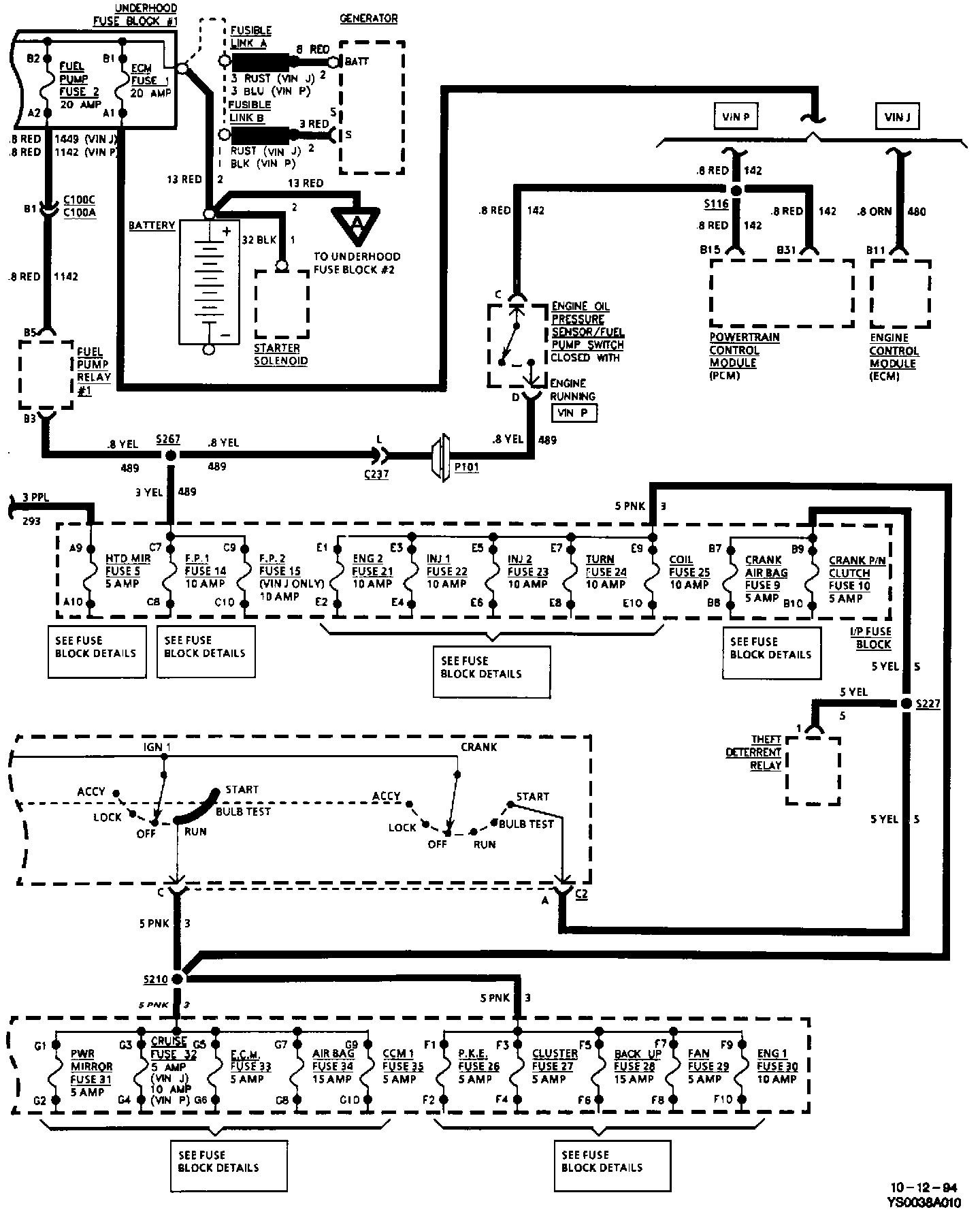

Power Distribution (Part 2 Of 3):
Power Distribution (Part 3 Of 3):
