Part 3 of 4

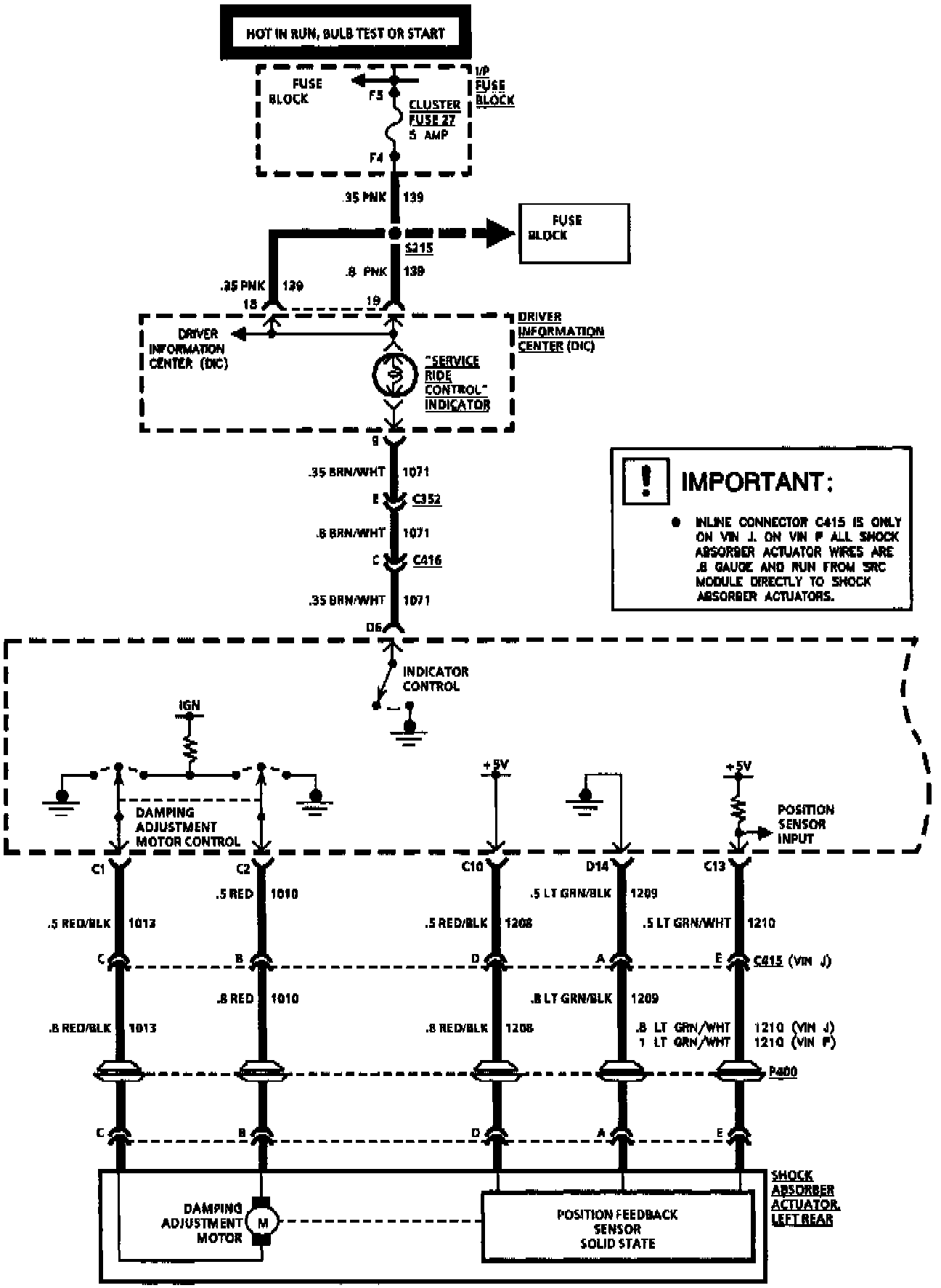

Fig. 2 Selective Ride Wiring Diagram (Part 3 Of 4).:

Diagnose selective ride control system by reading the diagnostic trouble codes stored in the selective ride control module. Refer to Fig. 2 for wiring diagram.
