Transmission Control Systems

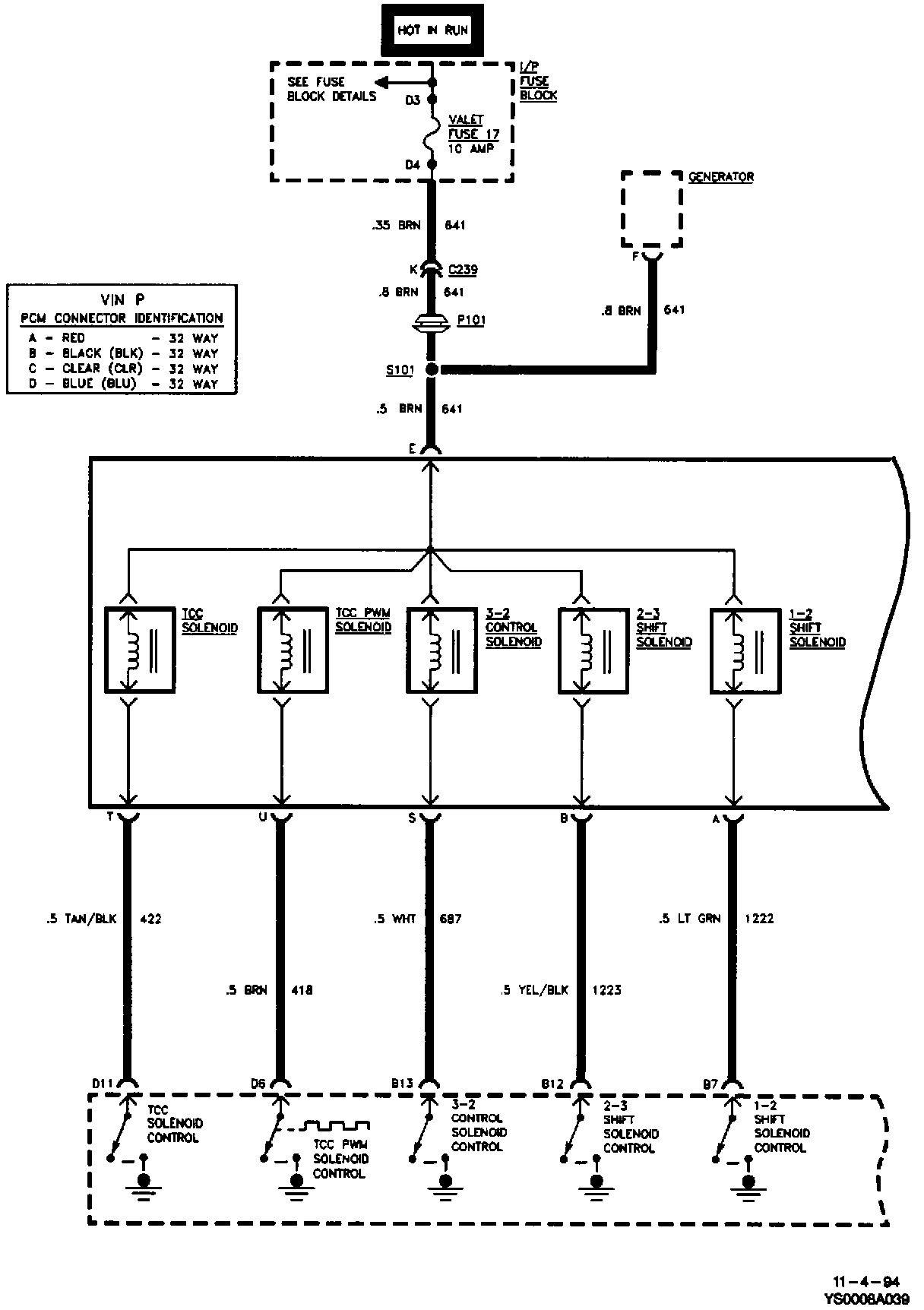

Electronic Transmission Controls (Part 1 Of 2):

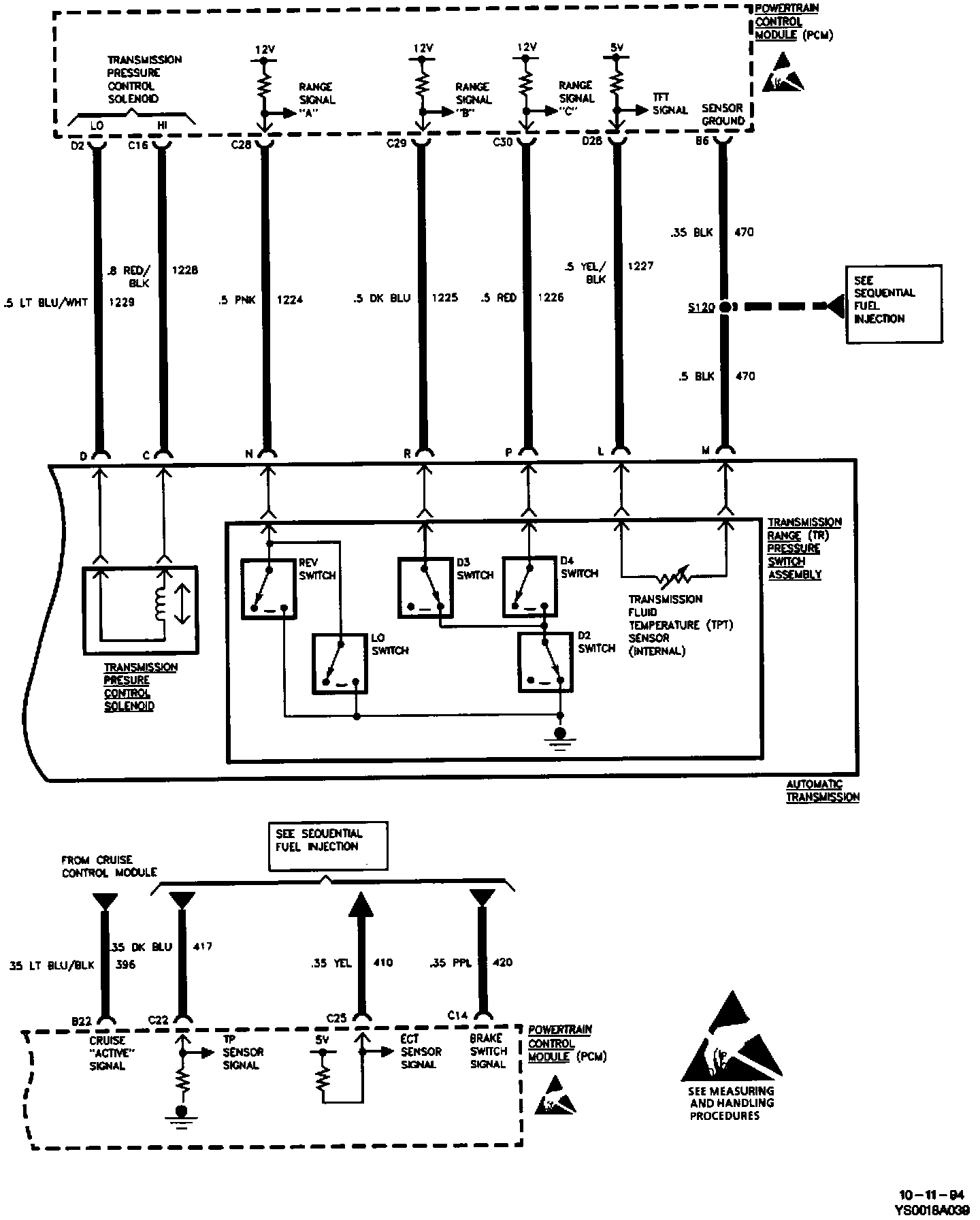

Electronic Transmission Controls (Part 2 Of 2):
