Engine Harness to I/P Harness
Engine Harness to I/P Harness

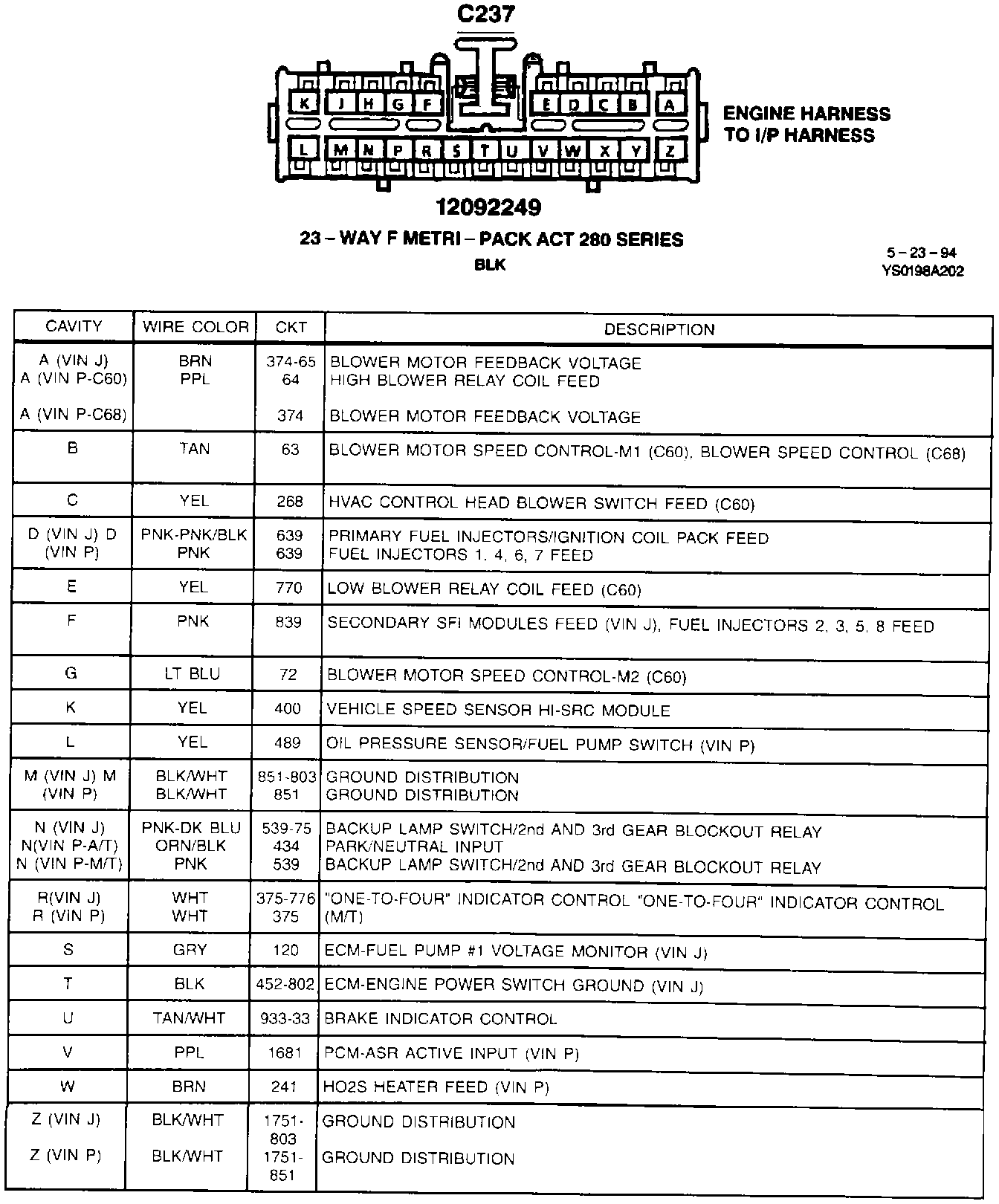

C237: Engine Harness To I/P Harness:

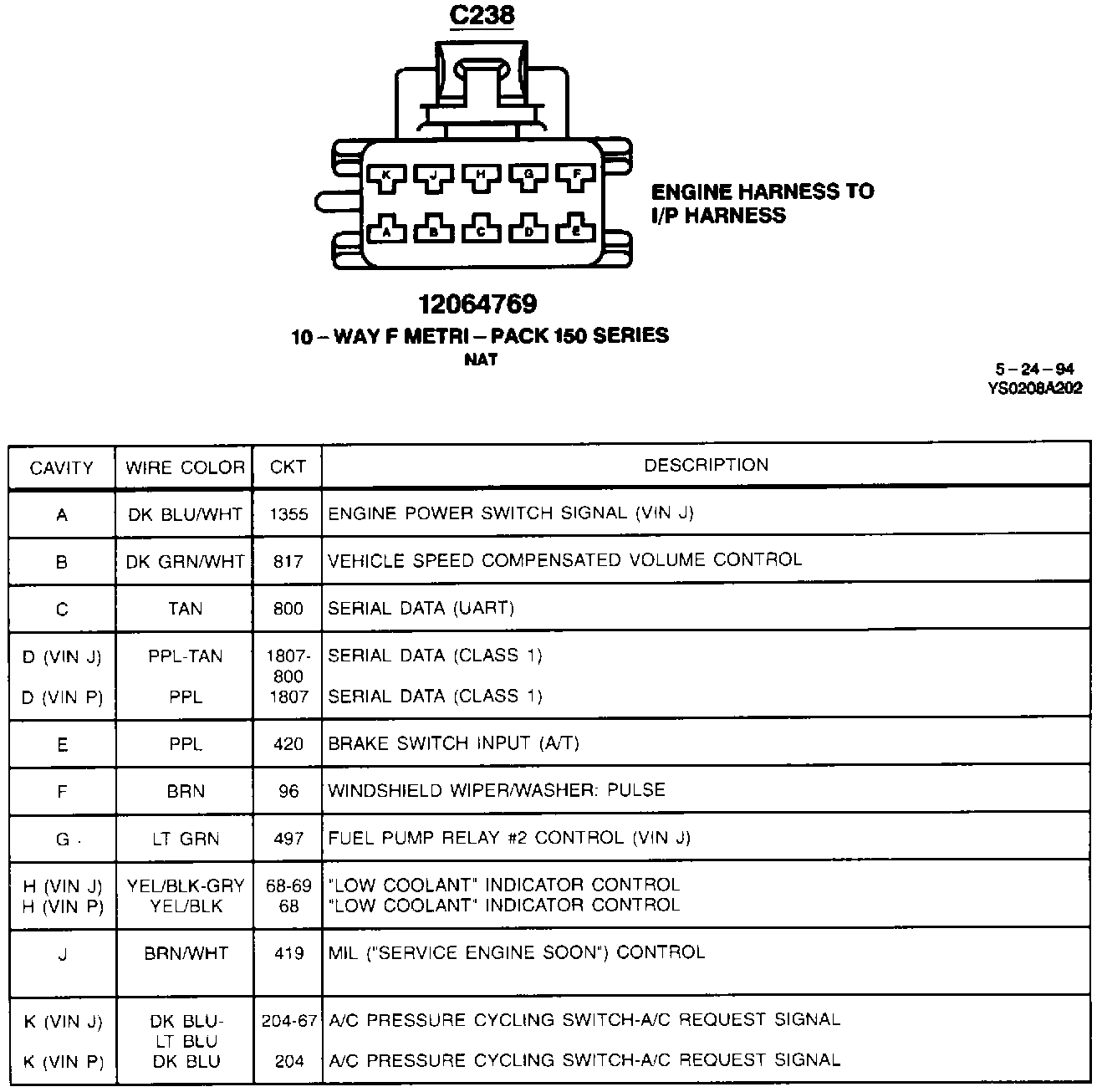

C238: Engine Harness To I/P Harness:
