Data Sensors

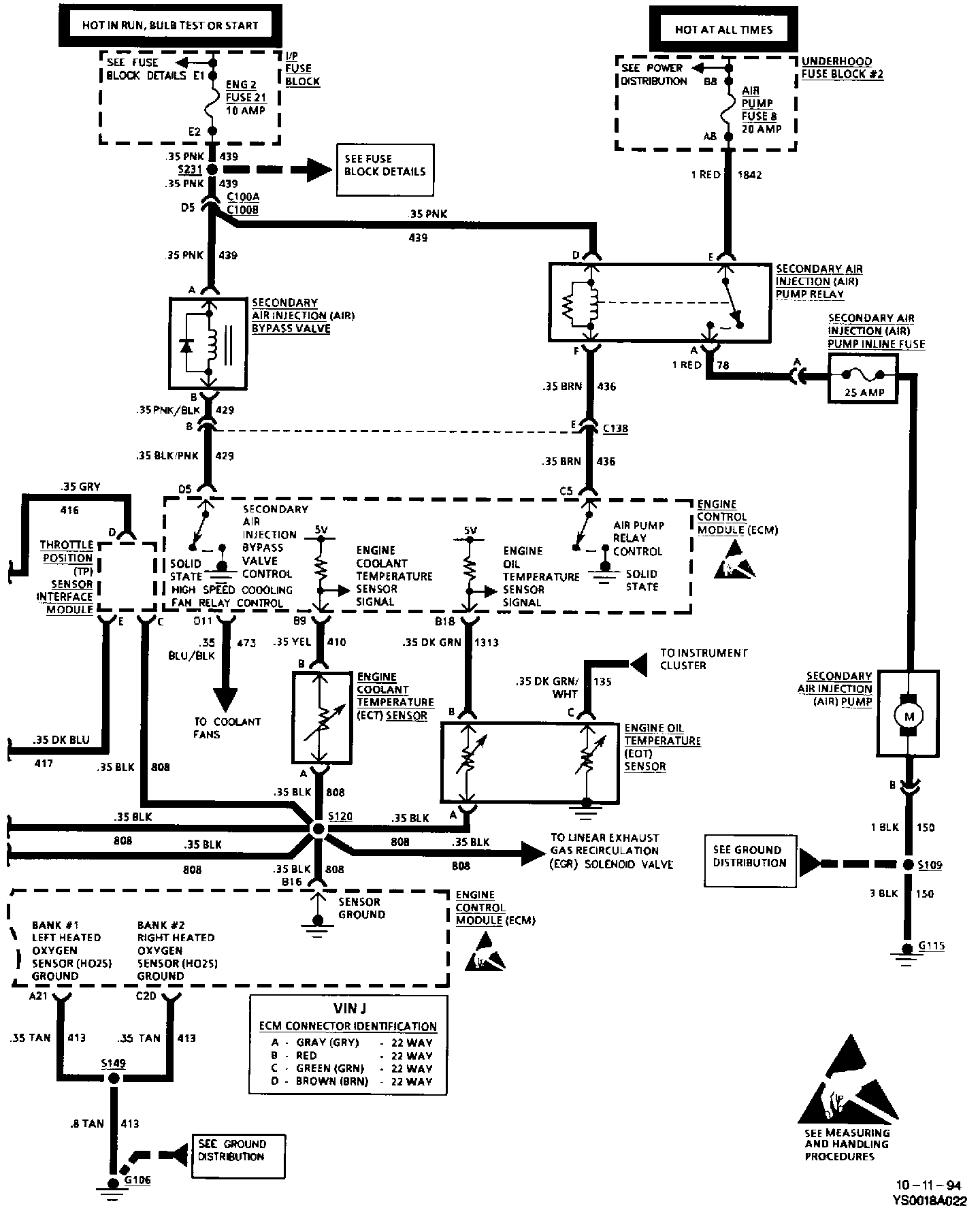

Engine Data Sensors And Emission Controls (Part 1 Of 2):

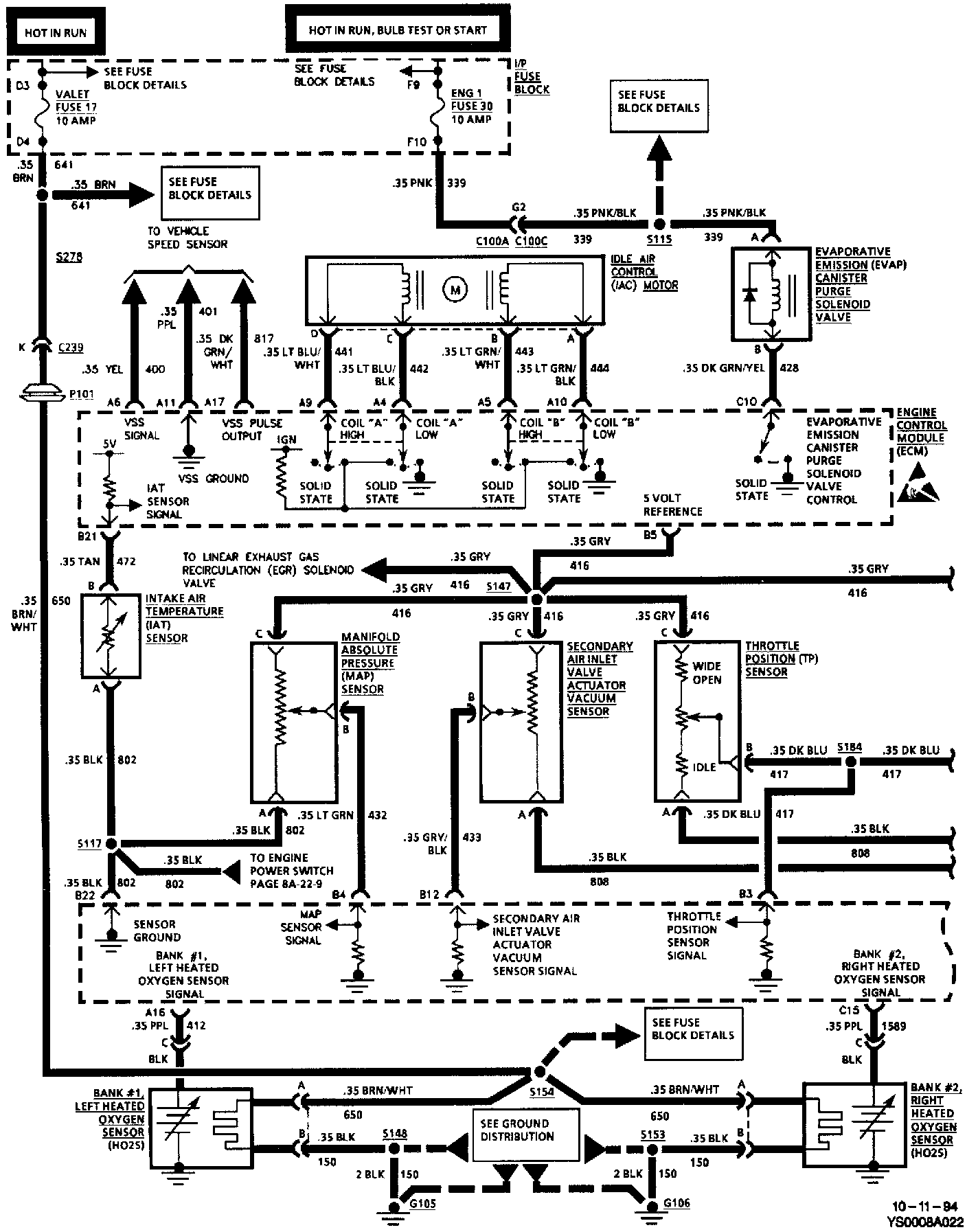

Engine Data Sensors And Emission Controls (Part 2 Of 2):
