Air Induction System

Air Intake System:

DESCRIPTION

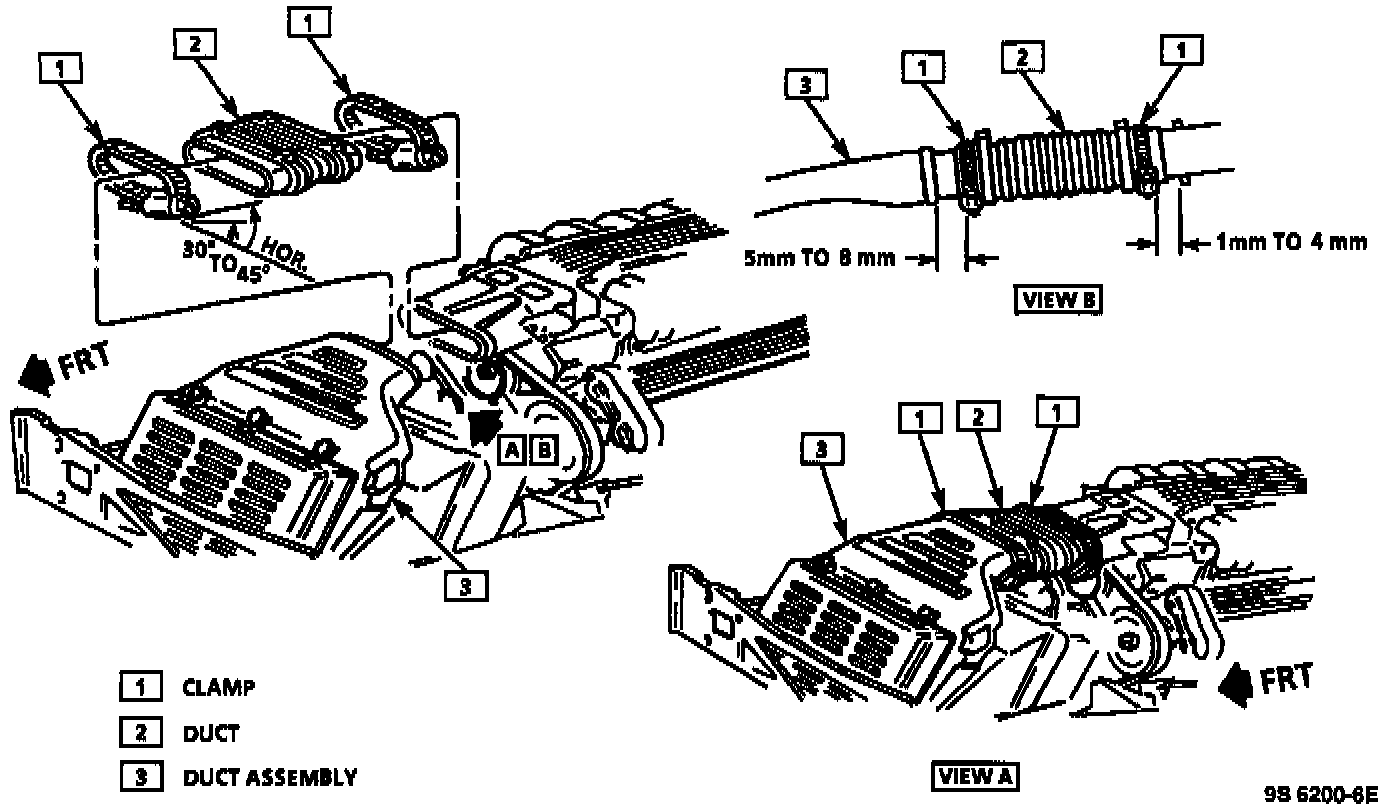

Air intake system draws outside air in past the louvered cover of the forward mounted air cleaner. The air cleaner assembly is remotely mounted. The air then enters the engine by flowing through the air intake duct to throttle body extention and throttle body into the intake plenum. The air is then directed into the intake plenum runners, through the cylinder heads and into the cylinder.
