Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1995
>>
Monte Carlo V6-204 3.4L DOHC VIN X SFI
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Daytime Running Lamp
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Diagnostic Charts
>>
Chart #1 LOW Beam & HIGH Beam Headlights Inoperative
Chart #1 LOW Beam & HIGH Beam Headlights Inoperative

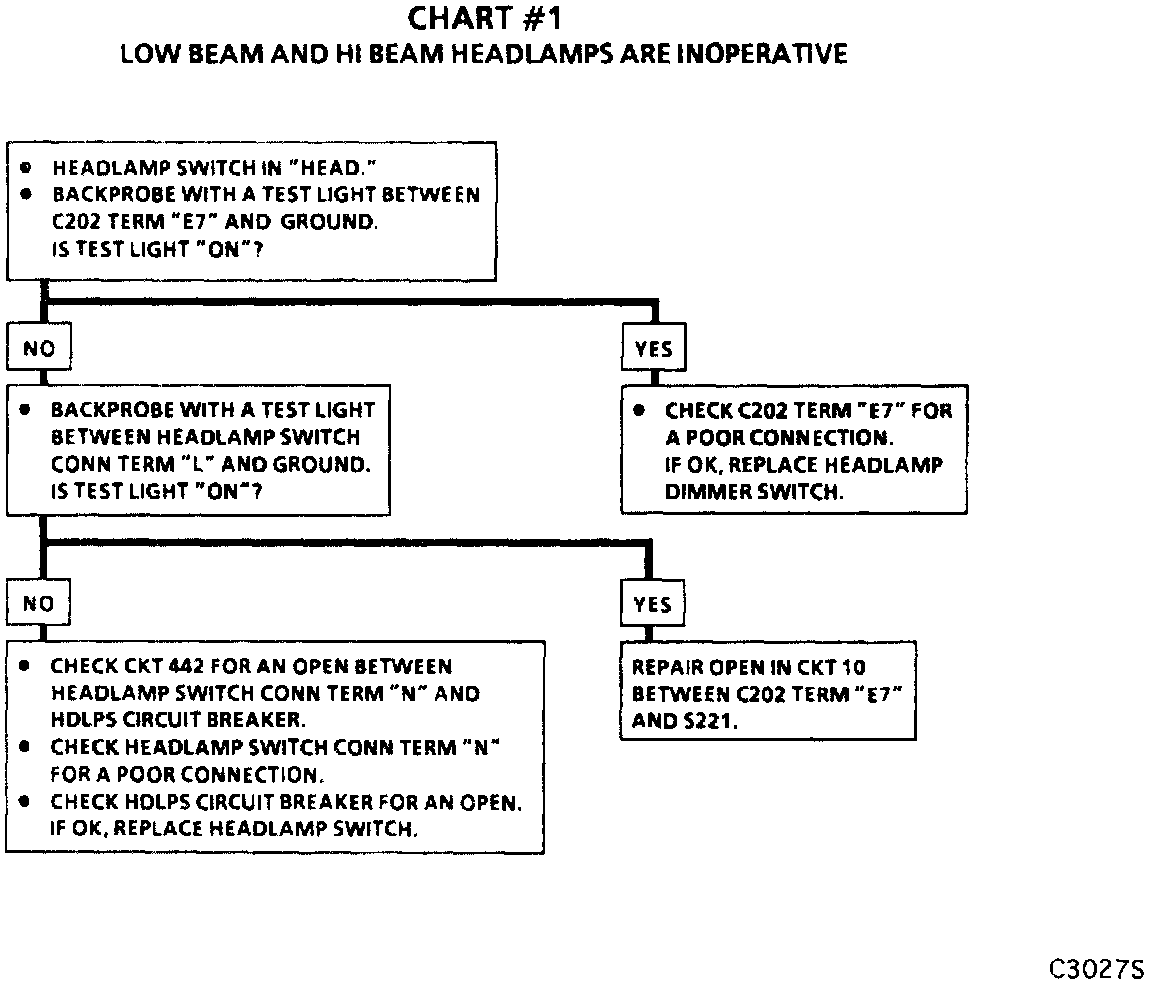

Chart #1 LOW Beam And HI Beam Headlamps Are Inoperative:
