Fuel Tank Unit

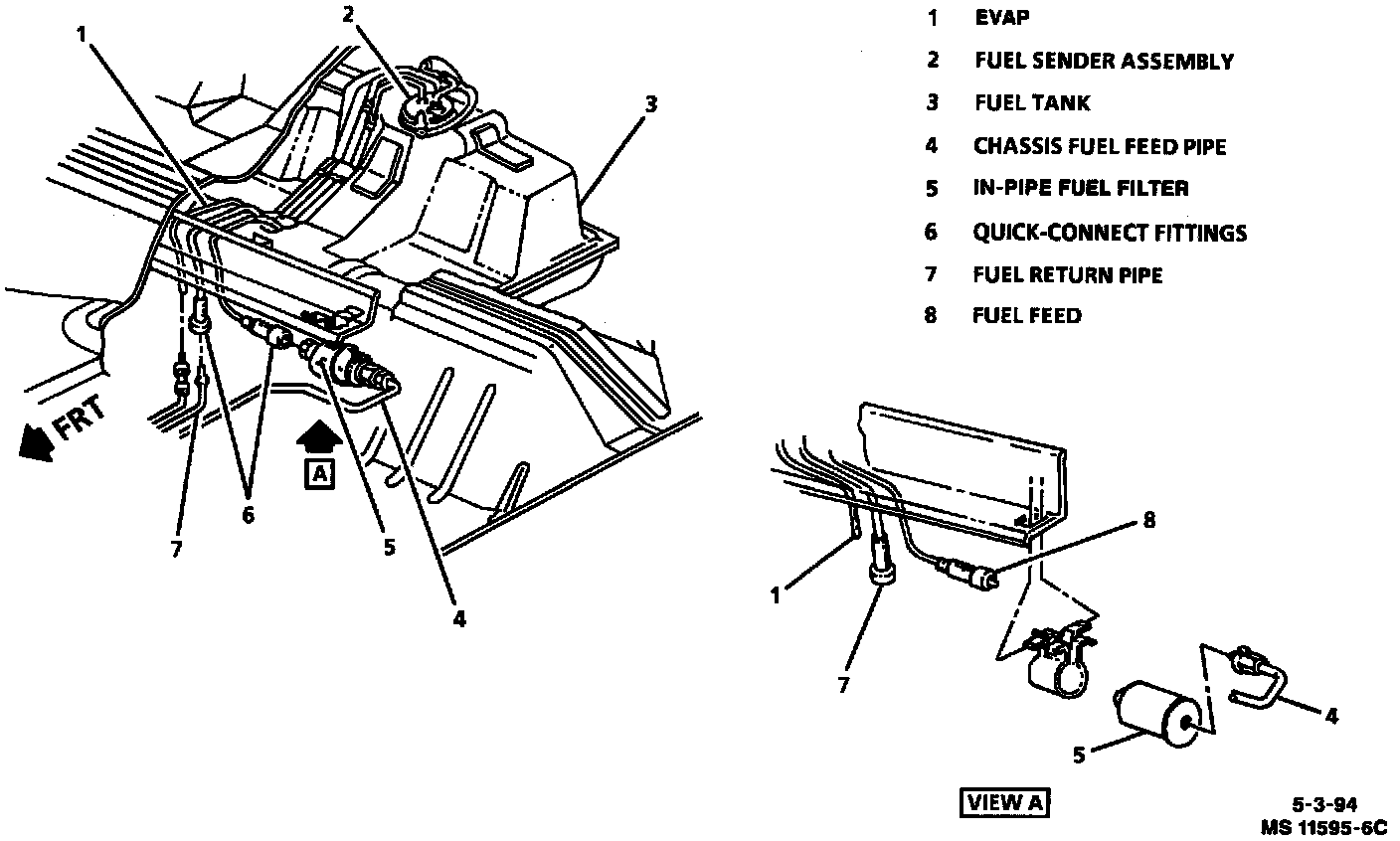

Fuel Tank Unit
Under Rear Of Vehicle:
The Filter Is Located On The Drivers Side Rear Cross Member Just Forward Of The Fuel Tank:
