System Diagram

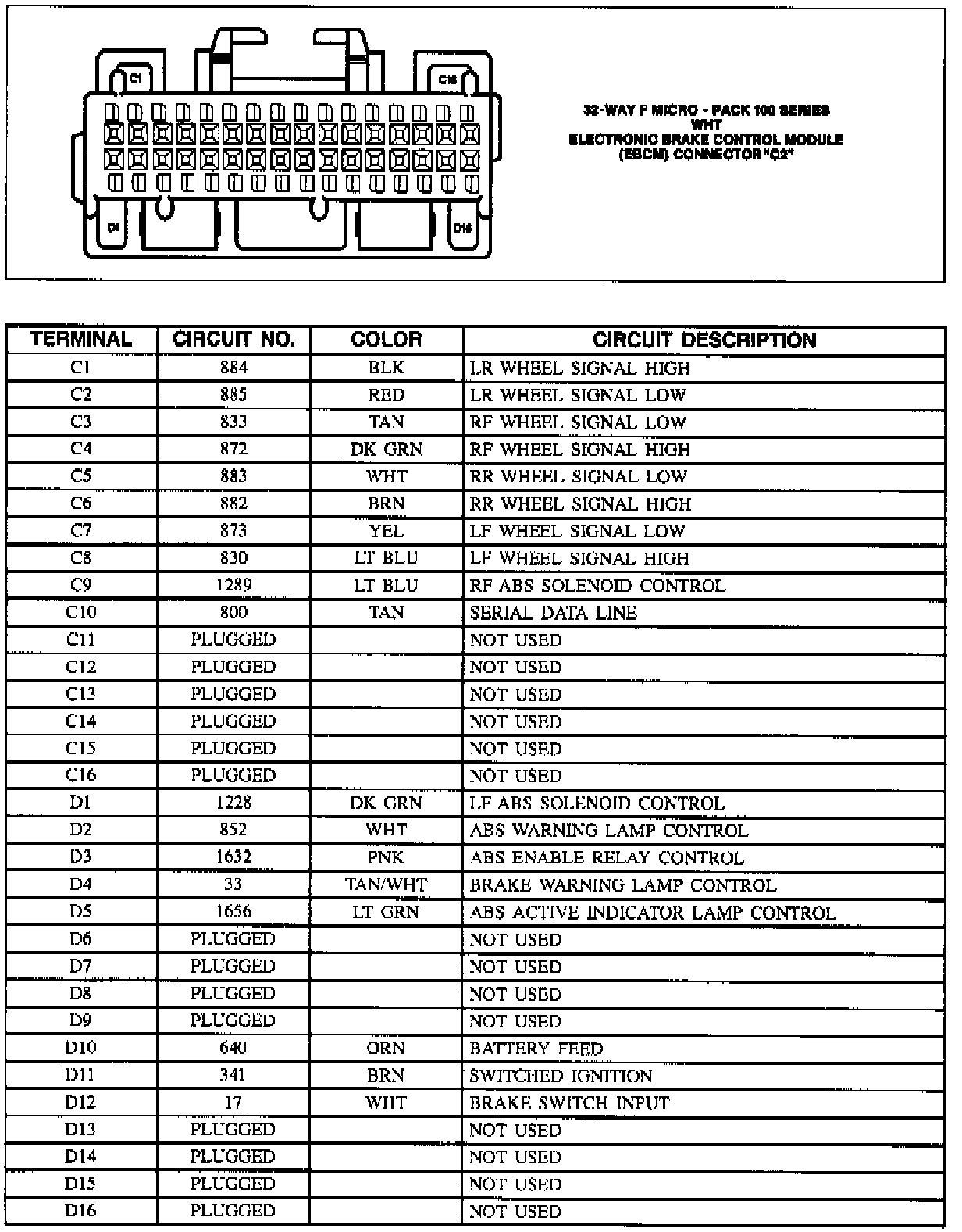

Fig. 40 EBCM Connector Face Views (Part 1 Of 2).:

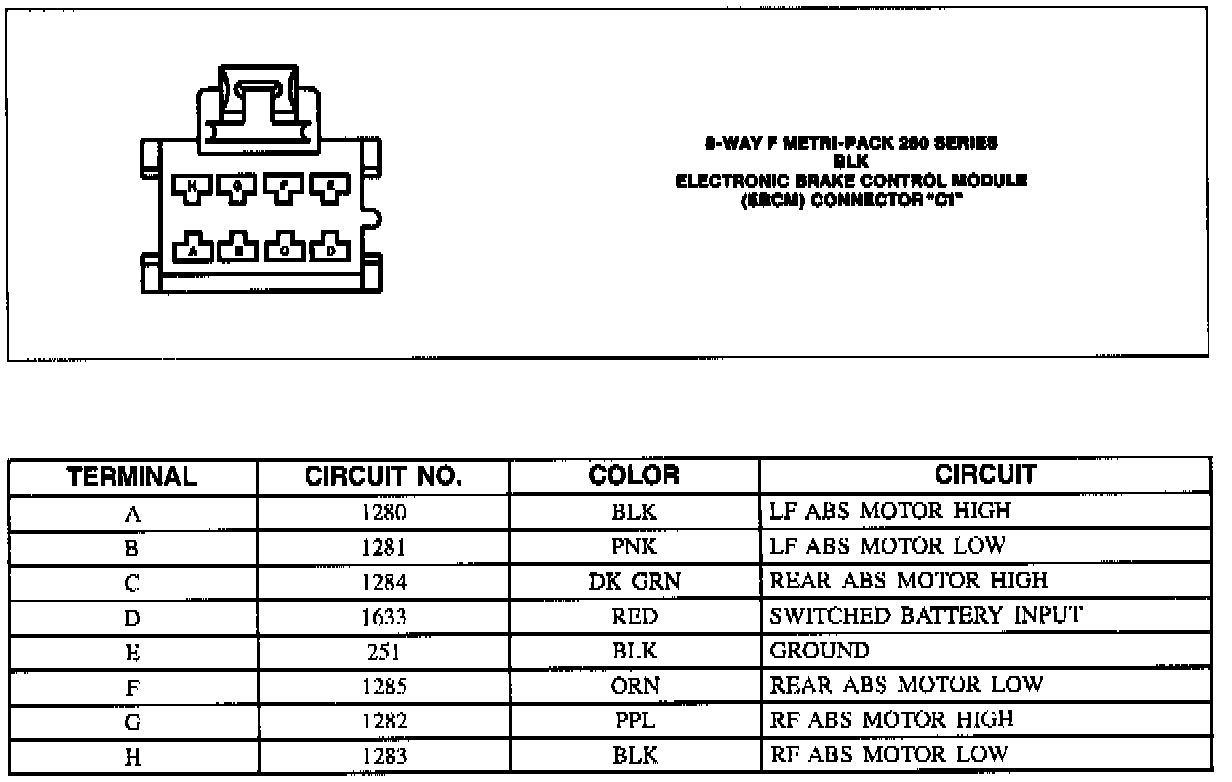

Fig. 40 EBCM Connector Face Views (Part 2 Of 2).:

When performing diagnostic procedures refer to Fig. 40 for EBCM connector terminal identification.
