System Diagram

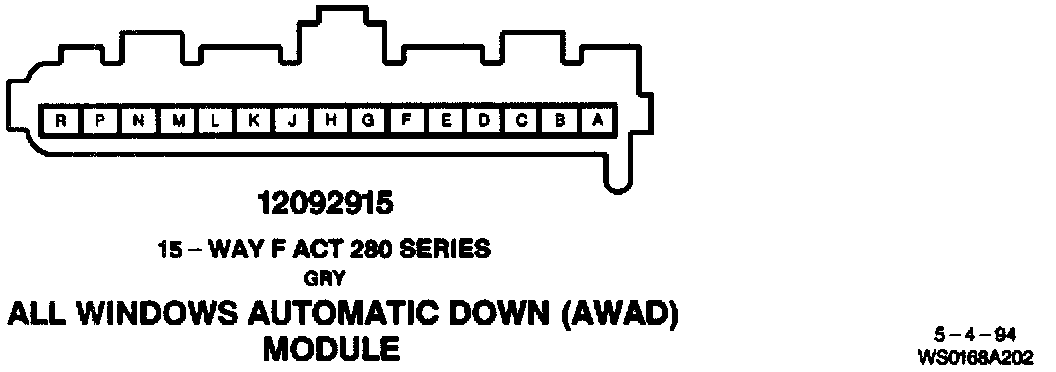

All Windows Automatic Down (AWAD) Module:

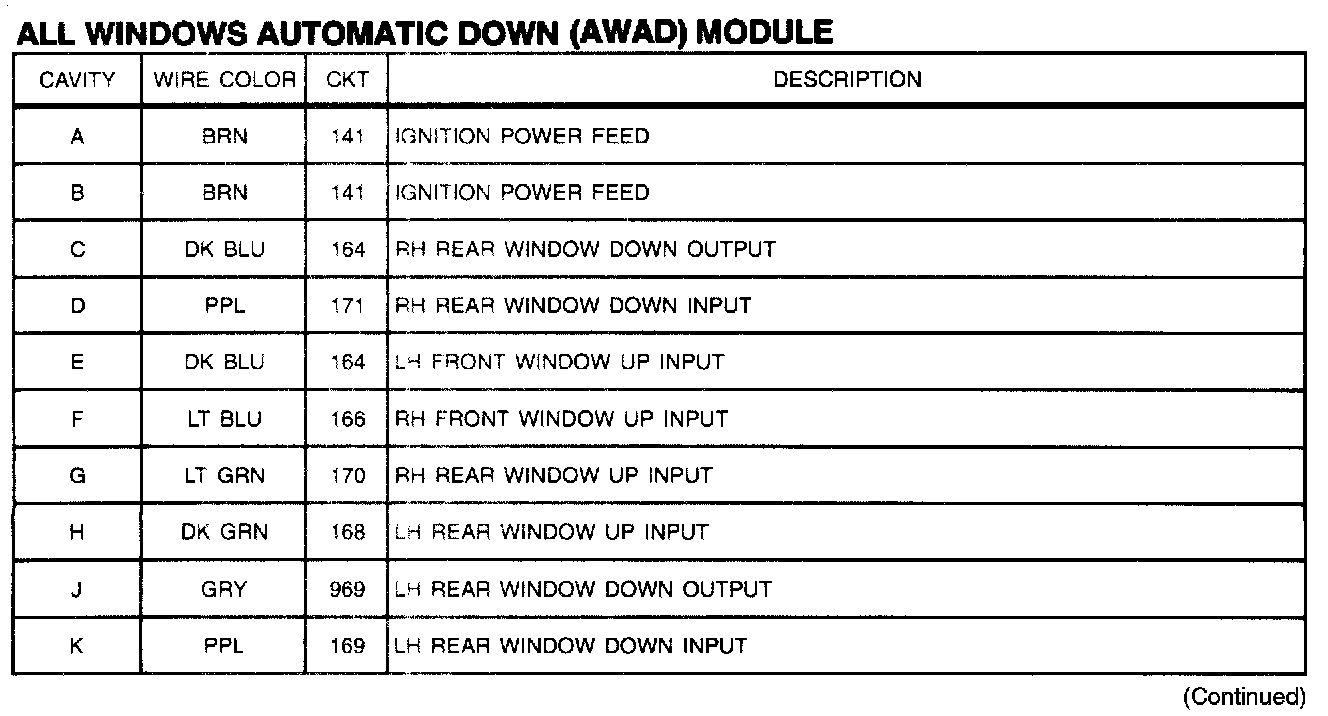

All Windows Automatic Down (AWAD) Module (Part 1 Of 2):



All Windows Automatic Down (AWAD) Module (Part 2 Of 2):
