Home >> Chevrolet >> 1995 >> Monte Carlo V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Compressor Controls (CJ2)

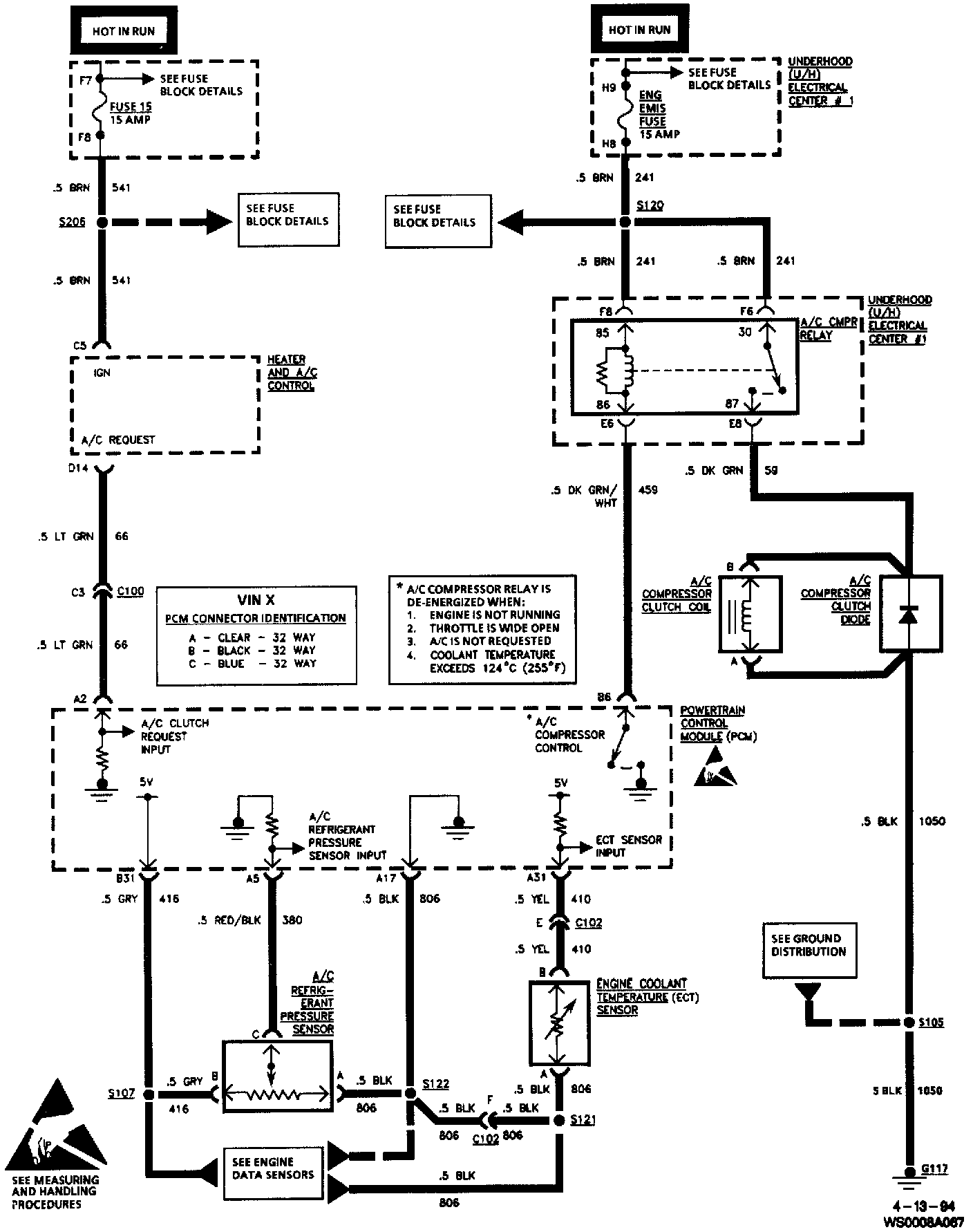

Compressor Controls (CJ2)

HVAC: Compressor Controls (CJ2):
