System Diagram

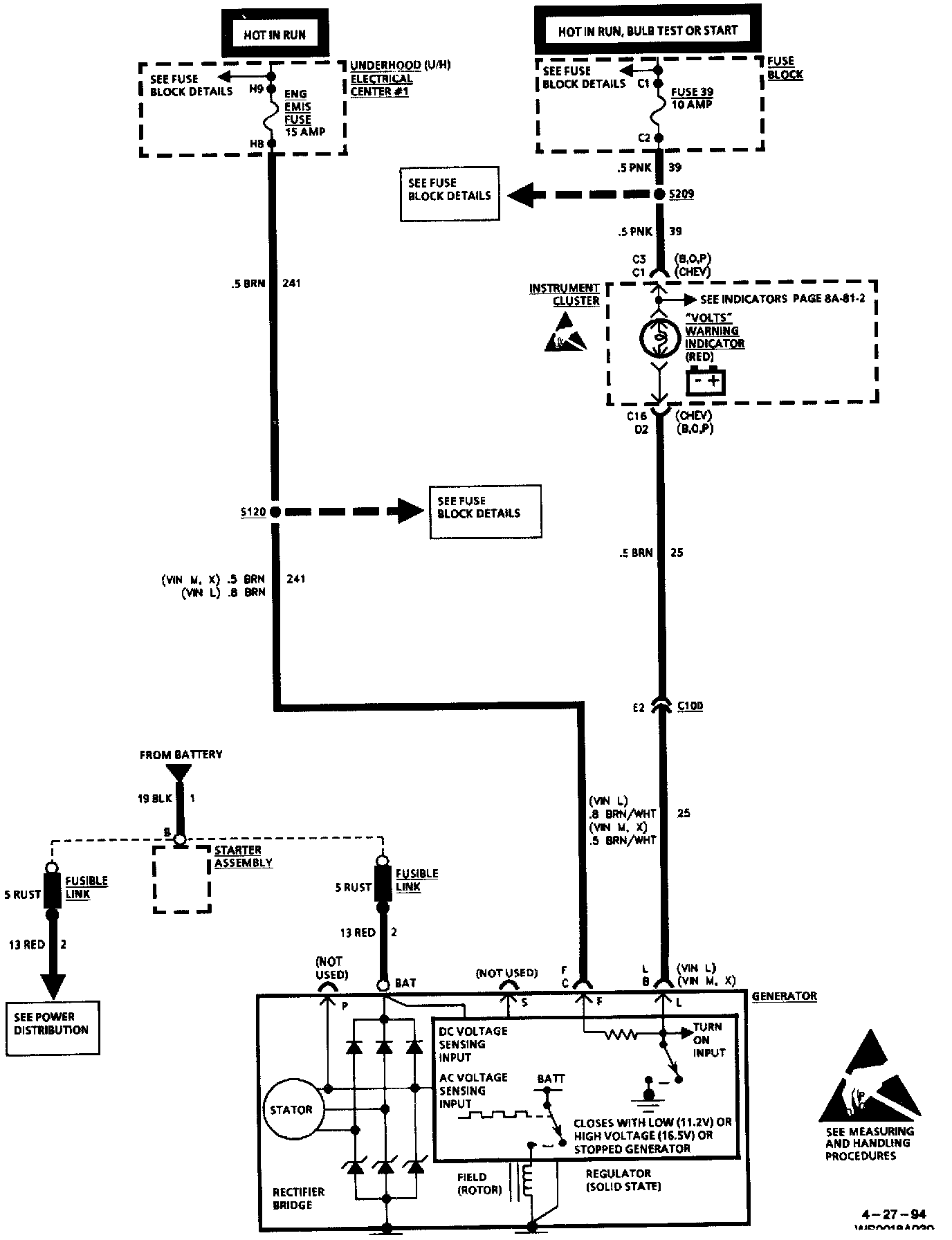

Starter And Charging System (Part 1 Of 2):



Starter And Charging System (Part 2 Of 2):
