4T60-E Automatic Transaxle

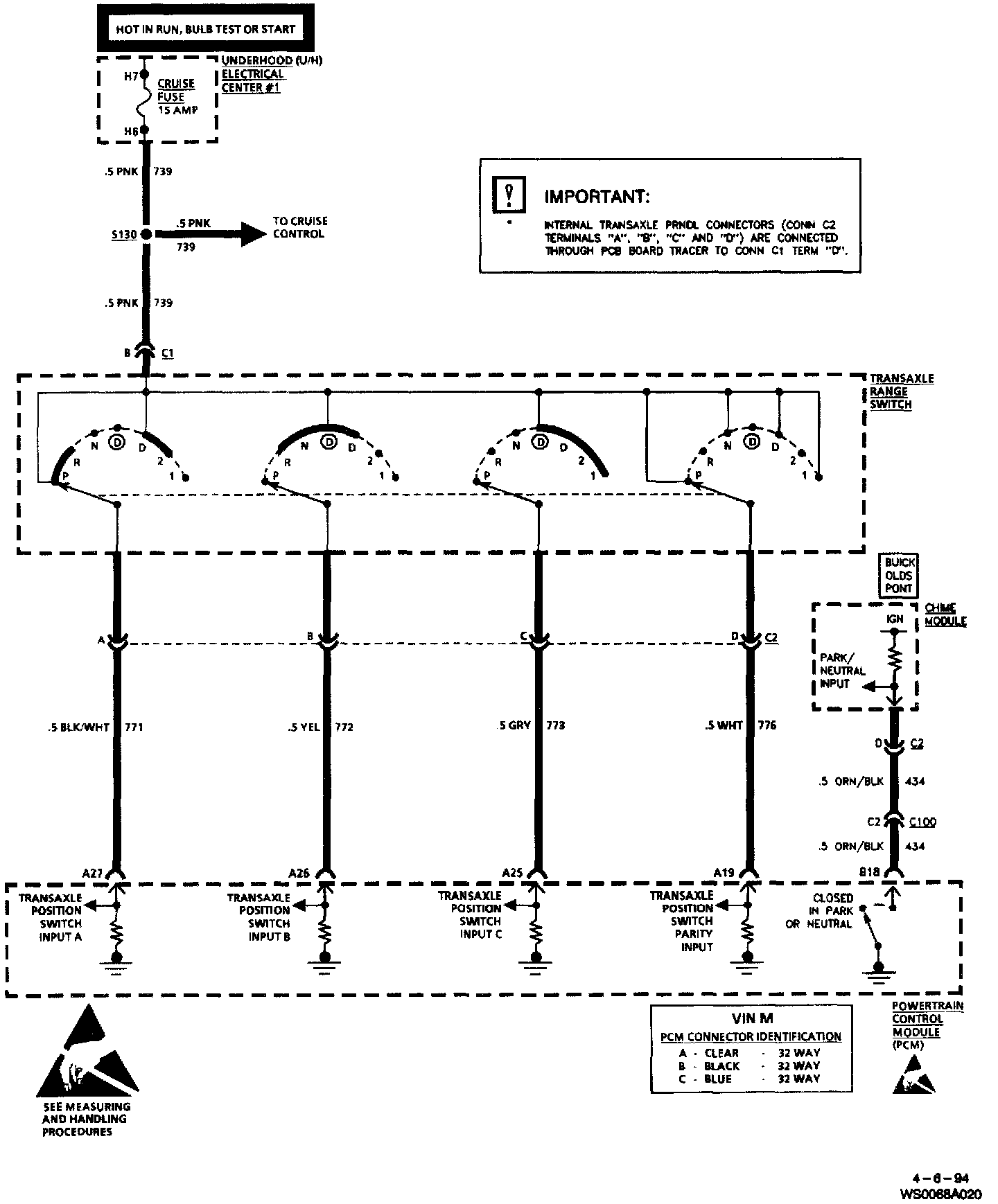

4 Speed Automatic Transaxle (4T60E) (Part 1 Of 2):

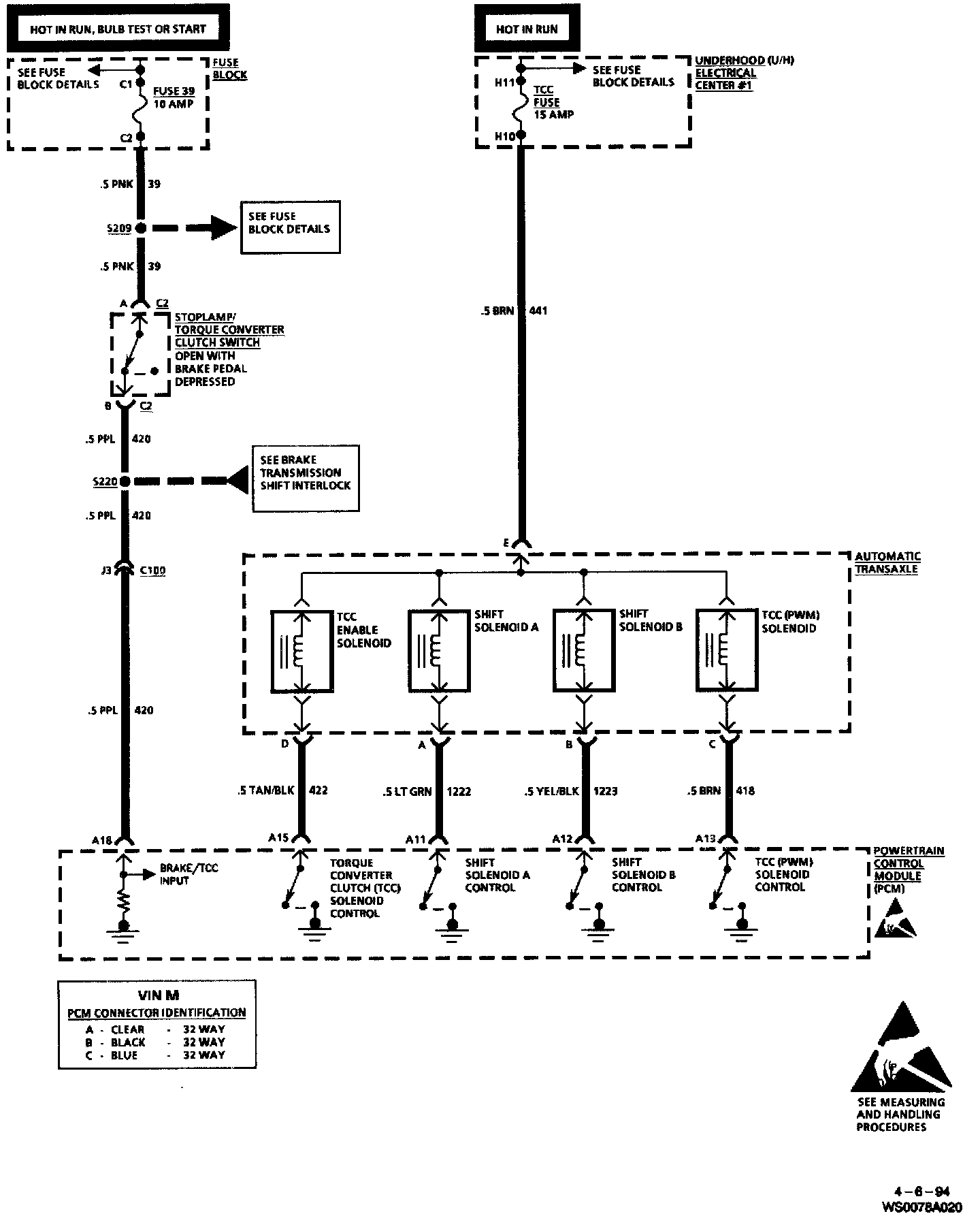

4 Speed Automatic Transaxle (4T60E) (Part 2 Of 2):

This diagram is one part of the Complete Set Of Powertrain Wiring Diagram located under Powertrain Management. Refer to this area if you need the accompanying diagrams. Electrical Diagrams
