General Repair Information

TOOL REQUIRED:

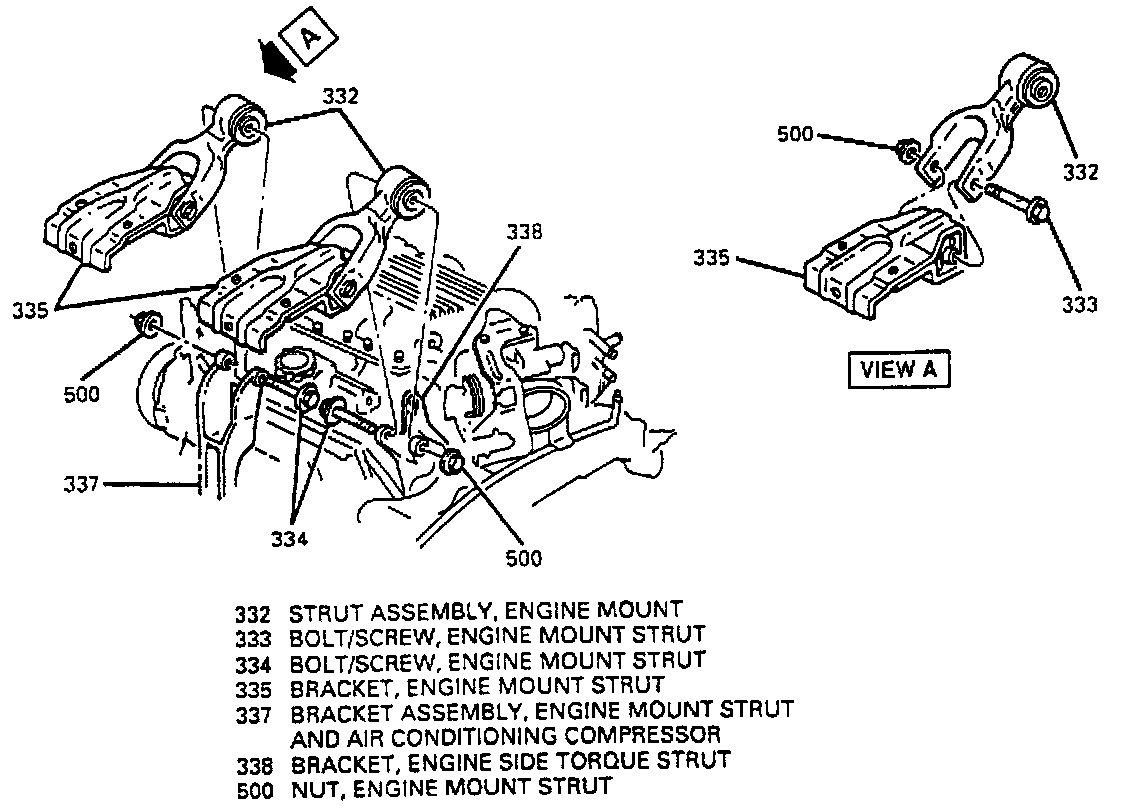

J 41131 Engine Tilter






REMOVE OR DISCONNECT
1. Air cleaner and duct assembly.
2. Put transaxle assembly in "NEUTRAL."
3. Torque strut-to-engine bracket bolts (334) and swing torque struts aside.
4. Install J 41131 and rotate engine assembly forward.

INSTALL OR CONNECT
1. Rotate engine assembly backward and remove J 41131.
2. Torque strut-to-engine bracket bolts (334).
3. Put transaxle assembly in "PARK."
4. Air cleaner and duct assembly.
