Temperature Gauge: Testing and Inspection

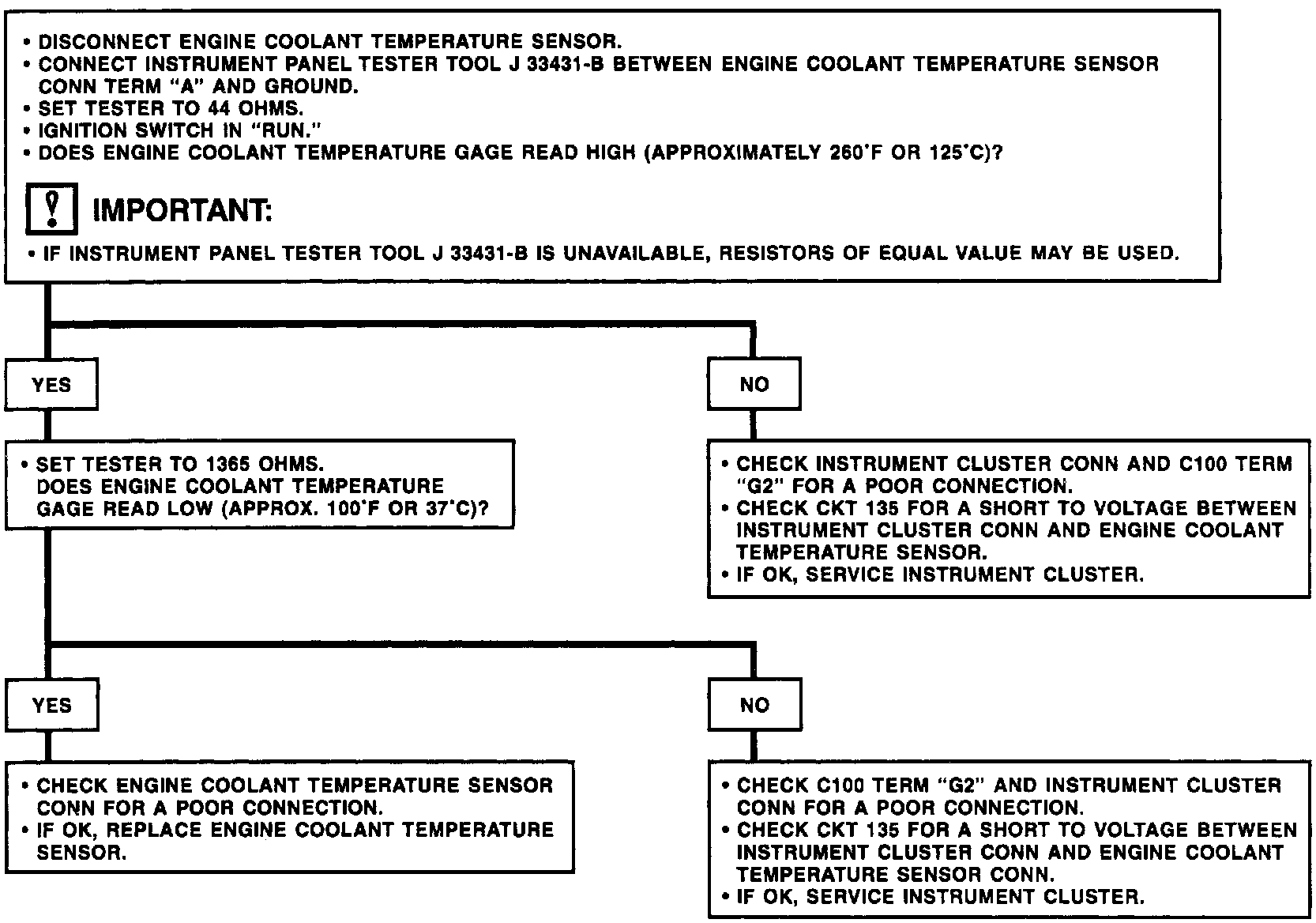

Fig. 115 Chart 2: Coolant Temperature Gauge Inoperative Or Inaccurate:
