Interior Lamps Dimming

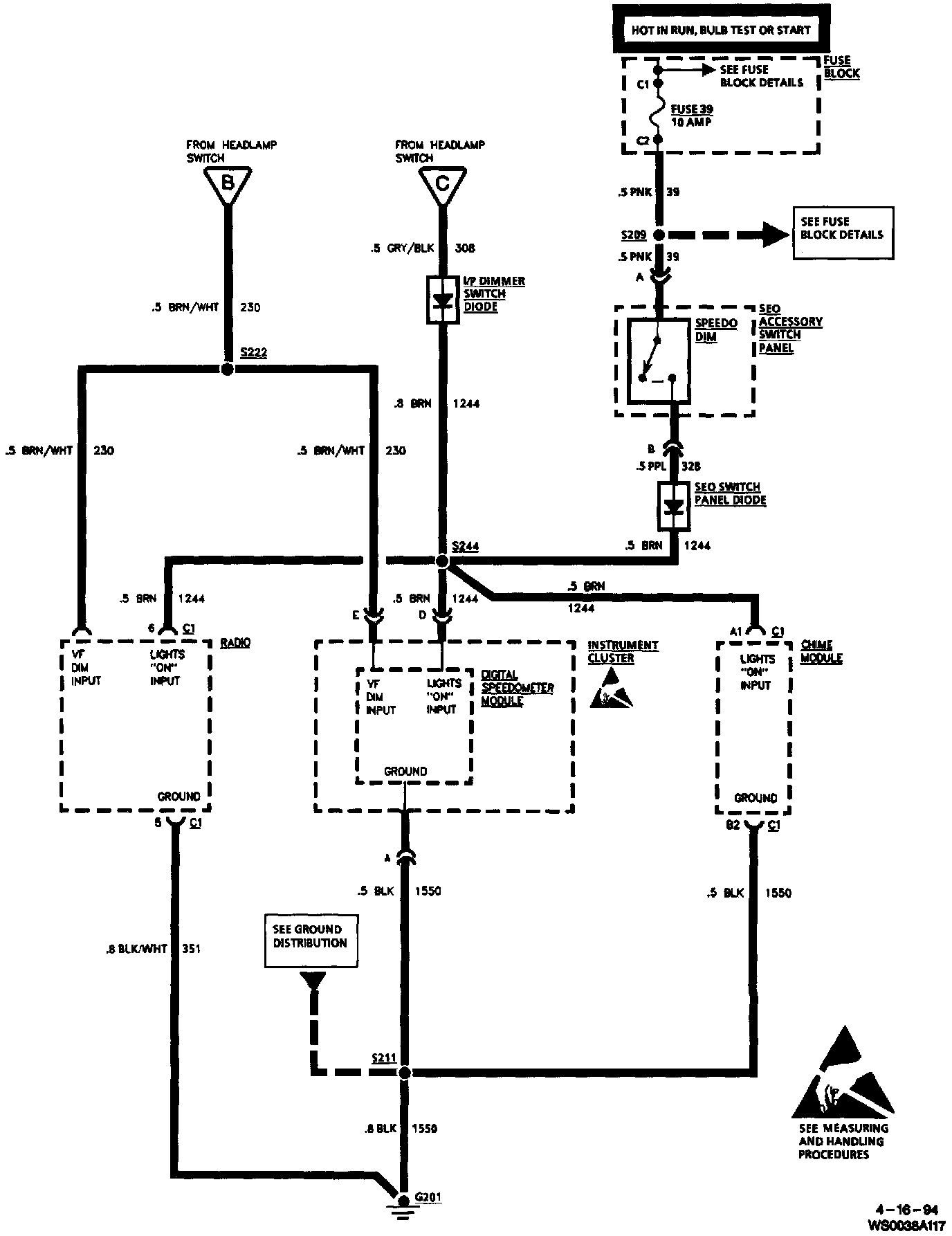

Interior Lights Dimming:




Interior Lights Dimming:




Interior Lights Dimming:





SEO Vacuum Fluorescent Dimming

SEO Vacuum Fluorescent Dimming:
