Headlamp Assembly

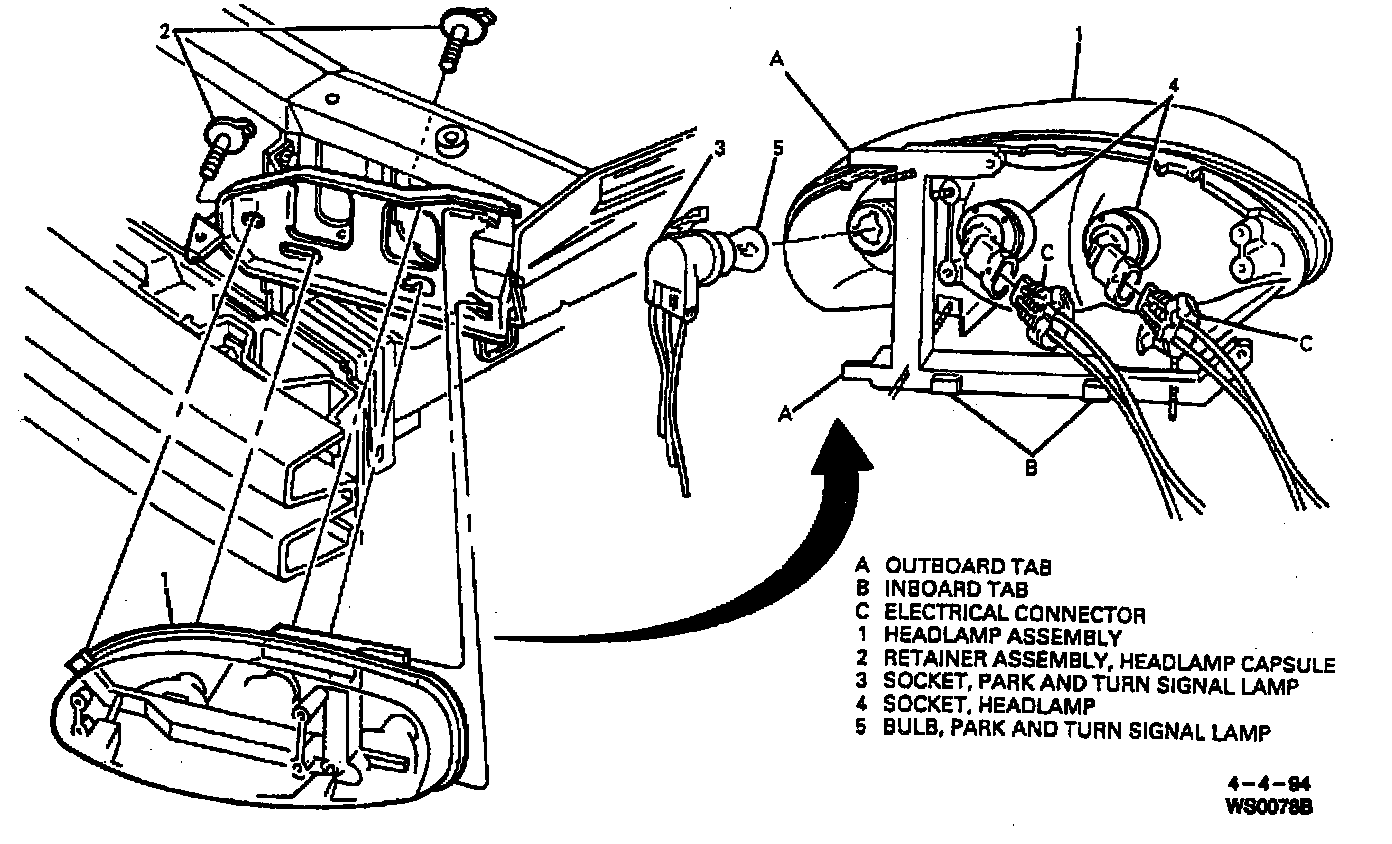

Headlamp Assembly:

Remove or Disconnect

1. Radiator air side baffle from radiator air upper baffle.
2. Upper fascia retainer.
3. Two thumbscrew retainers.

NOTICE: Do not scratch headlamp lens on fender edge during removal of headlamp assembly.

4. Headlamp assembly.
^ While pulling back fascia horn, slide assembly inboard to disengage upper and lower outboard tabs.
5. Electrical connectors.
6. Socket assemblies from headlamp assembly.

Install or Connect

1. Socket assemblies to headlamp assembly.

Important
^ Route electrical connectors and harness between headlamp assembly and mounting bracket. The park and turn signal bulb, connector and harness do not go through the bracket.

2. Electrical connectors.

NOTICE: Do not scratch headlamp lens on fender edge during installation of headlamp assembly and mounting bracket. The park and turn signal bulb, connector and harness do NOT go through the bracket.

3. Headlamp assembly.
A. While pulling back fascia horn, slide assembly outboard to engage upper and lower outboard tabs.
B. Rotate headlamp into bracket and insert tow inboard tabs.
C. Leave approximately a 6 mm (1/4 inch) gap between fender and headlamp assembly.
4. Two thumbscrew retainers.

Tighten
^ Retainers to 3.5 N.m (31 lb. in.).

5. Upper fascia retainer.
6. Radiator air side baffle to radiator air upper baffle.

Adjust
^ Headlamp aim.
