Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
Fuse Block: Application and ID

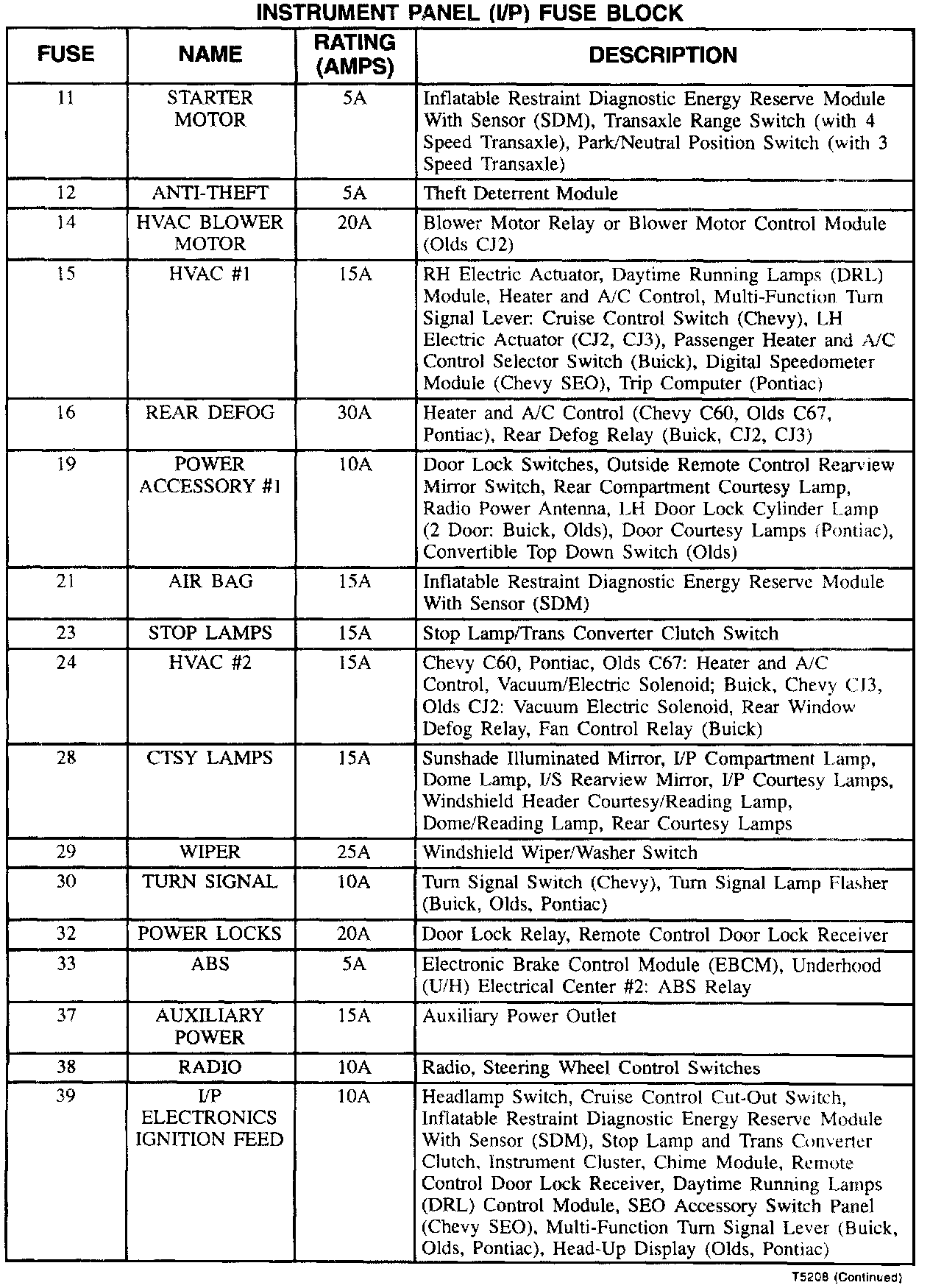

Instrument Panel (I/P) Fuse Block:
Instrument Panel (I/P) Fuse Block (Part 1 Of 3):
Instrument Panel (I/P) Fuse Block (Part 2 Of 3):
Instrument Panel (I/P) Fuse Block (Part 3 Of 3):
