Data Sensors

Engine Data Sensors (Part 1 Of 2):



Engine Data Sensors (Part 2 Of 2):

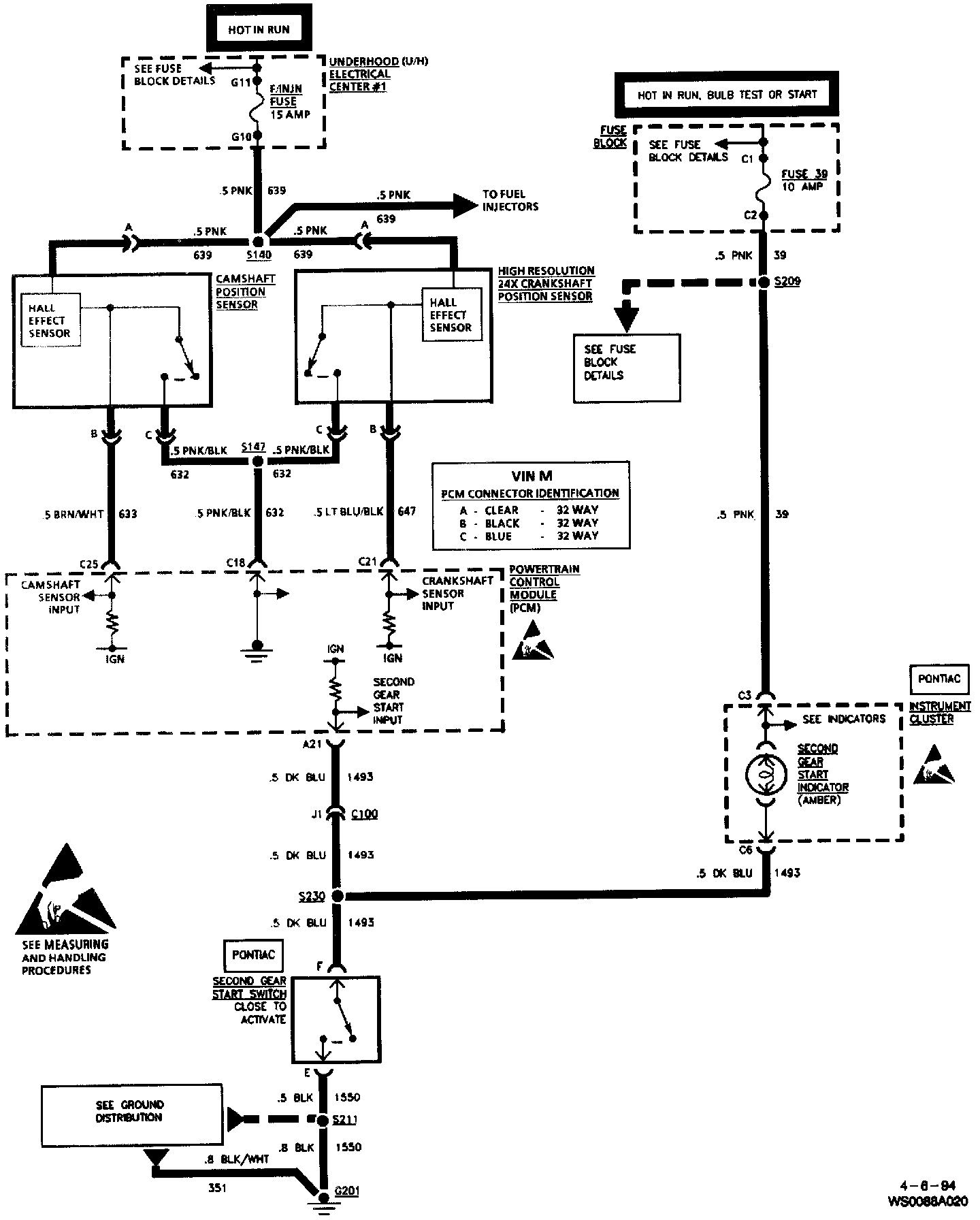

Camshaft And 24X Crankshaft Schematic:
