Cruise Control - Revised Diagnostic Chart #1

File In Section: 8 - Chassis/Body Electrical

Bulletin No.: 73-81-19

Date: February, 1997

SERVICE MANUAL UPDATE

Subject:
Section 8A-34 - Revised Diagnostic Chart # 1

Models:
1994-95 Buick Regal
1995 Chevrolet Lumina, Monte Carlo
1994-95 Oldsmobile Cutlass Supreme
1994-95 Pontiac Grand Prix

This bulletin is being issued to revise diagnostic Chart # 1 in Section 8A-34 of the applicable Service Manuals as follows:

1994 Olds/Pontiac Service Manuals

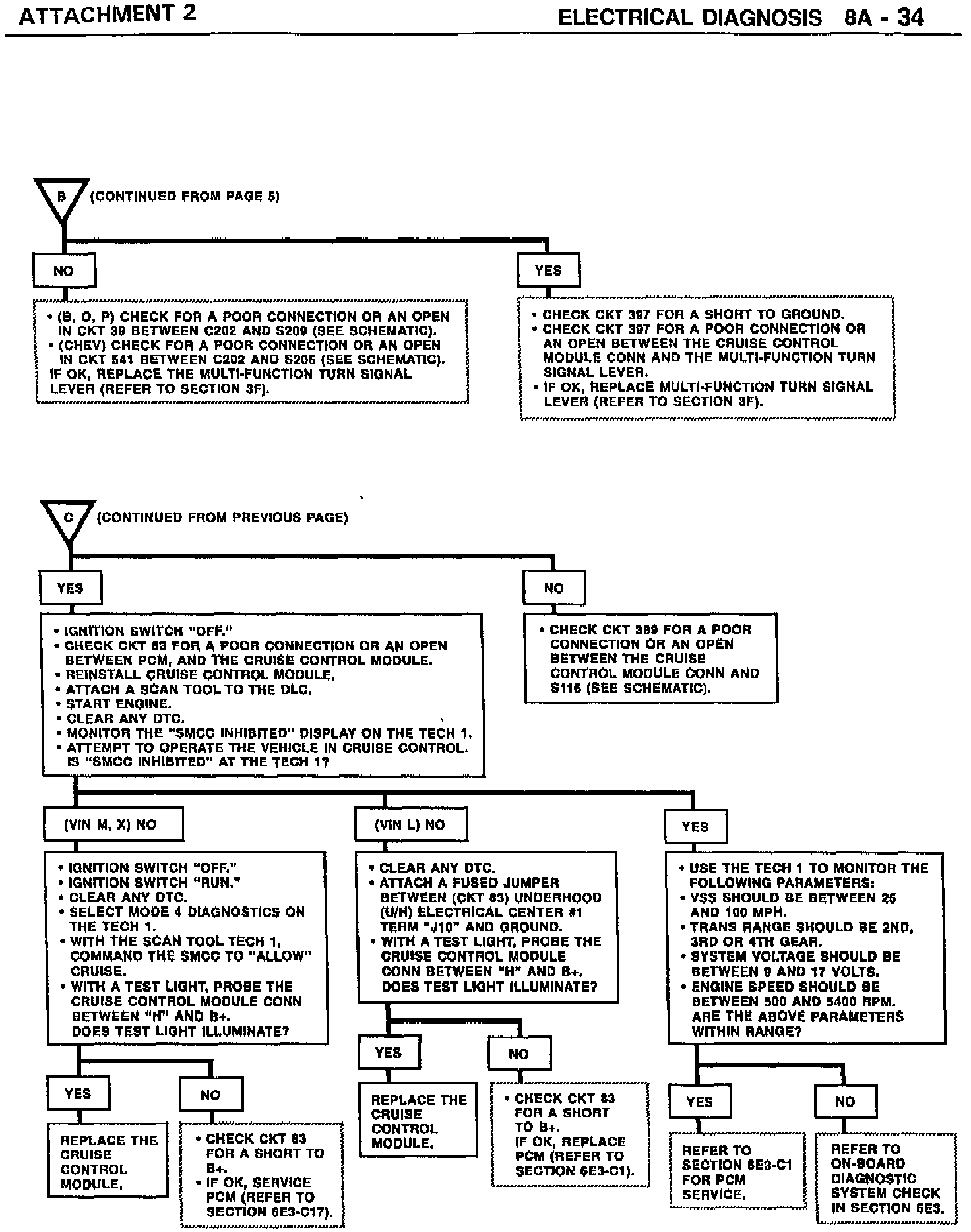

Attachment 1 should replace the page of the diagnostic Chart # 1 shown on page 8A-34-5.

1994 Buick Service Manual





Attachment 2 should replace the page of the diagnostic Chart # 1 shown on page 8A-34-5.

1995 W-Car (Buick/Chev/Olds/Pontiac)

Attachment 2 should replace the page of the diagnostic Chart # 1 shown on page 8A-34-7.
