Seat Back, Rear - Removal

Group Ref.: 10 - Body

Bulletin No.: 431604

Date: August, 1994

INFORMATION

SUBJECT:
REAR SEAT BACK REMOVAL

MODEL:
1995 CHEVROLET MONTE CARLO COUPE WITH OPTION AM9

Some early built vehicles with folding rear seat back cushions (option AM9) have the two (2) center retaining tabs bent over the seat back wire for better retention.

SERVICE PROCEDURE:

To remove rear seat back cushion assembly on these cars:

NOTE:
Make sure to straighten tabs before back cushion removal.

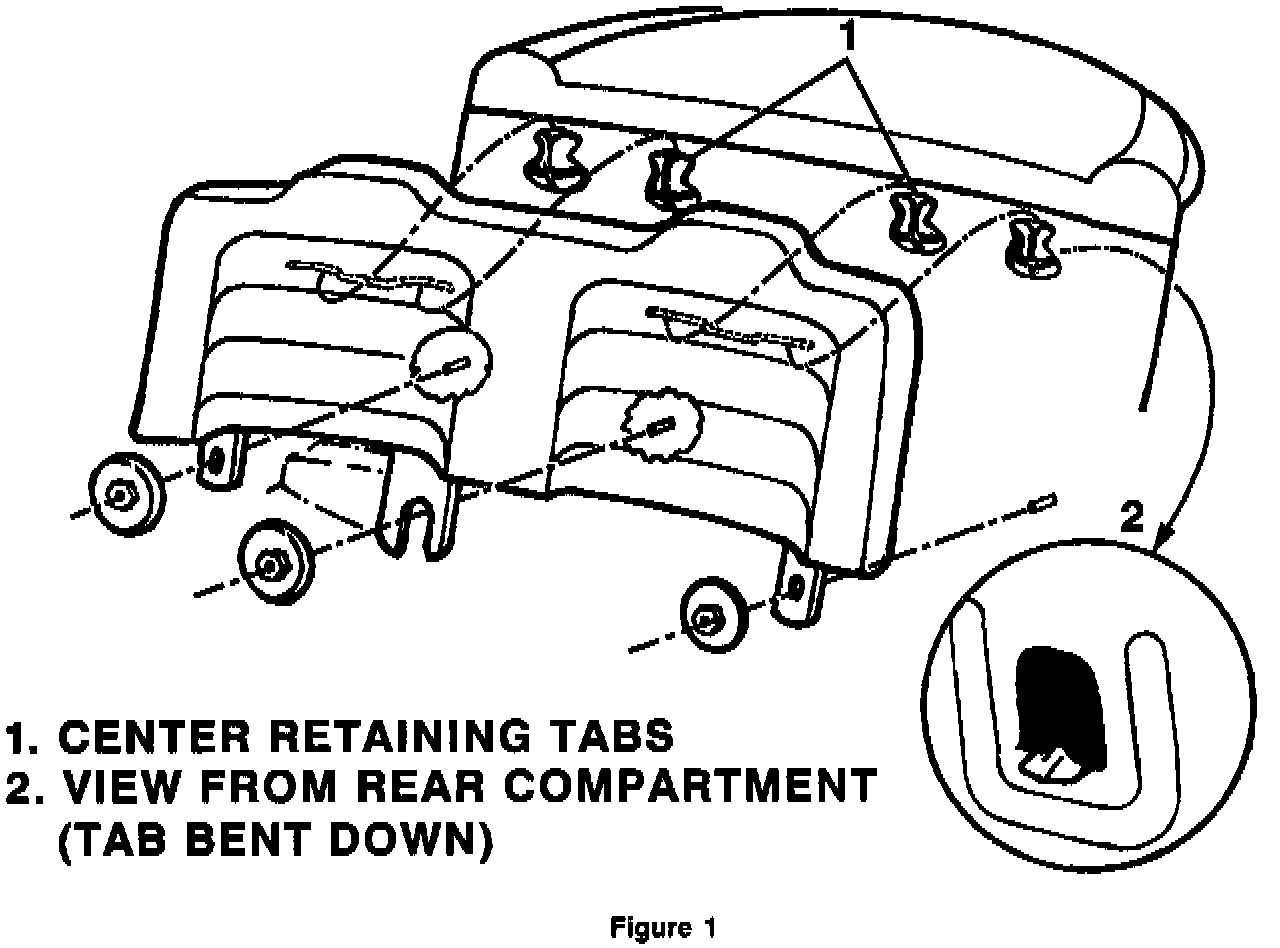

1. Fold rear backs down and locate center retaining tabs by reaching through opening at top center and bend tabs up. (See Figure 1.)

2. Follow Service Manual, Section 10-10, procedure to complete removal.

3. When reinstalling, be sure to bend tabs down for proper retention.

WARRANTY INFORMATION:
For vehicles repaired under warranty, use:

Labor Operation Labor Time

C7278 0.6 Hr.
