Trunk Lamp Bulb - May Contact Luggage

File In Section: 8-Chassis/Body Electrical

Bulletin No.: 43-82-07

Date: December, 1994

Subject:
Trunk Lamp Bulb may Contact Luggage (Replace Bulb)

Models:
1995 Chevrolet Lumina, Monte Carlo

Condition
The trunk lamp bulb may contact the luggage, if loaded to the level of the bulb. In some instances, the contact could cause damage to the luggage, or could melt the plastic lamp housing slightly.

Cause
The bulb extends past the edge of the housing. The bulb was replaced with a smaller one in production, about September 1, 1994.

Correction
Replace the bulb with a new bulb, P/N 9425542. Repair any damage as needed.

Parts Information
Parts are currently available from GMSPO.

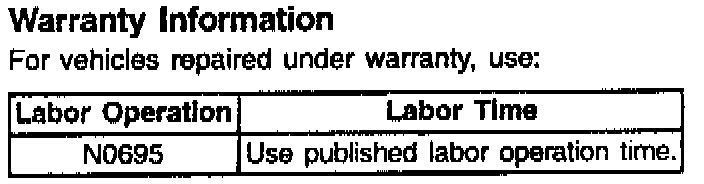

Warranty Information
