Blower Motor Resistor: Service and Repair

Remove or Disconnect

1. Key from ignition to assure that switch will remain in "OFF."
2. Right instrument panel insulator.
3. Pull carpet away from heater module.

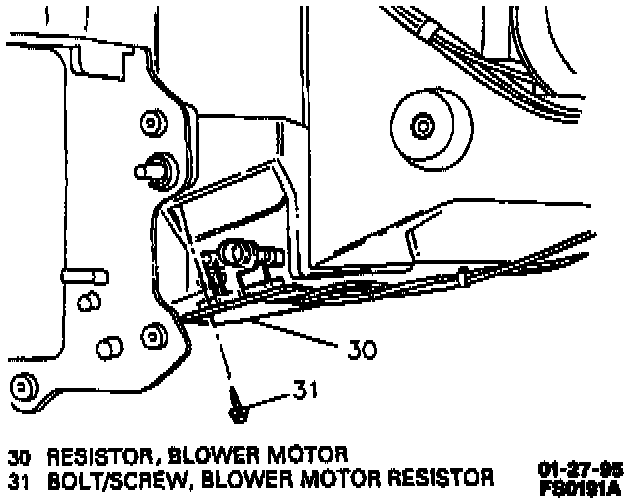

4. Blower motor resistor bolt/screw (31).
5. Blower motor resistor (30).

Install or Connect

1. Blower motor resistor (30) and blower motor resistor bolt/screw (31).

Tighten
^ Blower motor resistor bolt/screw (31) to 2 N.m (18 lb. in.).
2. Carpet.
3. Right instrument panel insulator.
4. Test blower motor operation at all four speeds.
