Instrument Panel Cluster Replacement

Remove or Disconnect
1. Instrument panel upper trim panel
2. Instrument panel cluster trim plate bezel.

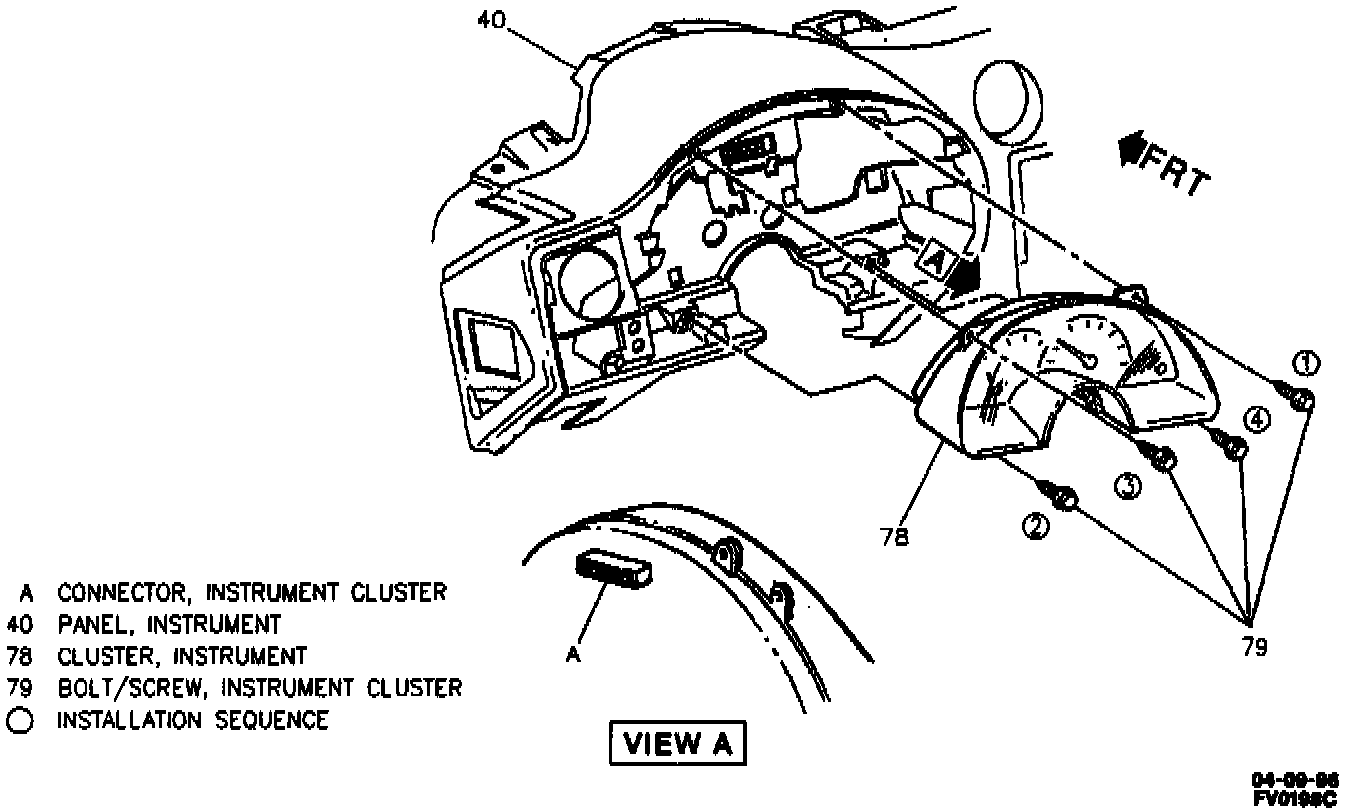

3. Instrument cluster bolts/screws (79).
4. Instrument cluster (78).
^ When removing the instrument cluster, gently pull the cluster straight out to disconnect the cluster electrical connector on the cluster.

Install or Connect

NOTICE: Refer to Service Precautions / Vehicle Damage Warnings / Fastener Requirements.

1. Instrument cluster (78).
2. Instrument cluster bolts/screws (79).
Tighten
^ Instrument cluster bolts/screws (79) to 2.2 Nm (19 lb in).
3. Instrument panel cluster trim plate bezel.
4. Instrument panel upper trim panel.
