Camaro V8-350 5.7L VIN P SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
With Traction Control
With Traction Control

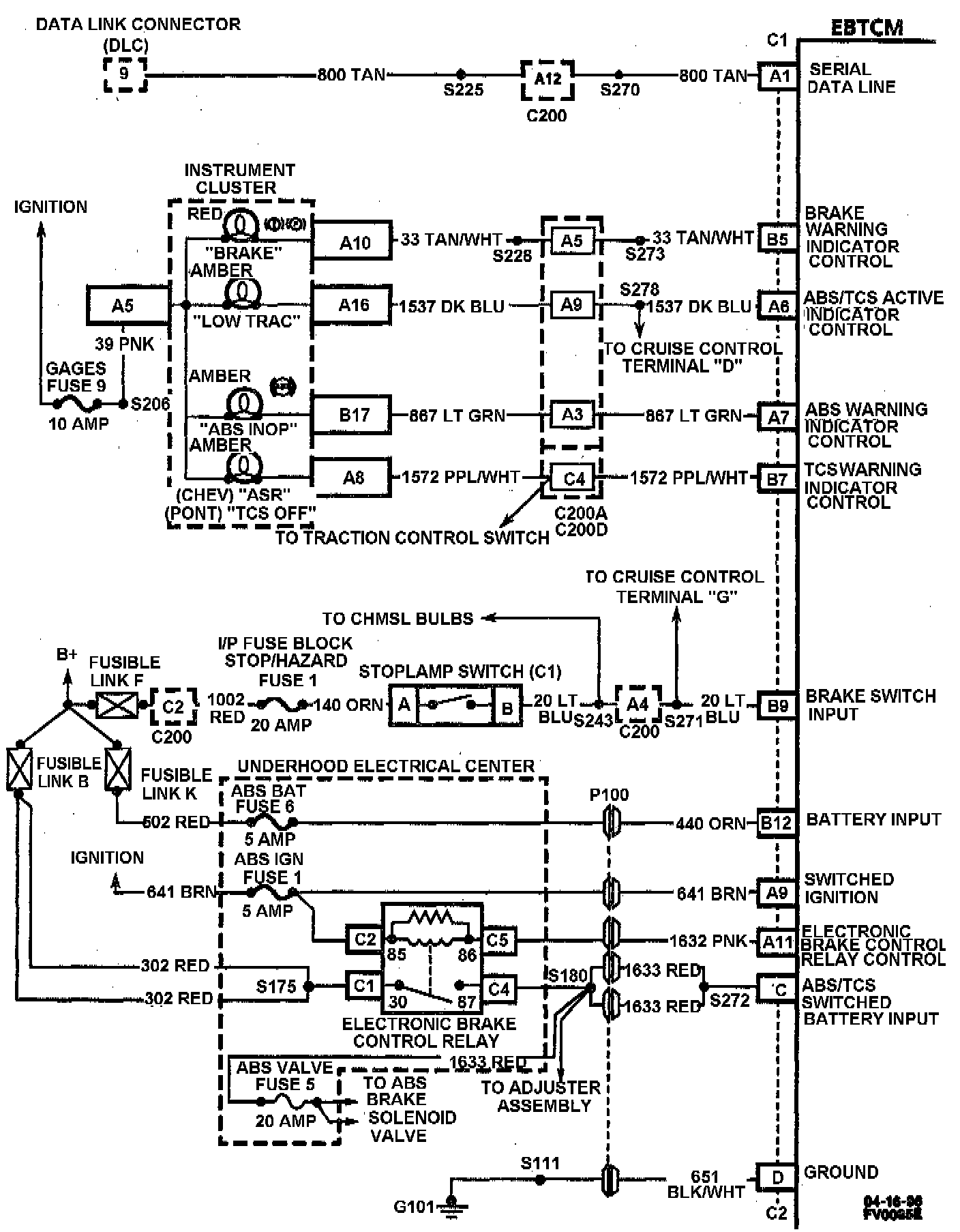

Wiring Diagram (Part 1 Of 3):
Wiring Diagram (Part 2 Of 3):
Wiring Diagram (Part 3 Of 3):
