Fastener Tightening Specifications - Camshaft Bearing Cap
Fastener Tightening Specifications - Camshaft Bearing Cap

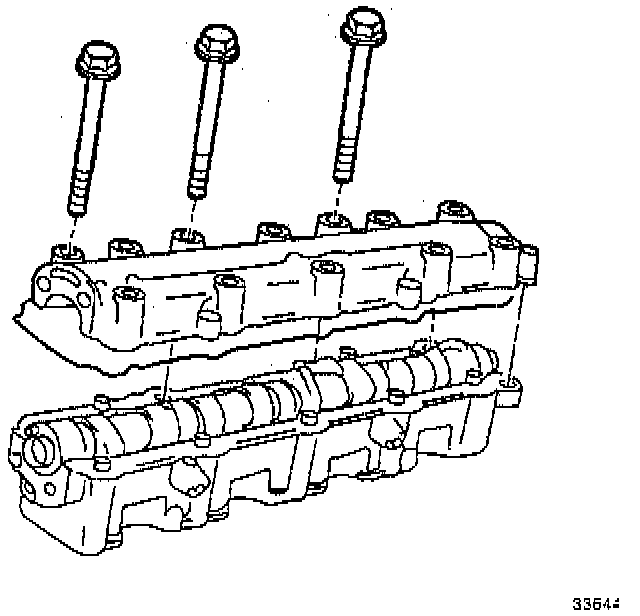

Tighten the
camshaft housing
cover to camshaft housing bolts to
15 Nm (11 lb ft) + 30 degrees
.
Rotate the bolts the amount of degrees specified in sequence.
