Fastener Tightening Specifications - Intake Manifold

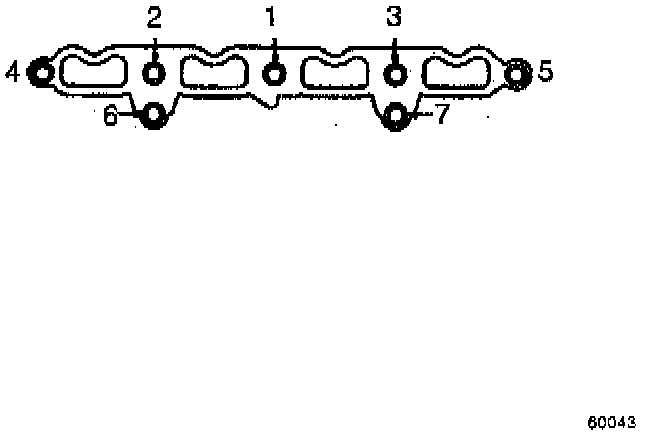

Intake Manifold Bolts/Nuts: 24 Nm (18 lb ft)
Intake Manifold to the Cylinder Head Studs: 11 Nm (97 lb in)
Throttle Body to the Intake Manifold: 10 Nm (89 lb in)

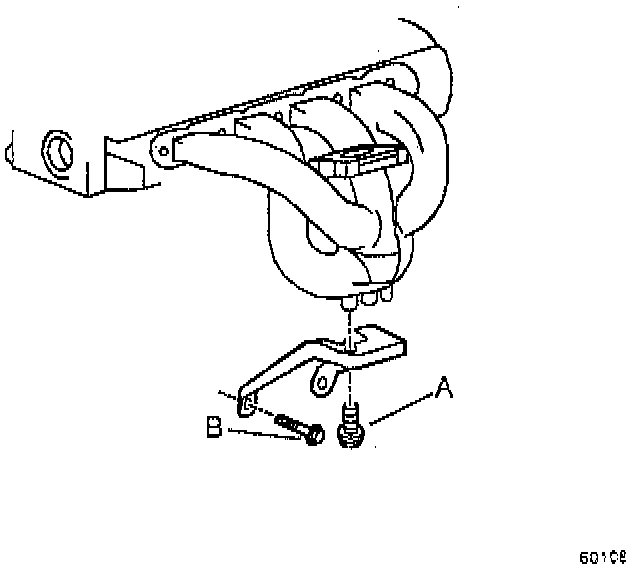

INTAKE MANIFOLD BRACKET

NOTE: Finger start all bolts.

^ Tighten bolt (A) to 24 Nm (18 lb ft).
^ Tighten bolt (B) to 26 Nm (19 lb ft).
